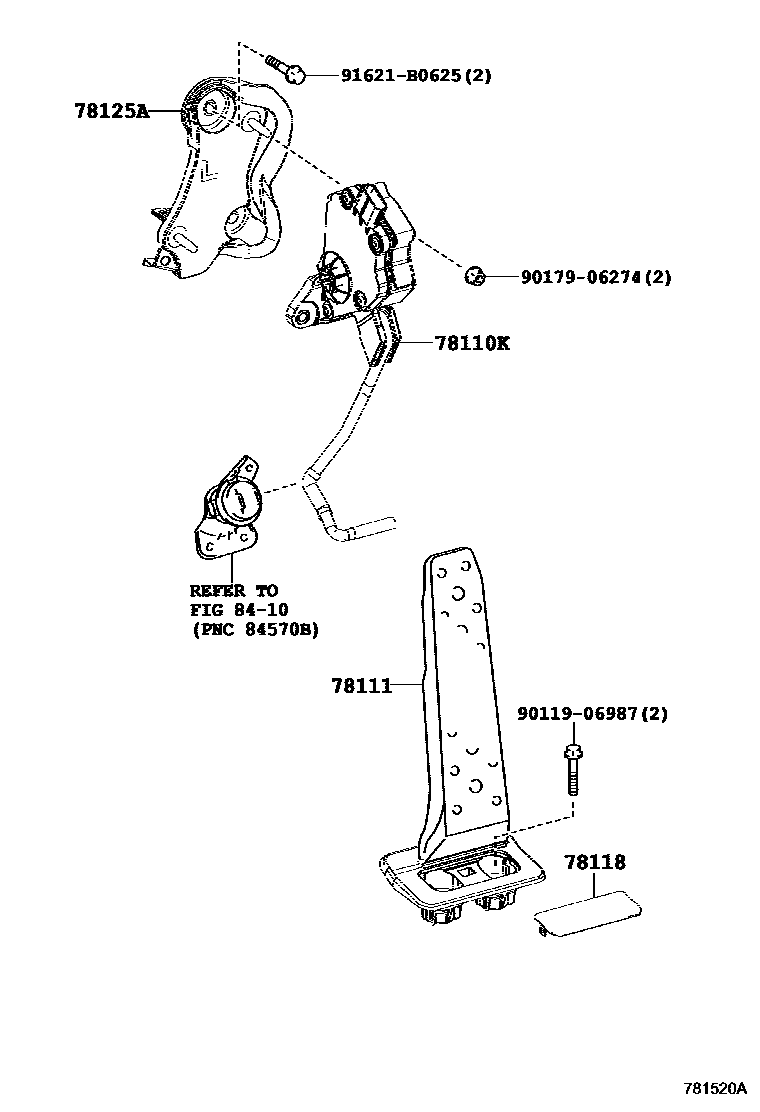

Toyota LEXUS GS F — ACCELERATOR LINK

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-30151iURL10201510-201601

sub78110-30170

main78110-30170iURL10201602-202007

78111PEDAL, ACCELERATOR

main78101-30061iURL10201510-202007

78118PAD, ACCELERATOR PEDAL

main78117-30030iURL10201510-202007

78125ABRACKET, ACCELERATOR PEDAL ROD, NO.2

main78125-30081iURL10201510-202007

8410

9011906987

main90119-06987

9017906274

main90179-06274

91621B0625

main91621-B0625

8 parts on this diagram · 1 diagram in section
