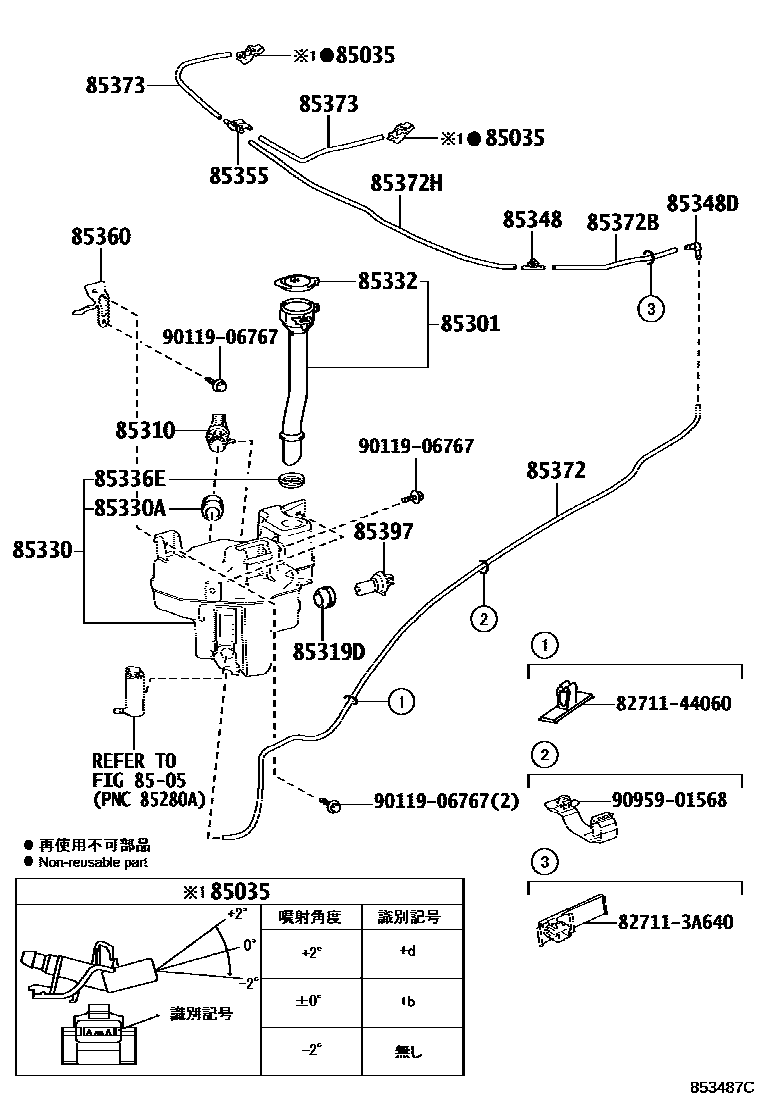

Toyota LEXUS GS F — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220iURL10201510-202007

main85381-30230iURL10201510-202007

main85381-30240iURL10201510-202007

8505

85301INLET SUB-ASSY, WASHER

main85301-24070iURL10201510-202007

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47010iURL10201510-202007

85319DPACKING, FRONT WASHER

main85319-33230iURL10201510-202007

85330JAR ASSY, WINDSHIELD WASHER

main85355-24040iURL10201510-202007

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iURL10201510-202007

85332CAP, WINDSHIELD WASHER JAR

main85316-24170iURL10201510-202007

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iURL10201510-202007

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-17050iURL10201510-202007

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200iURL10201510-202007

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iURL10201510-202007

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-24090iURL10201510-202007

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-62141iURL10201510-202007

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-62068iURL10201510-202007

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iURL10201510-202007

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iURL10201510-202007

85397SWITCH ASSY,LEVEL WARNING

main85397-30400iURL10201510-202007

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

8271144060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-44060

9011906767

main90119-06767

9095901568

main90959-01568

22 parts on this diagram · 1 diagram in section
