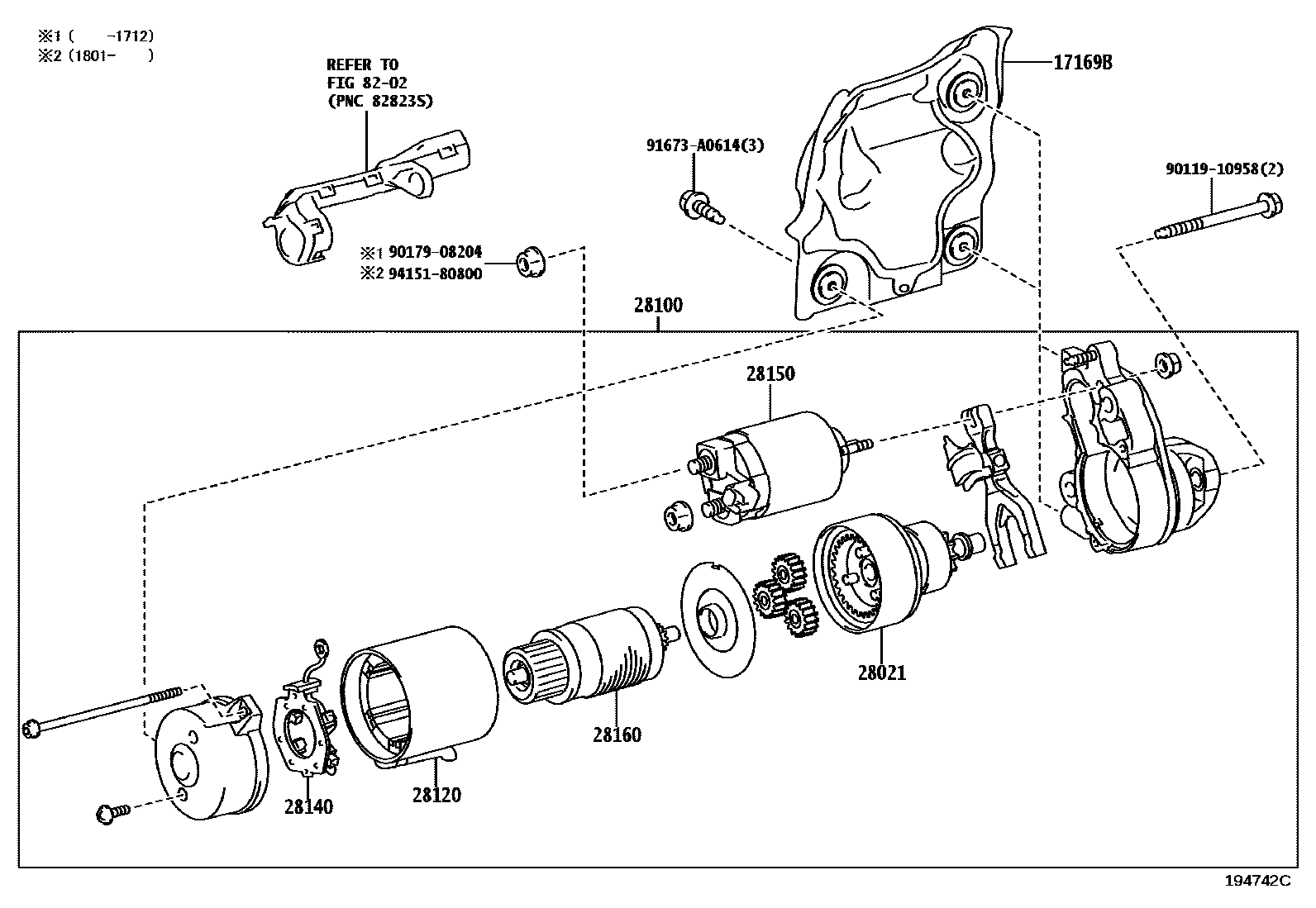

Toyota LEXUS GS F — STARTER

17169BINSULATOR, EXHAUST MANIFOLD HEAT, NO.3

main17169-38030i2URGSE..URL10201510-202007

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-38070i2URGSE..URL10201510-201701

main28021-75210i2URGSE..URL10201701-202007

28100STARTER ASSY

main28100-38091i2URGSE..URL10201510-202007

28120YOKE ASSY, STARTER

main28120-38090i2URGSE..URL10201510-202007

28140HOLDER ASSY, STARTER BRUSH

main28140-38070i2URGSE..URL10201510-202007

28150SWITCH ASSY, MAGNET STARTER

main28150-38061i2URGSE..URL10201510-202007

28160ARMATURE ASSY, STARTER

main28160-36110i2URGSE..URL10201910-202007

main28160-38070i2URGSE..URL10201510-201801

main28160-38080i2URGSE..URL10201801-201910

sub28160-36110

8202

9011910958

main90119-10958

9017908204

main90179-08204

91673A0614

main91673-A0614

9415180800

main94151-80800

12 parts on this diagram · 1 diagram in section
