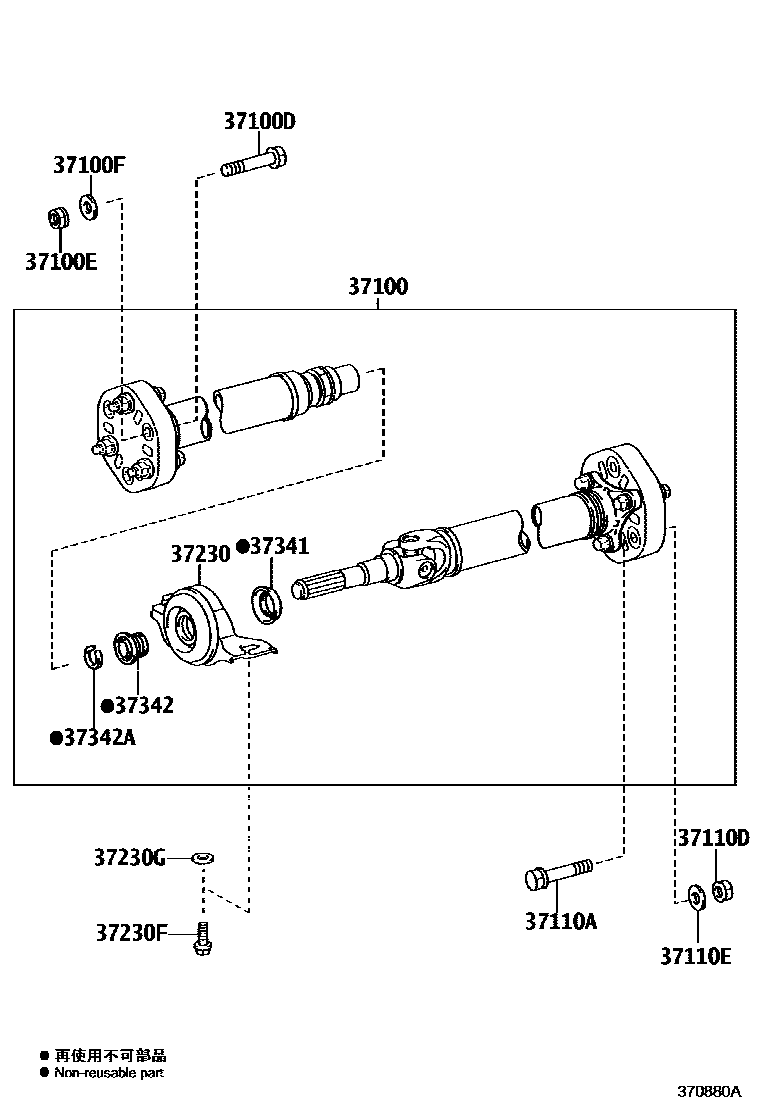

Toyota LEXUS GS F — PROPELLER SHAFT & UNIVERSAL JOINT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37100DBOLT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100ENUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100FWASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37110ABOLT (FOR PROPELLER SHAFT)
37110DNUT (FOR PROPELLER SHAFT)
37110EWASHER (FOR PROPELLER SHAFT)
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
37341DEFLECTOR, PROPELLER SHAFT DUST, NO.1
37342DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342ARING, SNAP (FOR PROPELLER SHAFT DUST DEFLECTOR NO.2)
13 parts on this diagram · 1 diagram in section
