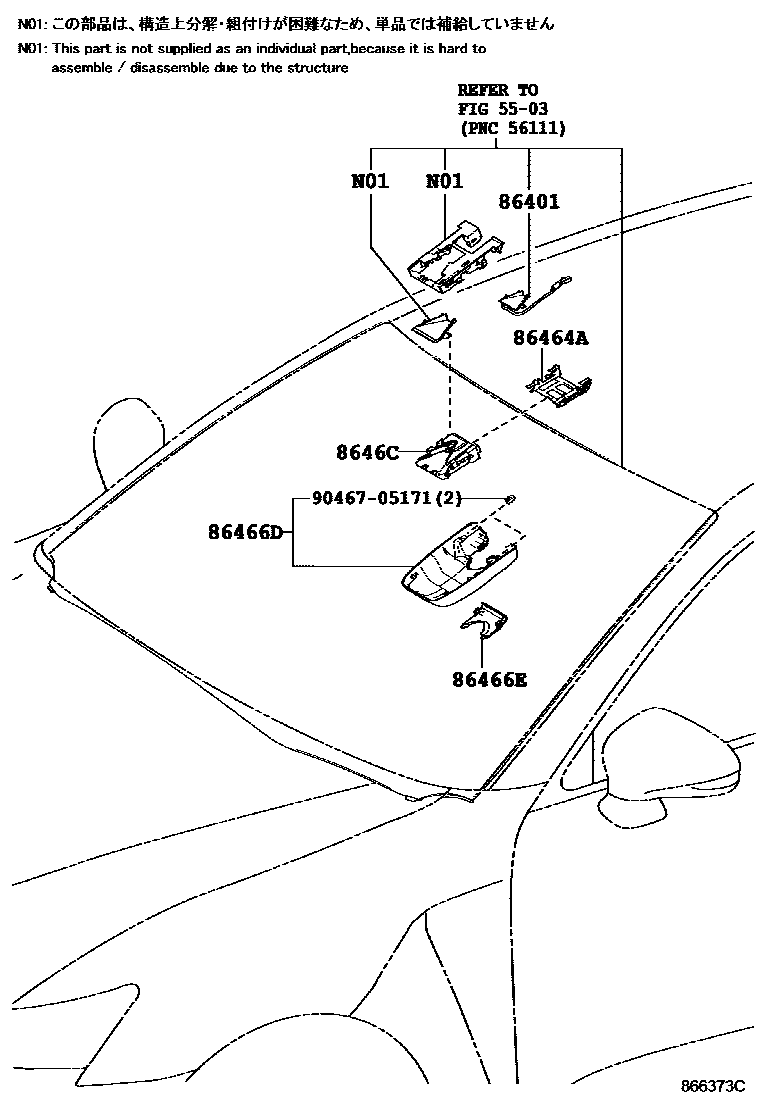

Toyota LEXUS GS F — PRE-COLLISION SYSTEM

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-30010iURL10201703-202007

86464ALATCH, FORWARD RECOGNITION

main86464-48011iURL10201510-202007

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-33040iURL10201510-201703

main86466-33041iURL10201703-202007

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-30040iURL10201510-202007

8646CCAMERA, FORWARD RECOGNITION

main8646C-30021iURL10201510-201609

main8646C-30022iURL10201609-201703

main8646C-30023iURL10201703-201709

main8646C-30060iURL10201709-202007

9046705171

main90467-05171

6 parts on this diagram · 1 diagram in section
