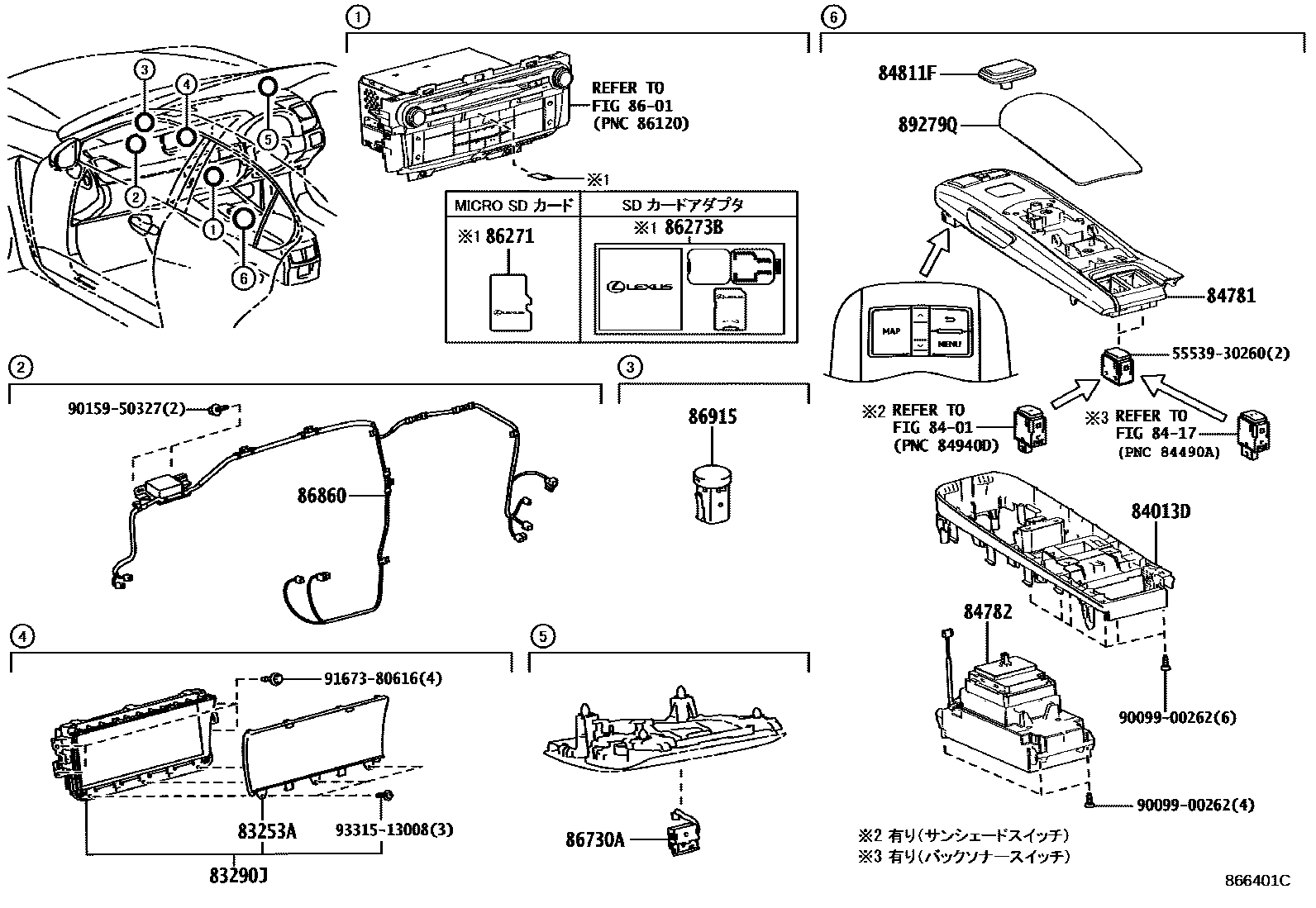

Toyota LEXUS GS F — NAVIGATION & FRONT MONITOR DISPLAY

83253AGLASS, ACCESSORY METER

main83253-30010iURL10201510-202007

83290JMETER ASSY, ACCESSORY

main83290-30340iURL10201510-202007

8401

84013DPANEL SUB-ASSY, INTEGRATION

main84013-30270iURL10201510-202007

8417

84781SWITCH, REMOTE OPERATION

main84781-30190iURL10201510-201801

sub84781-30191

main84781-30191iURL10201802-202007

84782BOARD, REMOTE OPERATION

main84782-30030iURL10201510-202007

84811FKNOB, SWITCH

main84811-30070iURL10201510-202007

8601

86271DISC, DISC PLAYER

main86271-48260iURL10201510-201603

sub86271-48261

main86271-48261iURL10201604-201609

main86271-48412iURL10201809-201905

sub86271-48413

main86271-48413iURL10201905-201909

sub86271-48414

main86271-48414iURL10201909-202004

sub86271-48415

main86271-48415iURL10202004-202007

sub86271-48416

main86271-53401iURL10201609-201704

sub86271-53402

main86271-53402iURL10201704-201709

sub86271-48415

main86271-53403iURL10201709-201804

sub86271-53404

main86271-53404iURL10201804-201809

sub86271-48411

86273BADAPTER, DISC PLAYER

main86273-53010iURL10201510-202007

86730AMICROPHONE ASSY, TELEPHONE

main86730-30230iURL10201510-202007

86860ANTENNA ASSY, NAVIGATION

main86880-30050iURL10201510-202007

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010iURL10201510-202007

89279QCOVER

main89279-30180iURL10201510-202007

5553930260COVER, SPARE SWITCH HOLE

main55539-30260

9009900262

main90099-00262

9015950327

main90159-50327

9167380616

main91673-80616

9331513008

main93315-13008

20 parts on this diagram · 1 diagram in section
