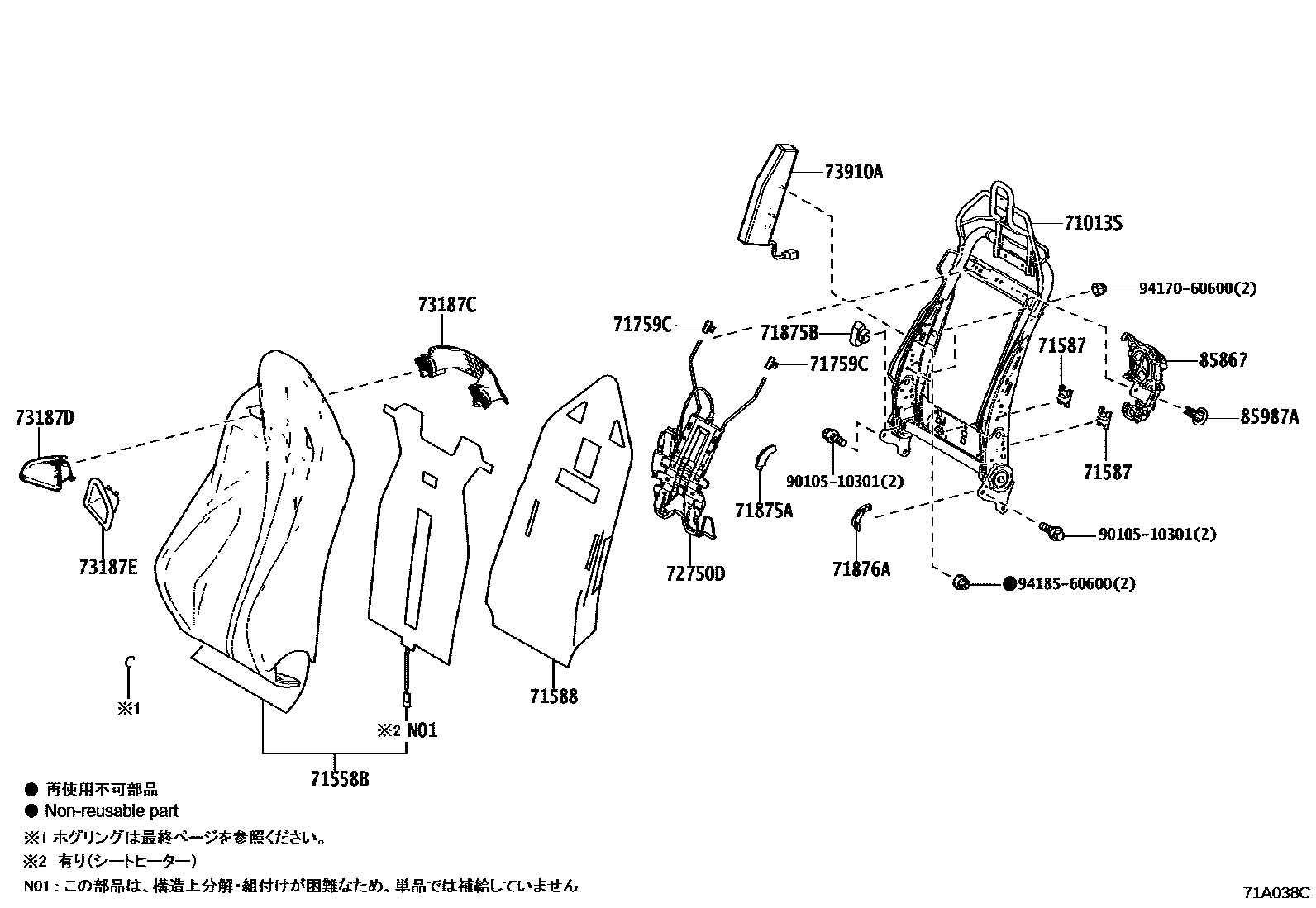

Toyota LEXUS GS F — FRONT SEAT & SEAT TRACK

0001 1������(�������) 0002 1������(��������) 0003 1�������(�������) 0004 1�������(��������) 0005 1�������������� & �������

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-30B80iURL10201510-202007

71558BPAD, FRONT SEATBACK W/COVER, RH

main71401-30010-C0iURL10201510-201909

BLACK/BLUE,TRIM2#

sub71401-30010

sub71401-30011

main71401-30010-C9iURL10201909-202007

BLACK/BLUE,TRIM2#

sub71401-30010

sub71401-30011

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-52030iURL10201510-202007

71588PROTECTOR, FRONT SEATBACK EDGE, NO.2

main71587-30060iURL10201510-202007

71759CHOOK, FRONT SEATBACK, NO.1

main71759-47011iURL10201510-202007

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-60210-C0iURL10201510-202007

BLACK,TRIM0#,2#,3#,4#,8#

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-30200iURL10201510-202007

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-30200iURL10201510-202007

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-60210-C0iURL10201510-202007

BLACK,TRIM0#,2#,3#,4#,8#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-76010iURL10201510-202007

73187CGUIDE, FRONT SEAT SHOULDER BELT, RH NO.1

main73187-24080-B0iURL10201510-202007

SILVER,TRIM0#,2#,3#,4#,8#

73187DGUIDE, FRONT SEAT SHOULDER BELT, RH NO.2

main73187-30020-B0iURL10201510-202007

SILVER,TRIM0#,2#,3#,4#,8#

73187EGUIDE, FRONT SEAT SHOULDER BELT, RH NO.3

main73187-30030-B0iURL10201510-202007

SILVER,TRIM0#,2#,3#,4#,8#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-30150iURL10201510-202007

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-53020

main85867-53030

85987ACLIP

9010510301

main90105-10301

9417060600

main94170-60600

9418560600

main94185-60600

19 parts on this diagram · 5 diagrams in section
