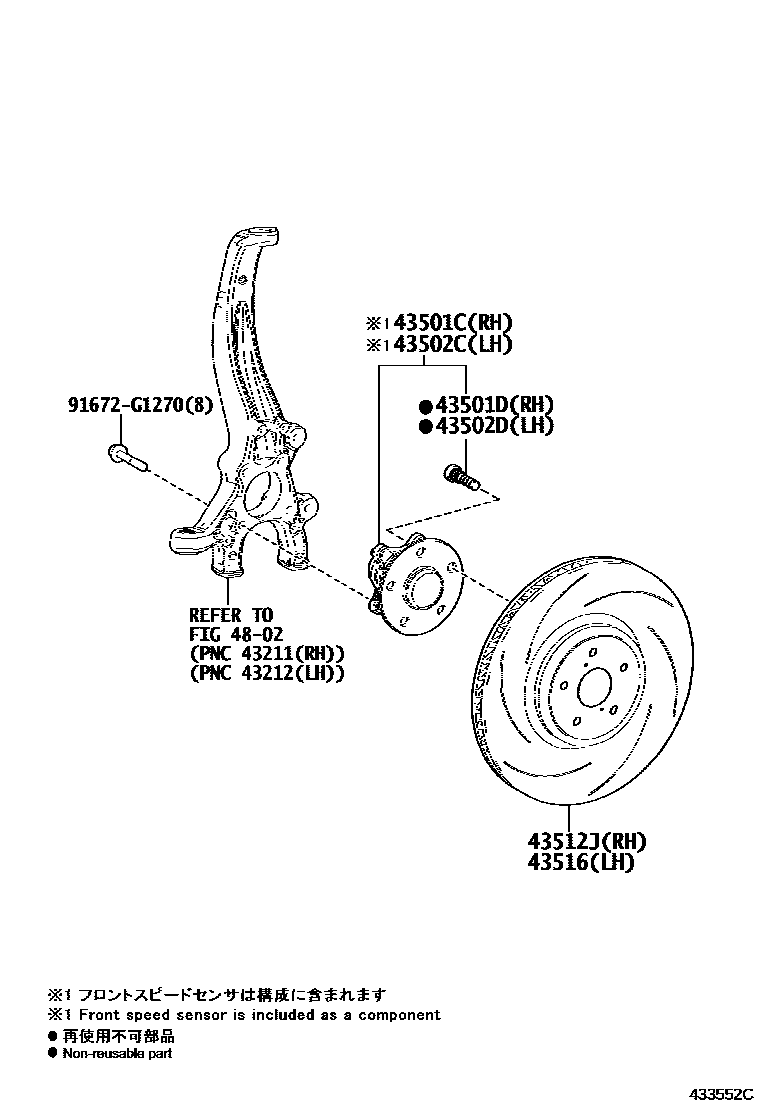

Toyota LEXUS GS F — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-24011iURL10201510-202007

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iURL10201510-202007

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-24011iURL10201510-202007

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iURL10201510-202007

43512JDISC, FRONT RH

main43512-0W100iURL10201510-202007

43516DISC, FRONT LH

main43516-0W020iURL10201510-202007

4802

91672G1270

main91672-G1270

8 parts on this diagram · 1 diagram in section
