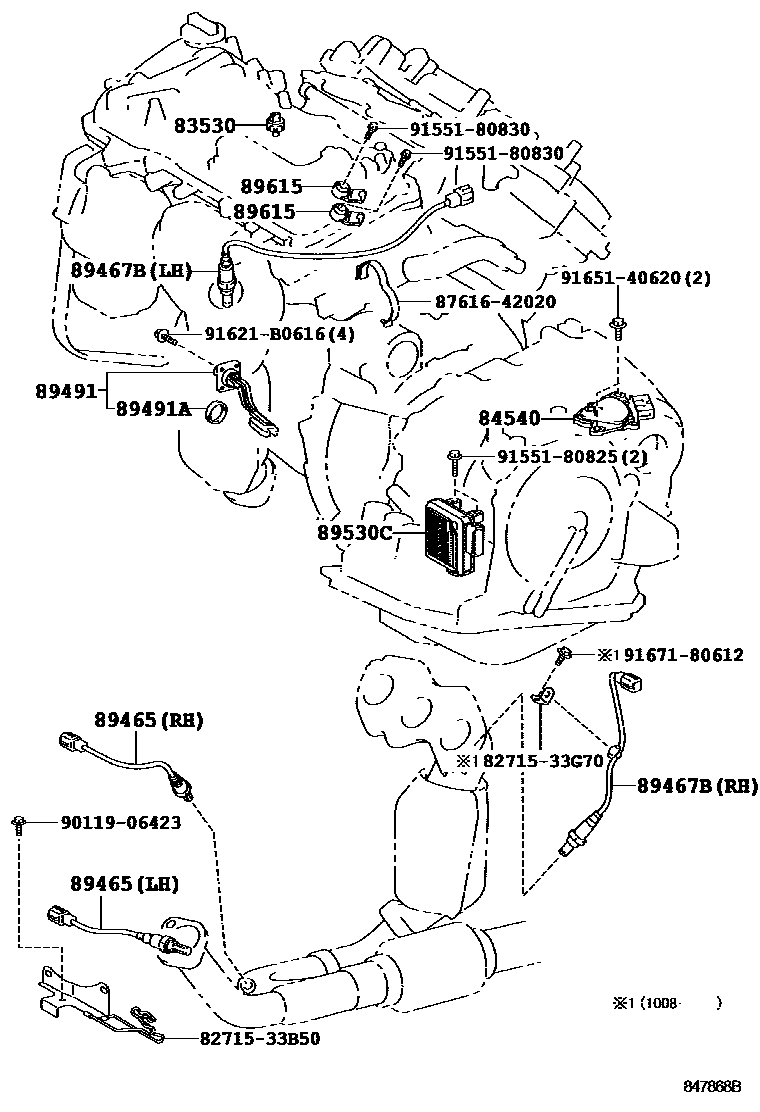

Toyota LEXUS ES350 — SWITCH & RELAY & COMPUTER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
DENSO
YAZAKI
84540SWITCH ASSY, NEUTRAL START
89467BSENSOR, AIR FUEL RATIO
LH
RH
LH
RH
LH
RH
89491SENSOR, ENGINE OIL LEVEL
89491AGASKET, ENGINE OIL LEVEL SENSOR
89530CCOMPUTER ASSY, TRANSMISSION CONTROL
89615SENSOR, KNOCK CONTROL
8271533B50BRACKET,WIRING HARNESS CLAMP
main82715-33B50
8271533G70BRACKET,WIRING HARNESS CLAMP
main82715-33G70
8761642020CLAMP, COOLING UNIT CASE
main87616-42020
9011906423
main90119-06423
9155180825
main91551-80825
9155180830
main91551-80830
91621B0616
main91621-B0616
9165140620
main91651-40620
9167180612
main91671-80612
17 parts on this diagram · 8 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota LEXUS ES350
This section contains 118 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota LEXUS ES350. Key components include: RELAY ASSY, STARTER, RELAY, STARTER CUT, RELAY, IGNITION, NO.1, RELAY, IGNITION, NO.2, FLASHER ASSY, TURN SIGNAL.
