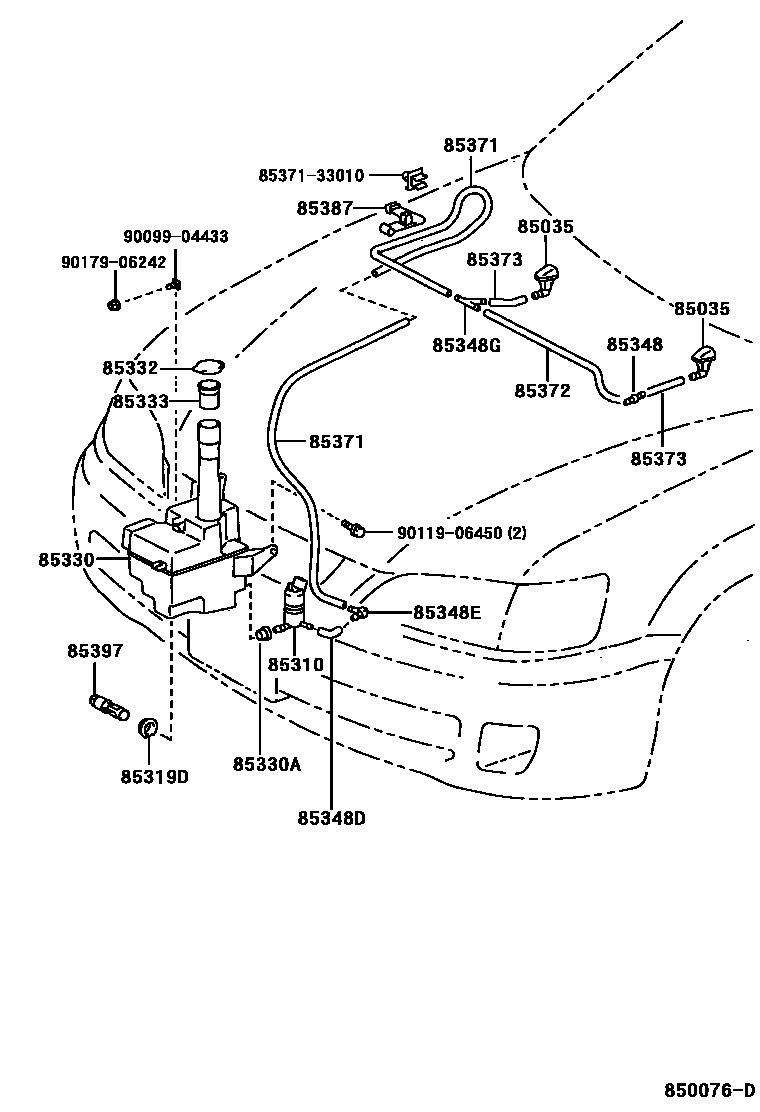

Toyota LEXUS ES300 — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85385-32030×2i199908-200008

main85385-33080-A0×2i199608-200008

SU.WHITE PM,051

main85385-33080-A1i199902-199904

COACH EDITION FOR USA & HAWAII,WHITE PM.,057

main85385-33080-B0×2i199608-200008

GRAY M.M,1B2

main85385-33080-D0×2i199608-199808

MAGENTA MC,3L3

main85385-33080-D1×2i199808-200008

DK.RED MC.,3N6

main85385-33080-E0×2i199608-199908

FLAXEN MM,4M7

main85385-33080-E1×2i199608-200008

BEIGE ME.,4M9

main85385-33080-E2×2i200001-200007

LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA),BEIGE SF.,4P2

main85385-33080-G0×2i199908-200008

GRAYISH GREEN M.M.OP,6R6

main85385-33100-A0i199608-200008

SU.WHITE PM,051,DRIVER SIDE

main85385-33100-B0i200008-200107

GRAY M.M,1B2,DRIVER SIDE

main85385-33100-D0i199608-199808

MAGENTA MC,3L3,DRIVER SIDE

main85385-33100-D1i199808-200008

DK.RED MC.,3N6,DRIVER SIDE

main85385-33100-E0i199608-199908

FLAXEN MM,4M7,DRIVER SIDE

main85385-33100-E1i200008-200107

BEIGE ME.,4M9,DRIVER SIDE

main85385-33100-E2i200001-200007

LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA),BEIGE SF.,4P2,DRIVER SIDE

main85385-33100-G0i199908-200008

GRAYISH GREEN M.M.OP,6R6,DRIVER SIDE

main85385-33110×2i199608-199908

main85385-33120i200008-200107

DRIVER SIDE

main85385-33130-A0i200001-200007

LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA),SU.WHITE PM,062,PASSENGERSIDE

main85385-33130-B0i200008-200107

GRAY M.M,1B2,PASSENGER SIDE

main85385-33130-D0i199608-199808

MAGENTA MC.,3L3,PASSENGER SIDE

main85385-33130-D1i200008-200107

DK.RED MC.,4M9,PASSENGER SIDE

main85385-33130-E0i199608-199908

FLAXEN MM,4M7,PASSENGER SIDE

main85385-33130-E1i199608-199908

BEIGE ME.,4M9,PASSENGER SIDE

main85385-33130-E2i200001-200007

LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA),BEIGE SF.,4P2,PASSENGER SIDE

main85385-33130-G0i200008-200107

GRAYISH GREEN M.M.OP,6R6,PASSENGER SIDE

main85385-33140i199608-200008

PASSENGER SIDE

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-33020i199608

85319DPACKING, FRONT WASHER

main85319-33230i199608

85330JAR ASSY, WINDSHIELD WASHER

main85315-33230i199608

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i199608

85332CAP, WINDSHIELD WASHER JAR

main85316-33050i199608

85333FILTER, WINDSHIELD WASHER JAR

main85333-12470i199608

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i199608

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-32110i199608

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85317-12410i199608

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85378-33230i199608

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33921i199608

L=2250

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i199608

L=1450(*H,L=490)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i199608

L=1450(*H,L=130)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22410i199608

85397SWITCH ASSY,LEVEL WARNING

main85397-33230i199608

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9009904433

main90099-04433

9011906450

main90119-06450

9017906242

main90179-06242

20 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota LEXUS ES300

This section contains 20 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota LEXUS ES300. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, PACKING, FRONT WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
