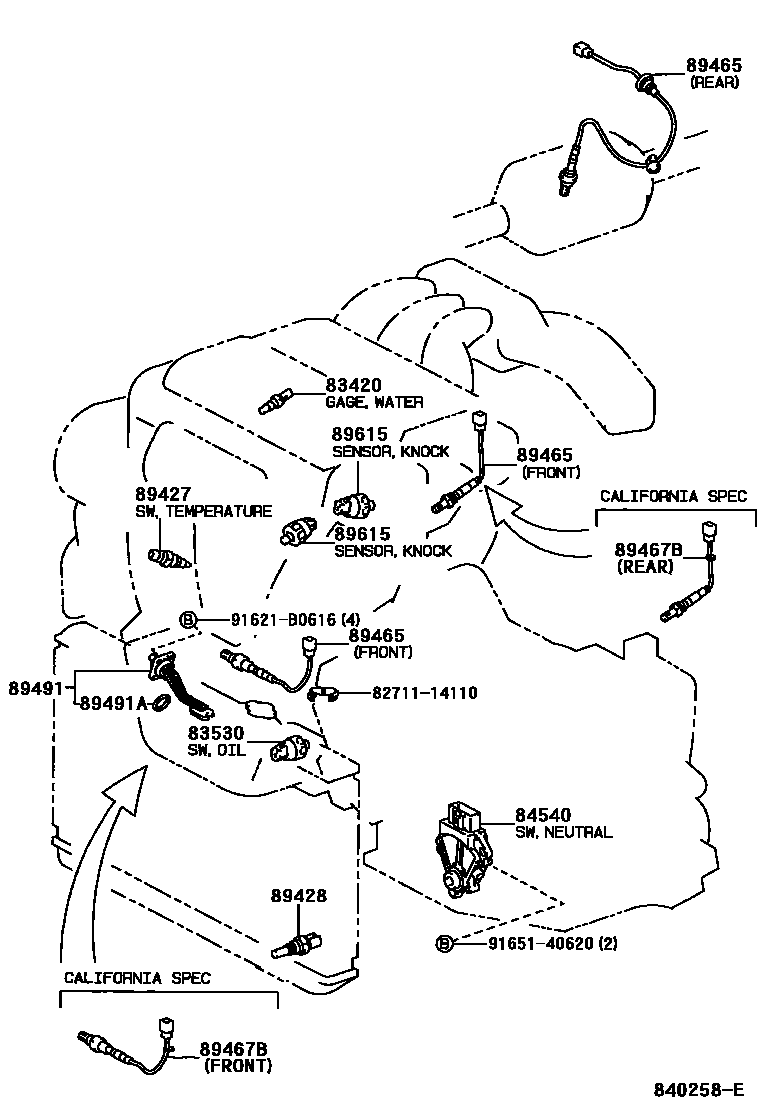

Toyota LEXUS ES300 — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1INSTRUMENT PANEL 0005 1COWL 0006 1COMBINATION SWITCH 0007 1FLOOR, DOOR, LUGGAGE, SEAT

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040iMCV20199608-200008

main83420-AA010iMCV20200008

(L)

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iMCV20199802

DENSO

main83530-30090iMCV20199608-199802

main83530-60020iMCV20199802

YAZAKI

main83530-AA011iMCV20200008

TOKAIRIKA

sub83530-0E010

84540SWITCH ASSY, NEUTRAL START

main84540-12200iMCV20199808

TOKAIRIKA

main84540-12210iMCV20199808

MATSUSHITA

main84540-20200iMCV20..USA199808

BRAZIL SPEC

89427SWITCH, TEMPERATURE DETECT

main89428-41010iMCV20199608

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-33020iMCV20199608

89465SENSOR, OXYGEN

main89465-33120iMCV20199608

REAR

main89465-33180×2iMCV20199608-199808

FRONT

main89465-33310×2iMCV20..USA200103

sub89465-33350

89467BSENSOR, AIR FUEL RATIO

main89467-41010iMCV20..USA199708-199808

CALIFORNIA SPEC,FRONT

sub89467-41011

main89467-41020iMCV20..USA199708-199808

CALIFORNIA SPEC,REAR

main89467-41021iMCV20199905-199908

REAR

main89467-41030iMCV20199908

REAR

main89467-41040iMCV20199908

FRONT

main89467-48010iMCV20199808-199907

FRONT

main89467-48011iMCV20199907-199908

FRONT

89491SENSOR, ENGINE OIL LEVEL

main89491-33030iMCV20199608

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001iMCV20199608

89615SENSOR, KNOCK CONTROL

main89615-12040×2iMCV20199608-199908

main89615-12090×2iMCV20199908

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

91621B0616

main91621-B0616

9165140620

main91651-40620

13 parts on this diagram · 7 diagrams in section
