Toyota LEXUS ES300 — SPEAKER

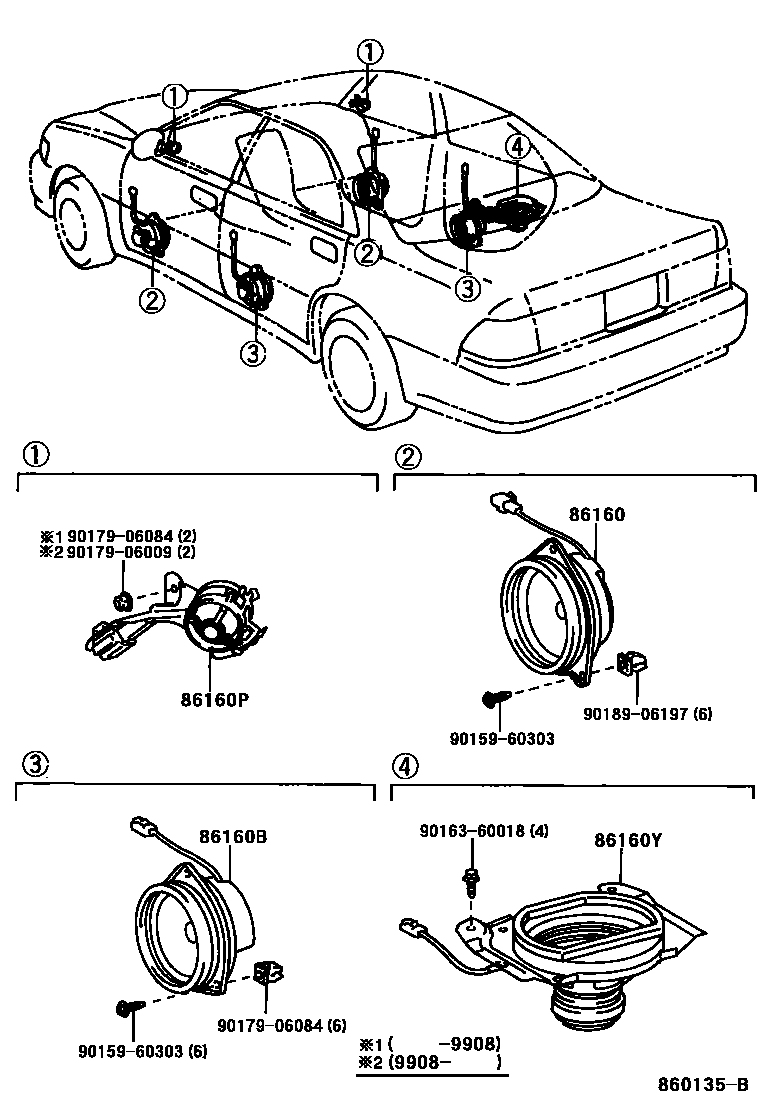

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-33420×2i199608

main86160-33510×2i199708

W(7 SPEAKER)

86160BSPEAKER ASSY, REAR

main86160-33480×2i199608

main86160-33560×2i199708

W(7 SPEAKER)

86160PSPEAKER ASSY, FRONT NO.2

main86160-33450i199608

RH

main86160-33460i199608

LH

main86160-33520i199708

W(7 SPEAKER),RH

main86160-33530i199708

W(7 SPEAKER),LH

86160YSPEAKER ASSY, REAR NO.2

main86160-33500i199608

main86160-33570i199708

W(7 SPEAKER)

9015960303

main90159-60303

9016360018

main90163-60018

9017906009

main90179-06009

9017906084

main90179-06084

9018906197

main90189-06197

9 parts on this diagram · 1 diagram in section

SPEAKER for Toyota LEXUS ES300

This section contains 9 genuine Toyota parts for the SPEAKER system of the Toyota LEXUS ES300. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2, SPEAKER ASSY, REAR NO.2.
