Toyota LEXUS ES300 — PARTIAL ENGINE ASSEMBLY

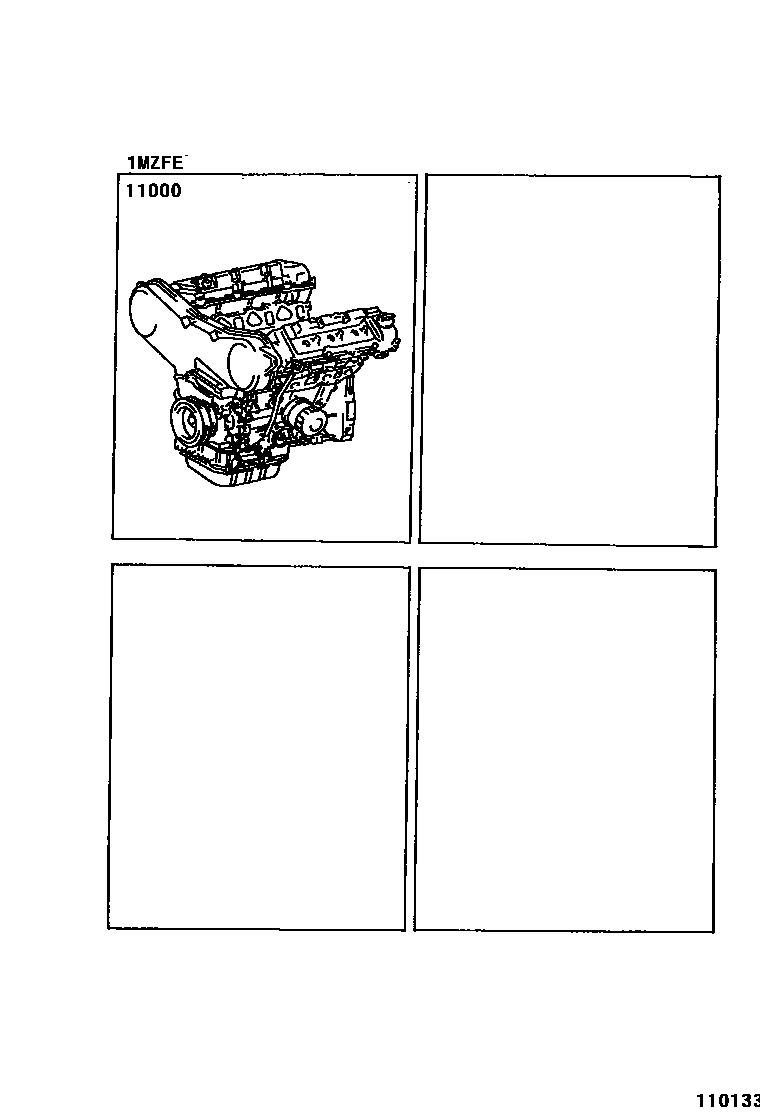

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-20050i199608-199710
sub44441-33022
sub44443-33041
main19000-20051i199710-199808
main19000-20061i199808-199903
BRAZIL SPEC & W/O(VVT)
main19000-20062i199903
BRAZIL SPEC & W/O(VVT)
main19000-20170i199808-199903
main19000-20171i199903-199908
main19000-20240i199908

1 parts on this diagram · 1 diagram in section
