Toyota LEXUS ES300 — CONSOLE BOX & BRACKET

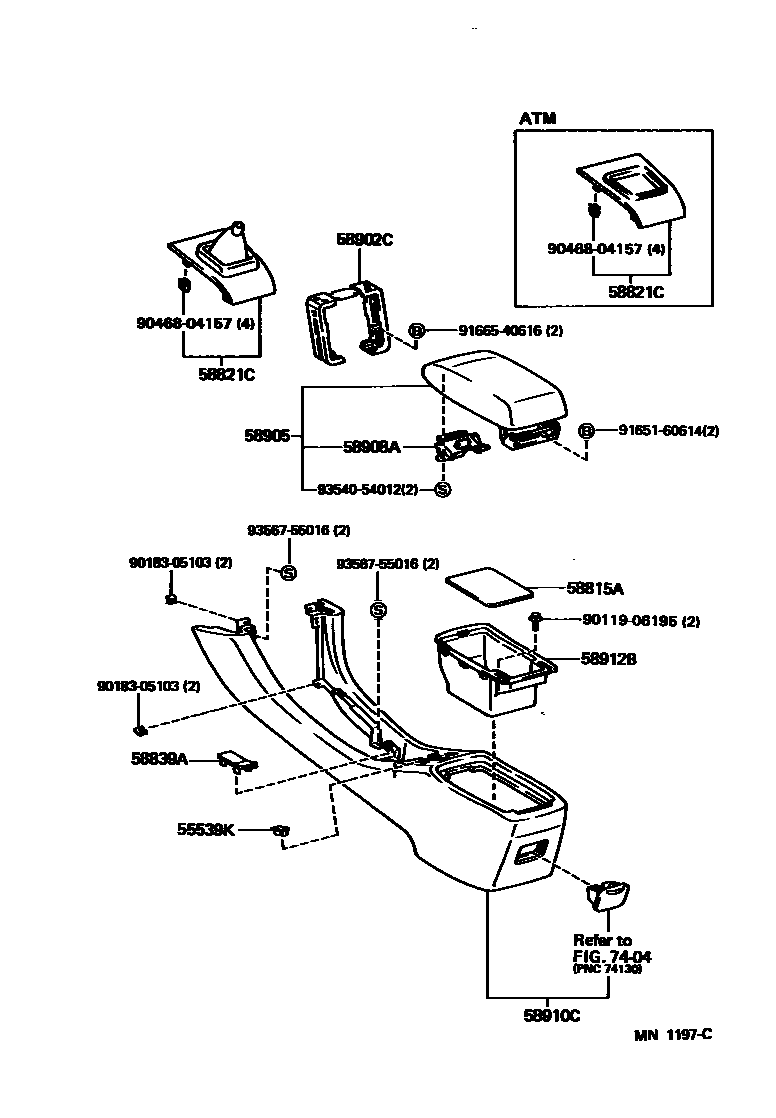

Parts diagram
55539KCOVER, SPARE SWITCH HOLE
main55539-32040-02×2i199107-199206
TAUPE,TRIM9#
main55539-32040-04×2i199107-199202
DARK BLUE,TRIM8#
main55539-32040-C0×2i199508-199608
BLACK,TRIM2#
main55539-32040-E0×2i199107-199308
GREIGE,TRIM0#
main55539-32040-E2×2i199508-199608
OAK,TRIM4#
main55539-32040-K0×2i199508-199608
TAUPE,TRIM9#
main55539-32040-W3×2i199202-199408
DARK BLUE,TRIM8#
58815ACARPET, CONSOLE BOX
main58815-33010i199107-199608
58821CPANEL, CONSOLE, UPPER
main58804-33040i199107-199608
main58804-33050-01i199107-199308
BLACK,TRIM2#
main58804-33050-02i199107-199308
TAUPE,TRIM9#
main58804-33050-04i199107-199308
DARK BLUE,TRIM8#
main58804-33050-05i199107-199308
GREIGE,TRIM0#
58839ACOVER, CONSOLE BOX HOLE
main58839-33020-01i199107-199408
BLACK,TRIM2#
main58839-33020-02i199107-199408
TAUPE,TRIM9#
main58839-33020-04i199107-199408
DARK BLUE,TRIM8#
main58839-33020-05i199107-199308
GREIGE,TRIM0#
main58839-33020-22i199408-199608
BLACK,TRIM2#
main58839-33020-E0i199308-199608
OAK,TRIM4#
main58839-33020-K0i199408-199608
TAUPE,TRIM9#
58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
main58902-33010i199107-199308
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-33030-01i199107-199208
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main58905-33030-02i199107-199208
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main58905-33030-04i199107-199208
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main58905-33030-08i199107-199208
W(LEATHER SEAT)-*99,IVORY,TRIM0#
main58905-33031-05i199208-199308
W(LEATHER SEAT)-*99,IVORY,TRIM0#
main58905-33031-25i199208-199608
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main58905-33031-E0i199308-199608
W(LEATHER SEAT)-*99,OAK,TRIM4#
main58905-33031-K9i199208-199608
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main58905-33031-W8i199208-199408
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main58905-33040-02i199107-199208
MEDIUM TAUPE,TRIM9#
main58905-33040-03i199107-199208
GRAY,TRIM2#
main58905-33040-04i199107-199208
BLUE,TRIM8#
main58905-33041-10i199208-199408
GRAY,TRIM2#
main58905-33041-K9i199208-199408
MEDIUM TAUPE,TRIM9#
main58905-33041-W8i199208-199308
BLUE,TRIM8#
main58905-33080-B0i199408-199608
DK. GRAY,TRIM2#
main58905-33080-K0i199408-199608
TAUPE,TRIM9#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-33010-C0i199107-199608
BLACK,TRIM2#
main58908-33010-E0i199107-199308
GREIGE,TRIM0#
main58908-33010-E1i199308-199608
OAK,TRIM4#
main58908-33010-J0i199107-199408
DARK BLUE,TRIM8#
main58908-33010-K0i199107-199608
TAUPE,TRIM9#
58910CBOX ASSY, CONSOLE, REAR
main58801-33010-01i199107-199408
BLACK,TRIM2#
main58801-33010-02i199107-199408
TAUPE,TRIM9#
main58801-33010-04i199107-199408
DARK BLUE,TRIM8#
main58801-33010-05i199107-199308
GREIGE,TRIM0#
main58801-33010-22i199408-199608
BLACK,TRIM2#
main58801-33010-E0i199308-199608
OAK,TRIM4#
main58801-33010-K0i199408-199608
TAUPE,TRIM9#
58912BBOX, REAR CONSOLE, LOWER
main58912-33040i199107-199212
main58912-33041i199212-199608
7404ASH RECEPTACLE
→ Go to FIG 74-04
9011906195
main90119-06195
9018305103
main90183-05103
9046804157
main90468-04157
9165160614
main91651-60614
9166540616
main91665-40616
9354054012
main93540-54012
9356755016
main93567-55016

17 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota LEXUS ES300

This section contains 17 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota LEXUS ES300. Key components include: COVER, SPARE SWITCH HOLE, CARPET, CONSOLE BOX, PANEL, CONSOLE, UPPER, COVER, CONSOLE BOX HOLE, BRACKET SUB-ASSY, CONSOLE BOX MOUNTING.
