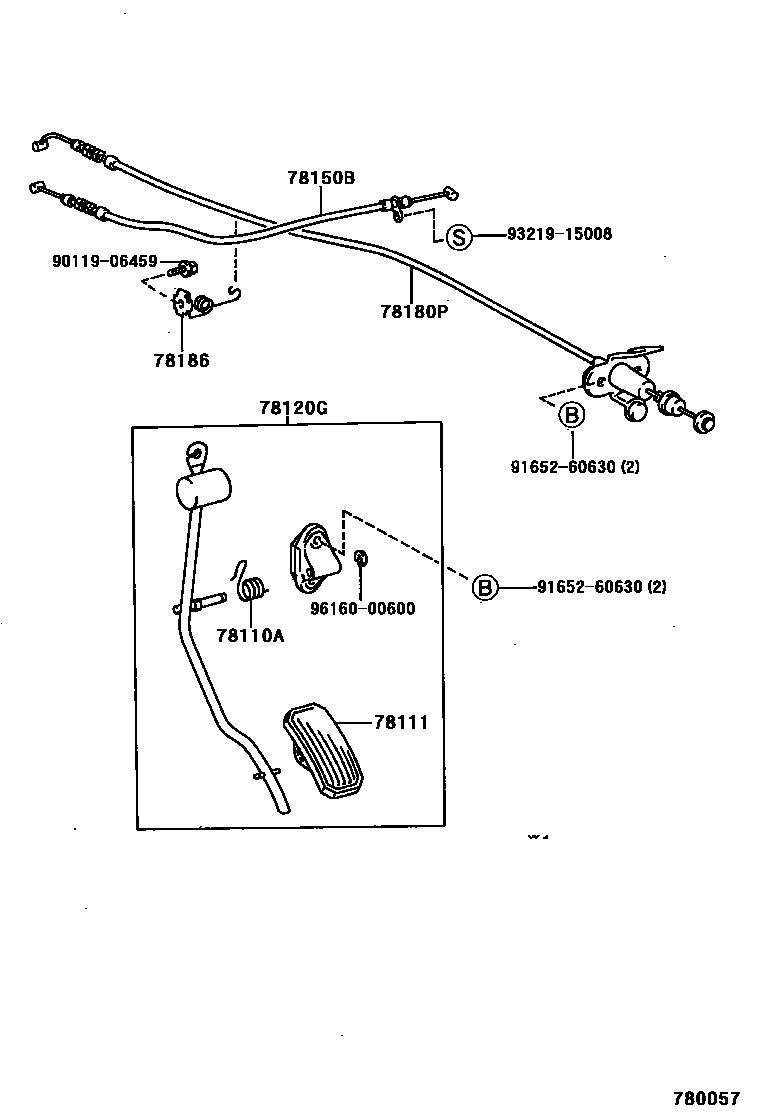

Toyota LEXUS ES300 — ACCELERATOR LINK
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78120GROD ASSY, ACCELERATOR PEDAL
78150BCABLE ASSY, ACCELERATOR AUTO DRIVE
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
9011906459
main90119-06459
9165260630
main91652-60630
9321915008
main93219-15008
9616000600
main96160-00600
10 parts on this diagram · 1 diagram in section
ACCELERATOR LINK for Toyota LEXUS ES300
This section contains 10 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LEXUS ES300. Key components include: SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, ROD ASSY, ACCELERATOR PEDAL, CABLE ASSY, ACCELERATOR AUTO DRIVE, CABLE ASSY, ACCELERATOR CONTROL.
