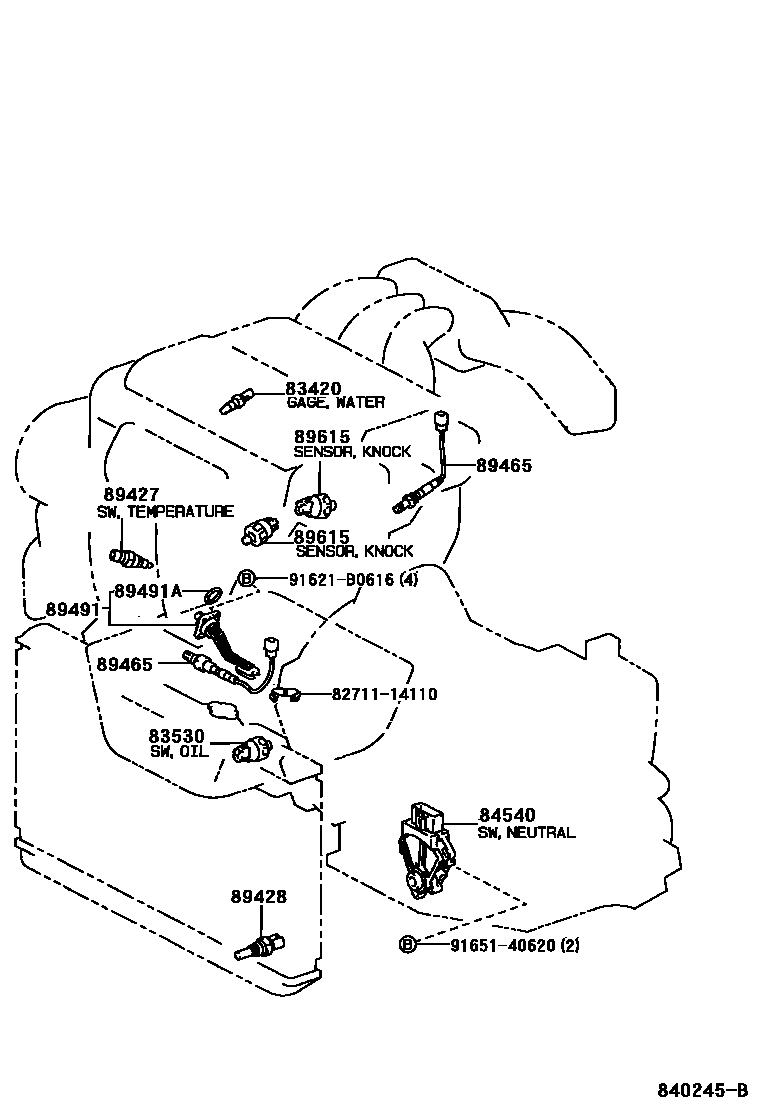

Toyota LEXUS ES300 — SWITCH & RELAY & COMPUTER

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040i199608-200008

main83420-20040i200008

(J)

main83420-AA010i200008

(L)

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020i199802

DENSO

main83530-30090i199608-199802

main83530-60020i199802

YAZAKI

main83530-AA011i200008

TOKAIRIKA

84540SWITCH ASSY, NEUTRAL START

main84540-20200i199608

89427SWITCH, TEMPERATURE DETECT

main89428-33030i199608

SUB

main89428-41010i199608

MAIN

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-33020i199608

89465SENSOR, OXYGEN

main89465-33180i199608-200103

main89465-33310i200103

89491SENSOR, ENGINE OIL LEVEL

main89491-33030i199608

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001i199608

89615SENSOR, KNOCK CONTROL

main89615-12040i199608-199908

main89615-12090i199908

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

91621B0616

main91621-B0616

9165140620

main91651-40620

12 parts on this diagram · 10 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota LEXUS ES300

This section contains 122 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota LEXUS ES300. Key components include: RELAY ASSY, STARTER, SHIFT LEVER & RETAINER, FLASHER ASSY, TURN SIGNAL, WIRING & CLAMP, COVER SET, JUNCTION BLOCK.
