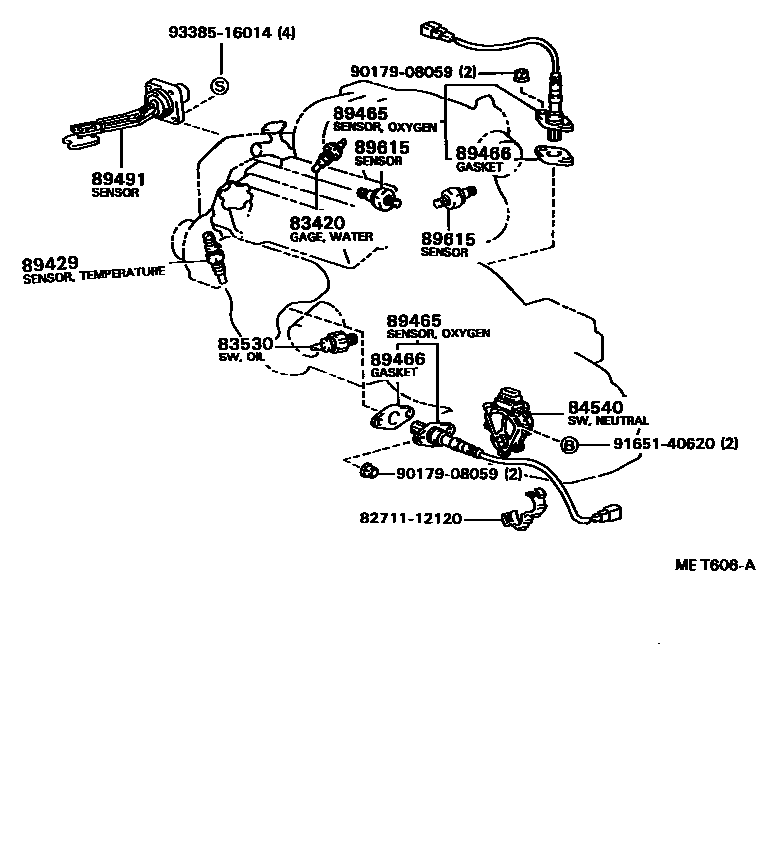

Toyota LEXUS ES300 — SWITCH & RELAY & COMPUTER

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020i199203-199301

main83420-16030i199301-199501

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060i199208-199408

main83530-30080i199203-199208

main83530-30090i199408-199608

84540SWITCH ASSY, NEUTRAL START

main84540-20200i199308-199608

main84540-32090i199203-199308

89429SENSOR, OIL TEMPERATURE

main89429-33010i199203-199608

89465SENSOR, OXYGEN

main89465-39405×2i199203-199608

89466GASKET, OXYGEN SENSOR

main89466-20020×2i199203-199608

89491SENSOR, ENGINE OIL LEVEL

main89491-33010i199203-199608

89615SENSOR, KNOCK CONTROL

main89615-33020×2i199211-199308

8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12120

9017908059

main90179-08059

9165140620

main91651-40620

9338516014

main93385-16014

12 parts on this diagram · 8 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota LEXUS ES300

This section contains 126 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota LEXUS ES300. Key components include: RELAY ASSY, STARTER, FLASHER ASSY, TURN SIGNAL, FUSE, FUSE BLOCK, PLATE, CAUTION(FOR FUSE), FUSE, MEDIUM CURRENT.
