Toyota LEXUS ES300 — SWITCH & RELAY & COMPUTER

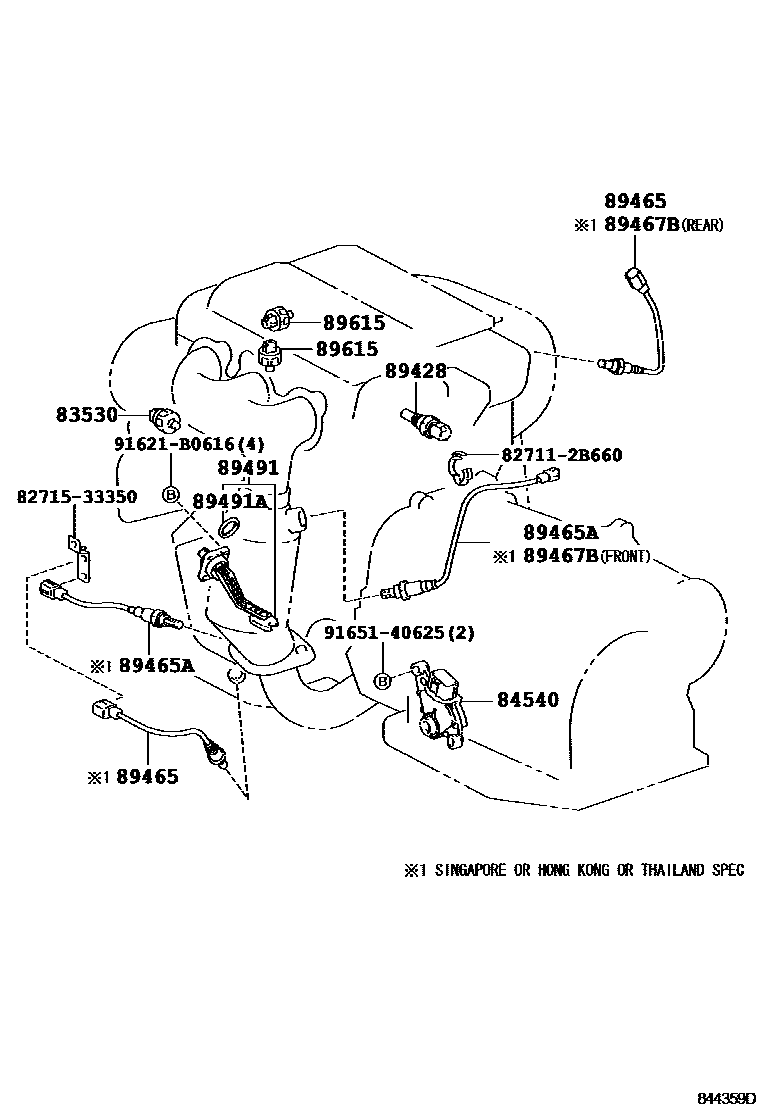

Parts diagram

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020200107-200406

main83530-60020200107-200406

main83530-AA011200406

84540SWITCH ASSY, NEUTRAL START

main84540-12230200107-200307

main84540-48010200307-200603

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-41010200107-200406

89465SENSOR, OXYGEN

main89465-33260200107-200603

main89465-33300200107-200603

89465ASENSOR, OXYGEN NO.2

main89465-33250200107-200603

main89465-33290200107-200307

main89465-33400200307-200603

89467BSENSOR, AIR FUEL RATIO

main89467-33050200107-200307

main89467-33060200107-200603

main89467-33120200307-200603

89491SENSOR, ENGINE OIL LEVEL

main89491-33030200107-200406

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001200107-200406

89615SENSOR, KNOCK CONTROL

main89615-12090200107-200406

827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B660

8271533350BRACKET,WIRING HARNESS CLAMP

main82715-33350

91621B0616

main91621-B0616

9165140625

main91651-40625

13 parts on this diagram · 12 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota LEXUS ES300

This section contains 117 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota LEXUS ES300. Key components include: RELAY ASSY, STARTER, RELAY, IGNITION, NO.1, STEERING COLUMN & SHAFT, FLASHER ASSY, TURN SIGNAL, FUSIBLE LINK.
