Toyota LEXUS ES300 — SPEAKER

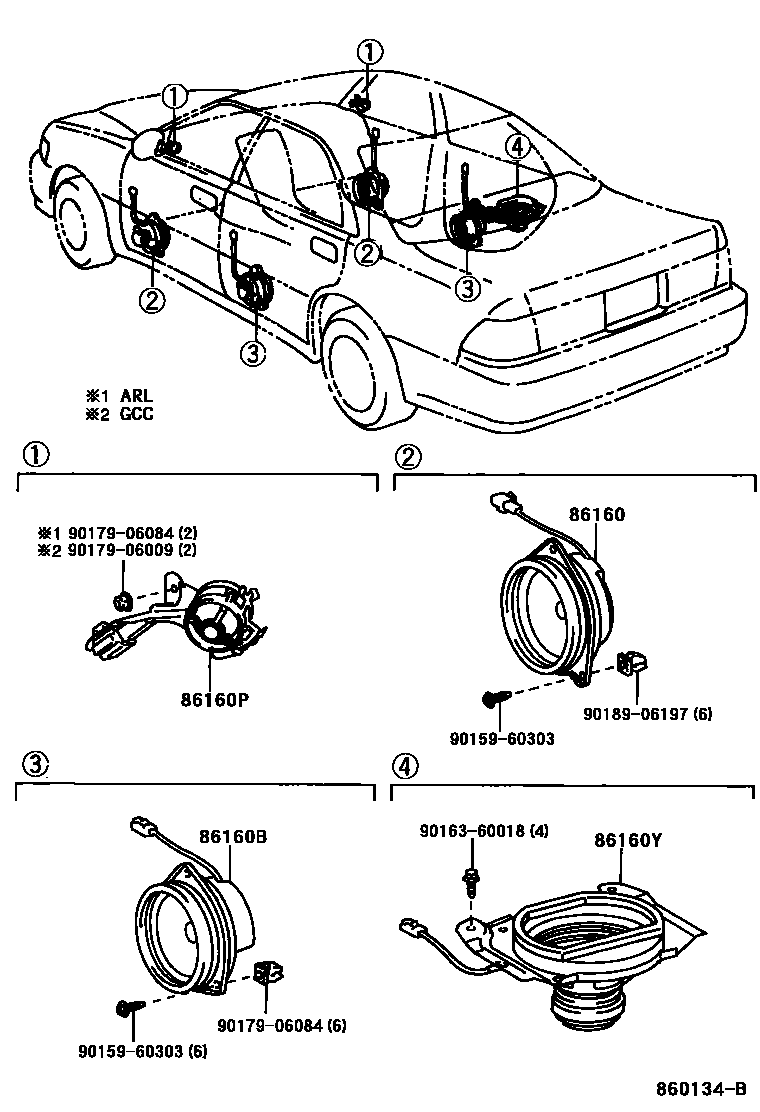

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-33410×2i199608

main86160-33420×2i199810

86160BSPEAKER ASSY, REAR

main86160-33470×2i199608

main86160-33480×2i199810

86160PSPEAKER ASSY, FRONT NO.2

main86160-33430i199608

RH

main86160-33440i199608

LH

main86160-33450i199810

RH

main86160-33460i199810

LH

86160YSPEAKER ASSY, REAR NO.2

main86160-33490i199608

main86160-33500i199810

9015960303

main90159-60303

9016360018

main90163-60018

9017906009

main90179-06009

9017906084

main90179-06084

9018906197

main90189-06197

9 parts on this diagram · 1 diagram in section

SPEAKER for Toyota LEXUS ES300

This section contains 9 genuine Toyota parts for the SPEAKER system of the Toyota LEXUS ES300. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2, SPEAKER ASSY, REAR NO.2.
