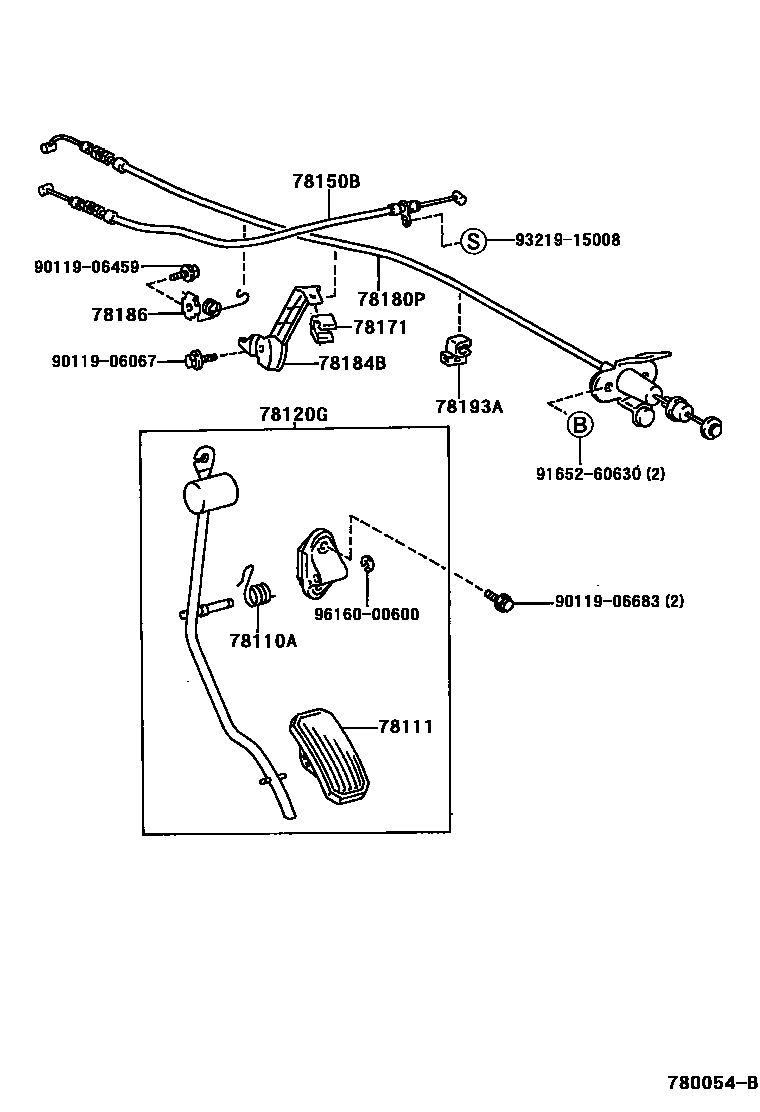

Toyota LEXUS ES300 — ACCELERATOR LINK
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78150BCABLE ASSY, ACCELERATOR AUTO DRIVE
78171BRACKET, ACCELERATOR CONTROL NO.2 ROD, RH
78180PCABLE ASSY, ACCELERATOR CONTROL
78184BBRACKET, ACCELERATOR CONTROL CABLE
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3
9011906067
main90119-06067
9011906459
main90119-06459
9011906683
main90119-06683
9165260630
main91652-60630
9321915008
main93219-15008
9616000600
main96160-00600
15 parts on this diagram · 1 diagram in section
ACCELERATOR LINK for Toyota LEXUS ES300
This section contains 15 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LEXUS ES300. Key components include: SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, ROD ASSY, ACCELERATOR PEDAL, CABLE ASSY, ACCELERATOR AUTO DRIVE, BRACKET, ACCELERATOR CONTROL NO.2 ROD, RH.
