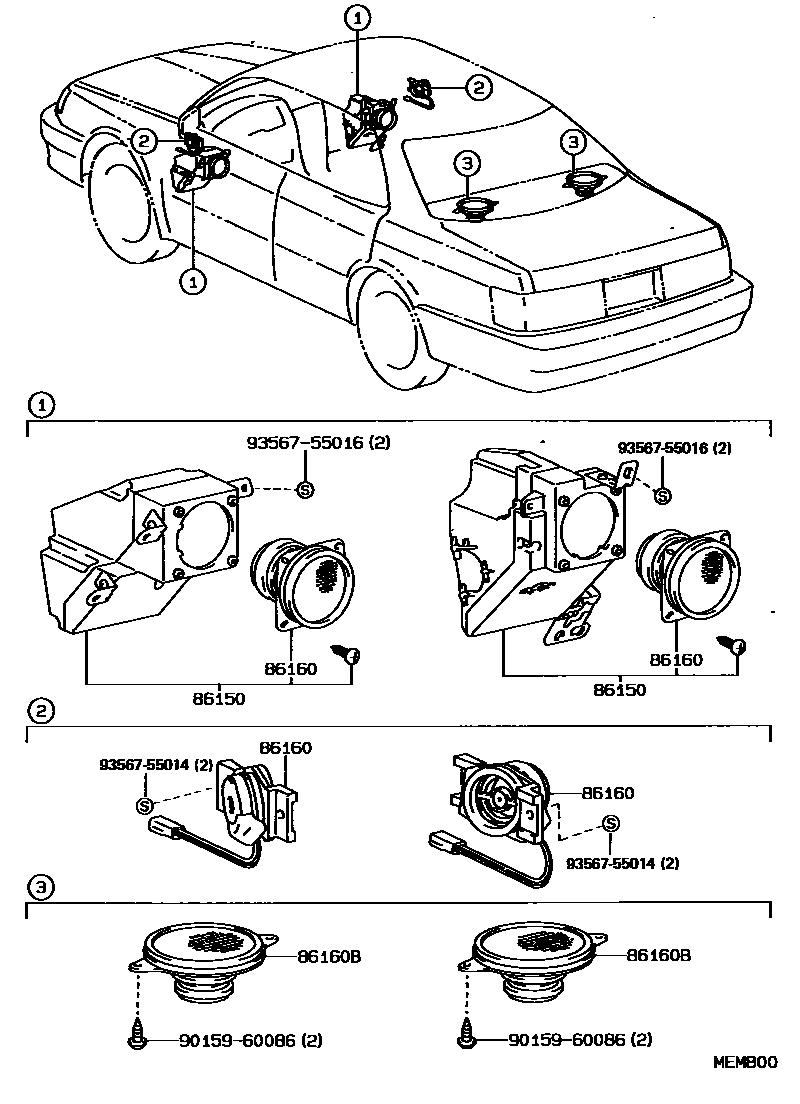

Toyota LEXUS ES250 — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-32180i198906-199107

FRONT,LH

main86150-32190i198906-199107

FRONT,RH

86160SPEAKER ASSY, FRONT NO.1

main86160-32200i198906-199107

FRONT DOOR RH

main86160-32210i198906-199107

FRONT DOOR LH

main86160-32230×2i198906-199107

INSTRUMENT PANEL

86160BSPEAKER ASSY, REAR

main86160-32220×2i198906-199107

9015960086

main90159-60086

9356755014

main93567-55014

9356755016

main93567-55016

6 parts on this diagram · 1 diagram in section

SPEAKER for Toyota LEXUS ES250

This section contains 6 genuine Toyota parts for the SPEAKER system of the Toyota LEXUS ES250. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR.
