Toyota LEXUS ES240/350 — PARTIAL ENGINE ASSEMBLY

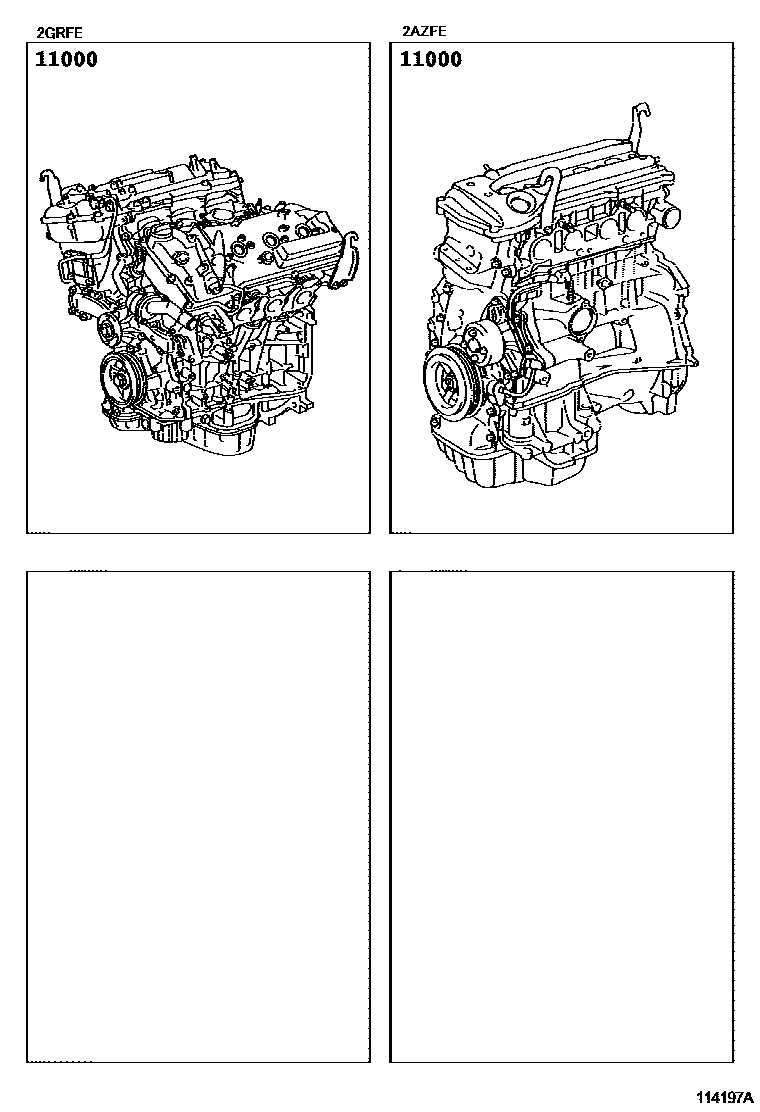

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-28B80i200908-201206
main19000-31D30i200607-200908
main19000-31E20i200605-200908

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota LEXUS ES240/350

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota LEXUS ES240/350. Key components include: ENGINE ASSY, PARTIAL.
