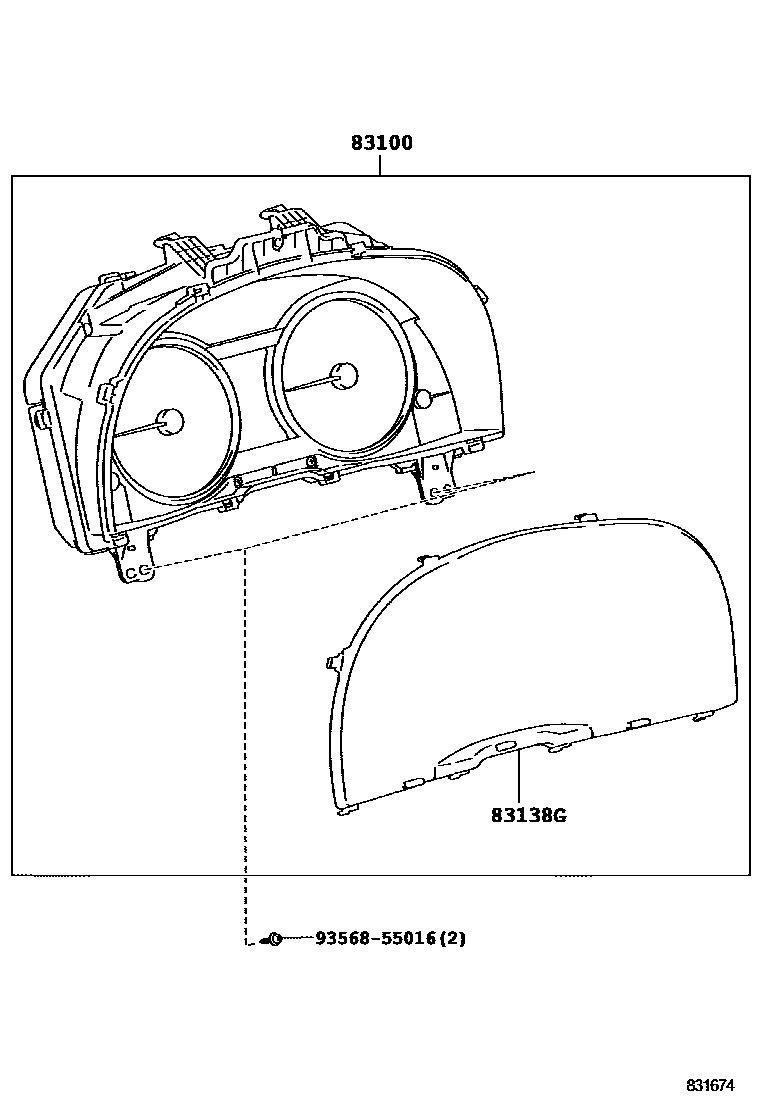

Toyota LEXUS ES2##/350/300H — METER

83100METER ASSY, COMBINATION

main83800-33M70i201206-201308

DENSO

main83800-33M71i201308-201408

DENSO

main83800-33M72i201408-201507

DENSO

main83800-33N10i201206-201308

DENSO

main83800-33N11supersedes 83800-33N40i201308-201408

DENSO; DENSO,SOUTH AFRICA SPEC

main83800-33N12i201408-201410

DENSO; DENSO,SOUTH AFRICA SPEC

main83800-33N13i201410-201507

DENSO; DENSO,SOUTH AFRICA SPEC

main83800-33N30i201308-201408

DENSO

main83800-33N31i201408-201507

DENSO

main83800-33N41i201408-201411

DENSO

main83800-33N42i201411-201507

DENSO

main83800-33P00i201507-201608

DENSO

main83800-33P01i201608-201705

main83800-33P02i201708

DENSO

main83800-33P20i201507-201608

DENSO

main83800-33P21i201608

DENSO

main83800-33P50supersedes 83800-33P60i201507-201608

DENSO; DENSO,SOUTH AFRICA SPEC&AUDIO-*DA & DVD & 8SPEAKER & DAB; DENSO,SOUTH AFRICA SPEC&D PACKAGE

main83800-33P51supersedes 83800-33P61i201608-201704

SOUTH AFRICA SPEC

main83800-33P70i201507-201608

DENSO

main83800-33P71i201608-201704

main83800-33W80i201705-201708

DENSO

main83800-33X00i201705

DENSO; DENSO,SOUTH AFRICA SPEC

main83800-33X20i201705

DENSO

83138GGLASS, COMBINATION METER

main83852-33M50i201206-201507

main83852-33N80i201507

9356855016

main93568-55016

3 parts on this diagram · 1 diagram in section

METER for Toyota LEXUS ES2##/350/300H

This section contains 3 genuine Toyota parts for the METER system of the Toyota LEXUS ES2##/350/300H. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
