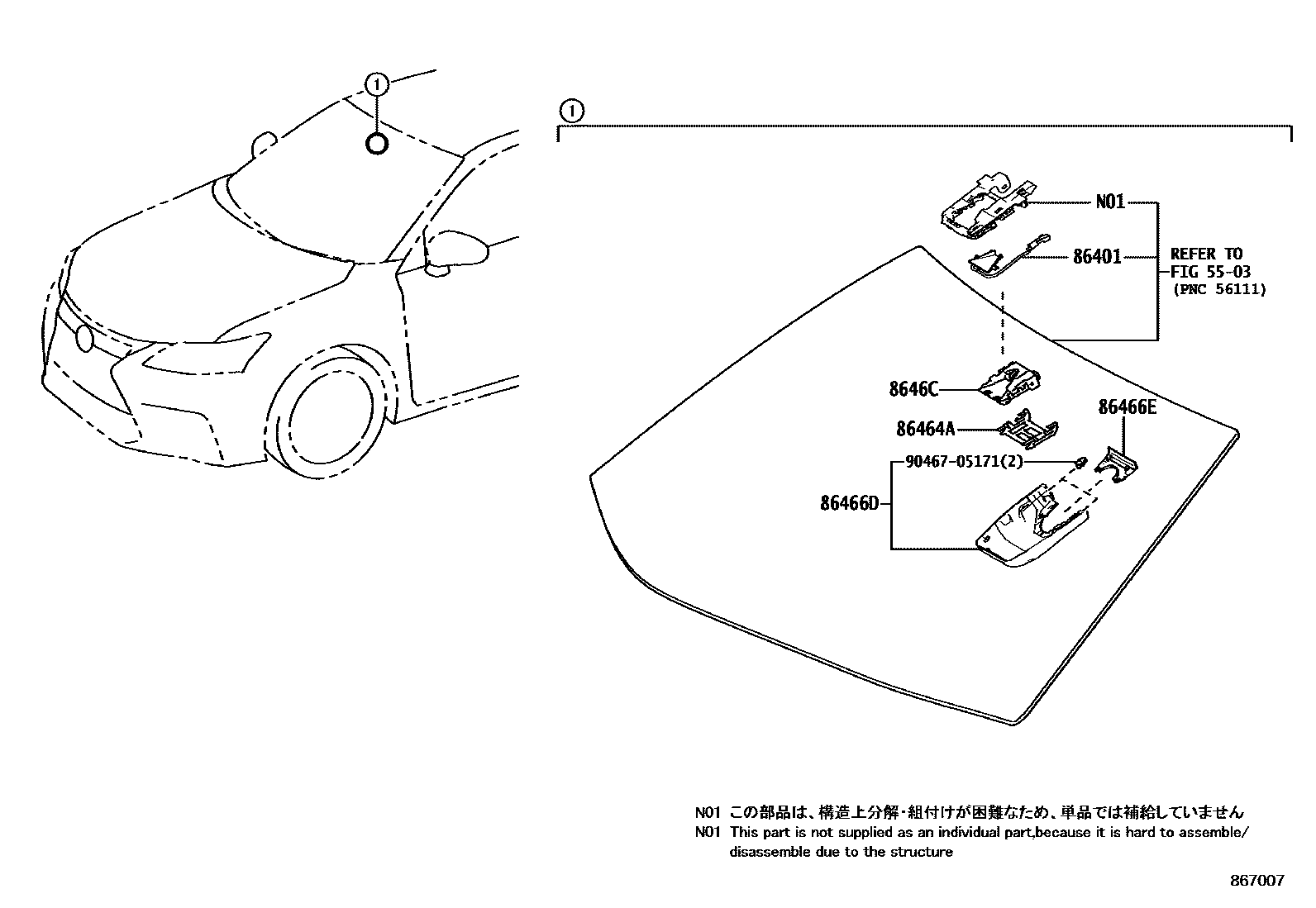

Toyota LEXUS CT200H — PRE-COLLISION SYSTEM

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-76010i201708-202108

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)

86464ALATCH, FORWARD RECOGNITION

main86464-48011i201708-202108

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-76010i201708-202108

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-76020i201708-202108

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)

8646CCAMERA, FORWARD RECOGNITION

main8646C-76010i201708-201809

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)

main8646C-76011i201809-202008

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)

main8646C-76012i202008-202108

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section

PRE-COLLISION SYSTEM for Toyota LEXUS CT200H

This section contains 7 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota LEXUS CT200H. Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1, COVER, FORWARD RECOGNITION, NO.2.
