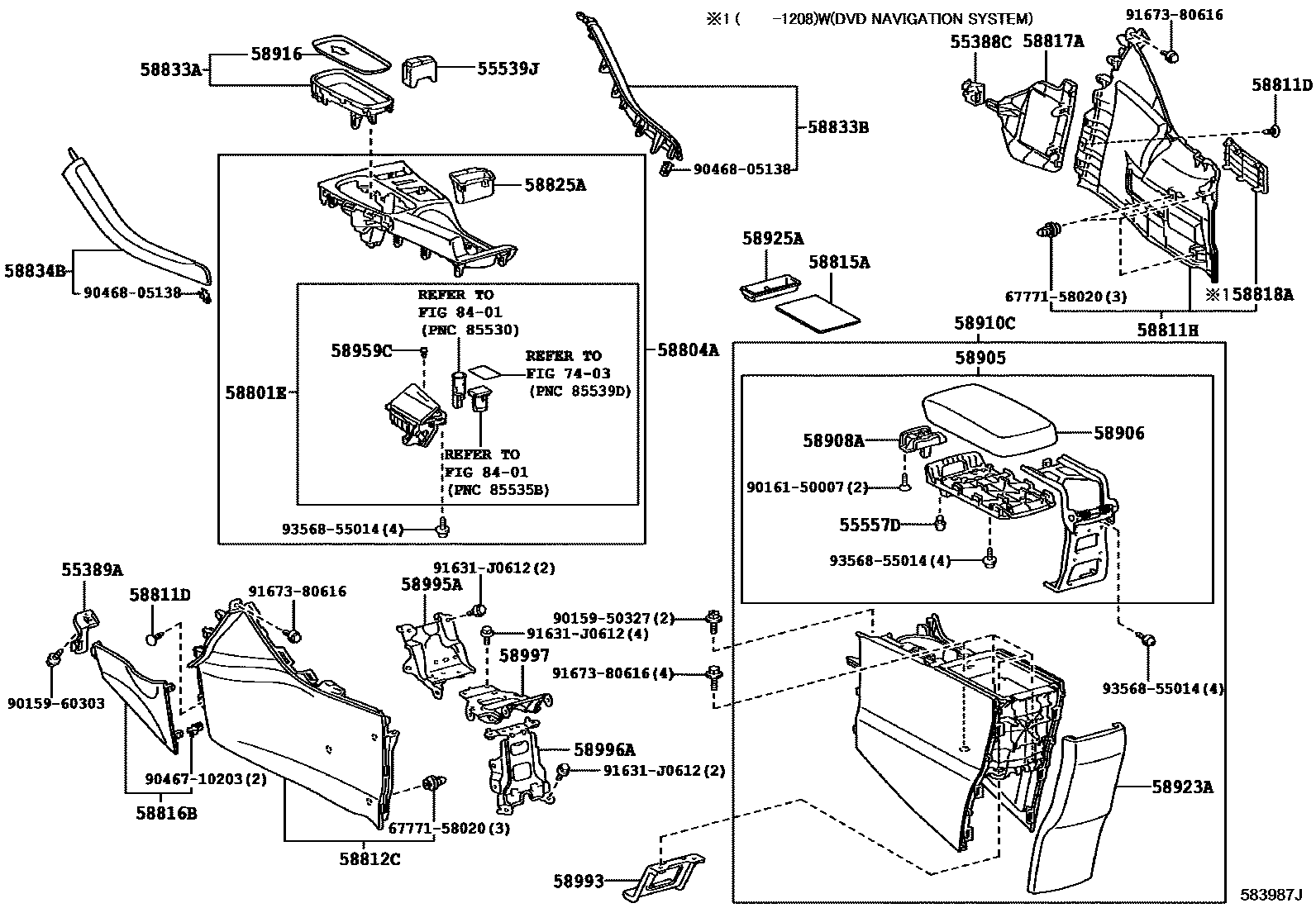

Toyota LEXUS CT200H — CONSOLE BOX & BRACKET
55388CBRACKET, CONSOLE MOUNTING, RH
55389ABRACKET, CONSOLE MOUNTING, LH
55539JCOVER, SPARE SWITCH HOLE
AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)
AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR
EMV & NAVIGATION SYSTEM-WITH(DVD)
55557DCUSHION, GLOVE COMPARTMENT DOOR CHECK
58801EBOX SUB-ASSY, CONSOLE, UPPER
58811DCLIP(FOR CONSOLE BOX)
58811HBOX, CONSOLE, RH
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
58812CBOX, CONSOLE, LH
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
58815ACARPET, CONSOLE BOX
58816BINSERT, CONSOLE BOX
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
58818ACOVER, CONSOLE BOX, FR
58833ACOVER, CONSOLE, UPPER
AUDIO-AM/FM & DVD & EMV & 13SPEAKER
EMV & NAVIGATION SYSTEM-WITH(DVD)
AUDIO-AM/FM & DVD & EMV & 10SPEAKER
AUDIO-*DA & DVD & 10SPEAKER
AUDIO-*DA & DVD & 10SPEAKER
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
BLACK/BLACK/LT.GRAY,TRIM00,1#,2#,30,4#,50,6#,80
sub58833-76031
BLACK/BLACK/LT.GRAY,TRIM00,2#,3#,4#,50,8#
sub58833-76031
BLACK/BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#,8#
sub58833-76031
BLACK/BLACK/LT.GRAY,TRIM00,02,1#,2#,30,4#,5#,6#,8#
BLACK/BLACK/LT.GRAY,TRIM00,02,2#,30,40,5#,8#
BLACK/BLACK/LT.GRAY,TRIM00,02,2#,30,40,43,5#,8#
BLACK/BLACK/RED,TRIM36,37
BLACK/BLACK/RED,TRIM36
BLACK/WHITE/MELLOW WHITE,TRIM03
BLACK/RED/RED,TRIM35
BLACK/BLACK/GARNET,TRIM45
BLACK/DK.ROSE/RED,TRIM38
BLACK/BLACK/ORANGE,TRIM44
BLACK/ORANGE/ORANGE,TRIM42
BLACK/BLACK/BEIGE,TRIM02
BLACK/CHATEAU/BEIGE,TRIM04
BLACK/BLACK/LT.GRAY,TRIM00,02,2#,30,40,43,5#,8#
BLACK/BLACK/RED,TRIM36
BLACK/WHITE/MELLOW WHITE,TRIM03
BLACK/CHATEAU/BEIGE,TRIM04
BLACK/RED/RED,TRIM35
BLACK/BLACK/GARNET,TRIM45
BLACK/BLACK/ORANGE,TRIM44
BLACK/BLACK/BEIGE,TRIM02
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
BLACK/BLACK/LT.GRAY,TRIM00,02,2#,30,40,43,5#,8#
BLACK/BLACK/RED,TRIM36
BLACK/WHITE/MELLOW WHITE,TRIM03
BLACK/CHATEAU/BEIGE,TRIM04
BLACK/RED/RED,TRIM35
BLACK/BLACK/GARNET,TRIM45
BLACK/BLACK/ORANGE,TRIM44
BLACK/BLACK/BEIGE,TRIM02
BLACK/BLACK/LT.GRAY,TRIM00,1#,2#,30,4#,50,6#,80
sub58834-76011
BLACK/BLACK/LT.GRAY,TRIM00,2#,3#,4#,50,8#
sub58834-76011
BLACK/BLACK/LT.GRAY,TRIM00,02,2#,30,40,5#,8#
BLACK/BLACK/LT.GRAY,TRIM00,02,2#,30,40,43,5#,8#
BLACK/BLACK/LT.GRAY,TRIM00,02,1#,2#,30,4#,5#,6#,8#
BLACK/BLACK/RED,TRIM36
BLACK/BLACK/RED,TRIM36,37
BLACK/WHITE/MELLOW WHITE,TRIM03
BLACK/RED/RED,TRIM35
BLACK/BLACK/GARNET,TRIM45
BLACK/DK.ROSE/RED,TRIM38
BLACK/BLACK/ORANGE,TRIM44
BLACK/ORANGE/ORANGE,TRIM42
BLACK/BLACK/BEIGE,TRIM02
BLACK/CHATEAU/BEIGE,TRIM04
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK/BLACK/IVORY,TRIM01,51
BLACK/BLACK/DK.ROSE,TRIM31
BLACK/BLACK/BLUE,TRIM81
BLACK/BLACK/LT.GRAY,TRIM00,1#,2#,30,4#,50,6#,80
BLACK/BLACK/LT.GRAY,TRIM00,2#,3#,4#,50,8#
BLACK/BLACK/LT.GRAY,TRIM00,2#,30,4#,50,8#
BLACK/BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#,8#
BLACK/BLACK,TRIM00,01,2#,3#,4#,8#
BLACK/BLACK/LT.GRAY,TRIM00,02,2#,30,40,43,5#,8#
BLACK/BLACK/LT.GRAY,TRIM00,02,2#,30,40,5#,8#
BLACK/BLACK/LT.GRAY,TRIM00,02,04,2#,30,40,43,5#,8#
BLACK/BLACK/LT.GRAY,TRIM0#,1#,2#,30,40,41,43,5#,6#,8#
BLACK/BLACK/MELLOW WHITE,TRIM03
BLACK/BLACK/GARNET,TRIM45
BLACK/BLACK/ORANGE,TRIM42,44
BLACK/BLACK/ORANGE,TRIM44
BLACK/BLACK/BEIGE,TRIM02,04
BLACK/BLACK/BEIGE,TRIM02
BLACK/BLACK/RED,TRIM36
BLACK/BLACK/RED,TRIM35,36
BLACK/BLACK/RED,TRIM35,36,37,38
58906DOOR SUB-ASSY, UPPER CONSOLE
BLACK/IVORY,TRIM01,51
BLACK/DK.ROSE,TRIM31
BLACK/BLUE,TRIM81
BLACK/LT.GRAY,TRIM00,2#,3#,4#,50,8#
BLACK/LT.GRAY,TRIM00,2#,30,4#,50,8#
BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#,8#
BLACK/LT.GRAY,TRIM00,1#,2#,30,4#,50,6#,80
BLACK/LT.GRAY,TRIM00,02,2#,30,40,5#,8#
BLACK/LT.GRAY,TRIM00,02,2#,30,40,43,5#,8#
BLACK/LT.GRAY,TRIM0#,1#,2#,30,40,41,43,5#,6#,8#
BLACK/LT.GRAY,TRIM00,02,04,2#,30,40,43,5#,8#
BLACK/ WHITE,TRIM03
BLACK/GARNET,TRIM45
BLACK/ORANGE,TRIM44
BLACK/ORANGE,TRIM42,44
BLACK/BEIGE,TRIM02,04
BLACK/BEIGE,TRIM02
BLACK,TRIM00,01,2#,3#,4#,8#
BLACK/RED,TRIM36
BLACK/RED,TRIM35,36
BLACK/RED,TRIM35,36,37,38
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
58910CBOX ASSY, CONSOLE, REAR
BLACK/BLACK/LT.GRAY,TRIM00,1#,2#,30,4#,50,6#,80
sub58910-76013
BLACK/BLACK/LT.GRAY,TRIM00,1#,2#,30,4#,50,6#,80
sub58910-76014
BLACK/BLACK/LT.GRAY,TRIM0#,1#,2#,30,40,41,43,5#,6#,8#
sub58910-76014
BLACK/BLACK/LT.GRAY,TRIM00,02,2#,30,40,43,5#,8#
sub58910-76014
BLACK/BLACK/LT.GRAY,TRIM00,02,04,2#,30,40,43,5#,8#
BLACK/BLACK/MELLOW WHITE,TRIM03
BLACK/BLACK/GARNET,TRIM45
BLACK/BLACK/ORANGE,TRIM44
BLACK/BLACK/BEIGE,TRIM02,04
BLACK/BLACK/RED,TRIM35,36
58916MAT, BOX BOTTOM
AUDIO-AM/FM & DVD & EMV & 10SPEAKER
AUDIO-AM/FM & DVD & EMV & 13SPEAKER
AUDIO-*DA & DVD & 10SPEAKER
EMV & NAVIGATION SYSTEM-WITH(DVD)
AUDIO-*DA & DVD & 10SPEAKER
58923APANEL, CONSOLE REAR END
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
58925APOCKET, CONSOLE BOX, REAR
58959CCUSHION, CONSOLE COMPARTMENT DOOR
58993BRACKET, CONSOLE BOX MOUNTING, REAR
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
7403
8401
6777158020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-58020
9015950327
main90159-50327
9015960303
main90159-60303
9016150007
main90161-50007
9046710203
main90467-10203
9046805138
main90468-05138
91631J0612
main91631-J0612
9167380616
main91673-80616
9356855014
main93568-55014
40 parts on this diagram · 3 diagrams in section
