Toyota LEVIN — FRONT SPRING & SHOCK ABSORBER

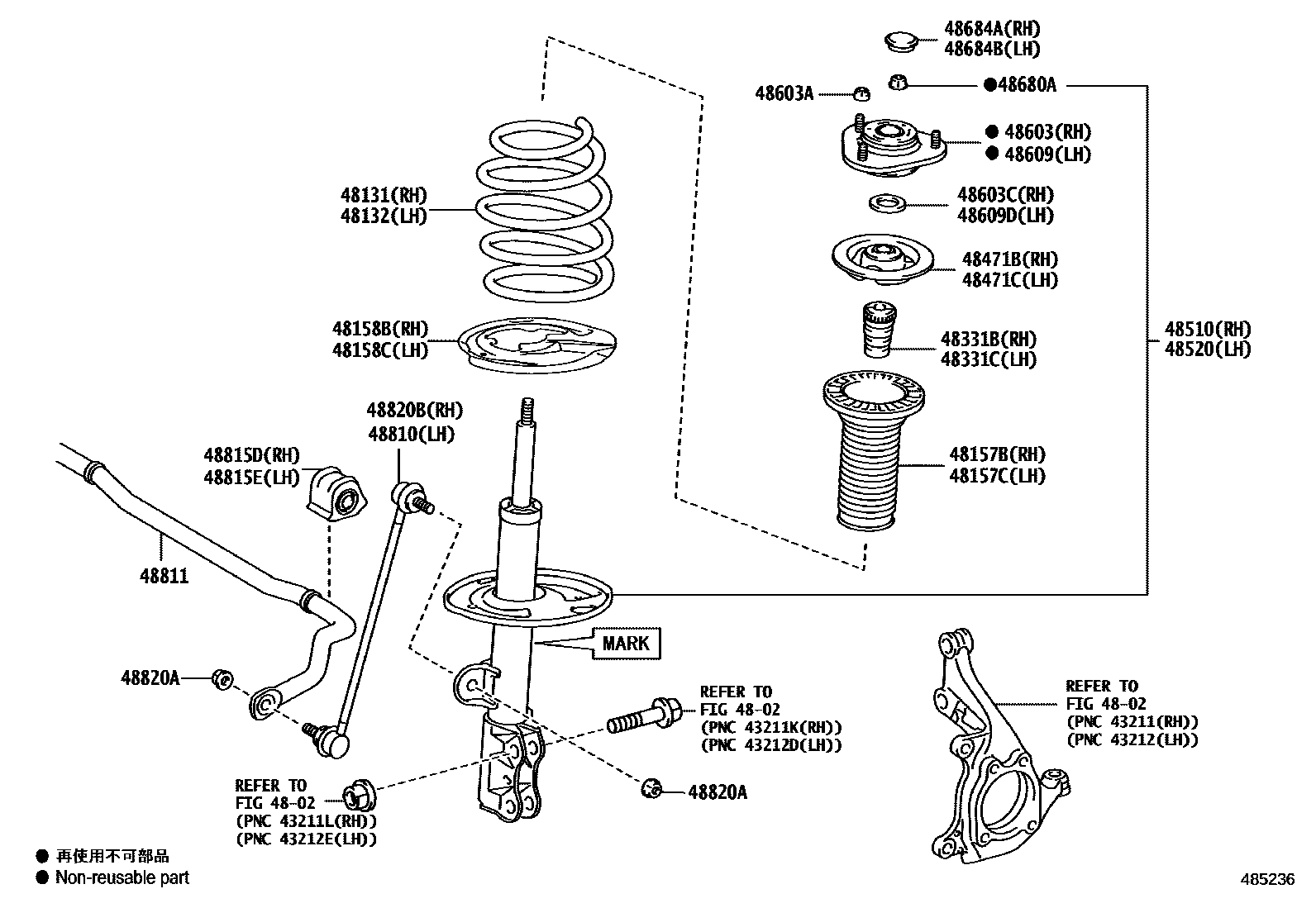

Parts diagram

4802

48131SPRING, FRONT COIL, RH

main48131-0Z650i201904

48132SPRING, FRONT COIL, LH

main48131-0Z650i201904

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-02310i201904

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-02310i201904

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-02220i201904

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-02220i201904

48331BBUMPER, FRONT SPRING, RH

main48331-02120i201904

48331CBUMPER, FRONT SPRING, LH

main48331-02120i201904

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-02170i201904

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-02170i201904

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z404i201904

MARK 48510-02S40

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-8Z258i201904

MARK 48520-02S40

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-02280i201904

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10030×6i201904

(J)

main90178-C0061×6i201904

(L)

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-C0001i201904

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-02280i201904

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-C0001i201904

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-14005×2i201904

(J)

main90177-C0007×2i201904

(L)

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-0F010i201904

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-0F010i201904

48810LINK ASSY, FRONT STABILIZER, LH

main48820-02080i201904

48811BAR, STABILIZER, FRONT

main48811-02460i201904

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-02450i201904

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-02440i201904

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-C0027×4i201904

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-02080i201904

27 parts on this diagram · 1 diagram in section
