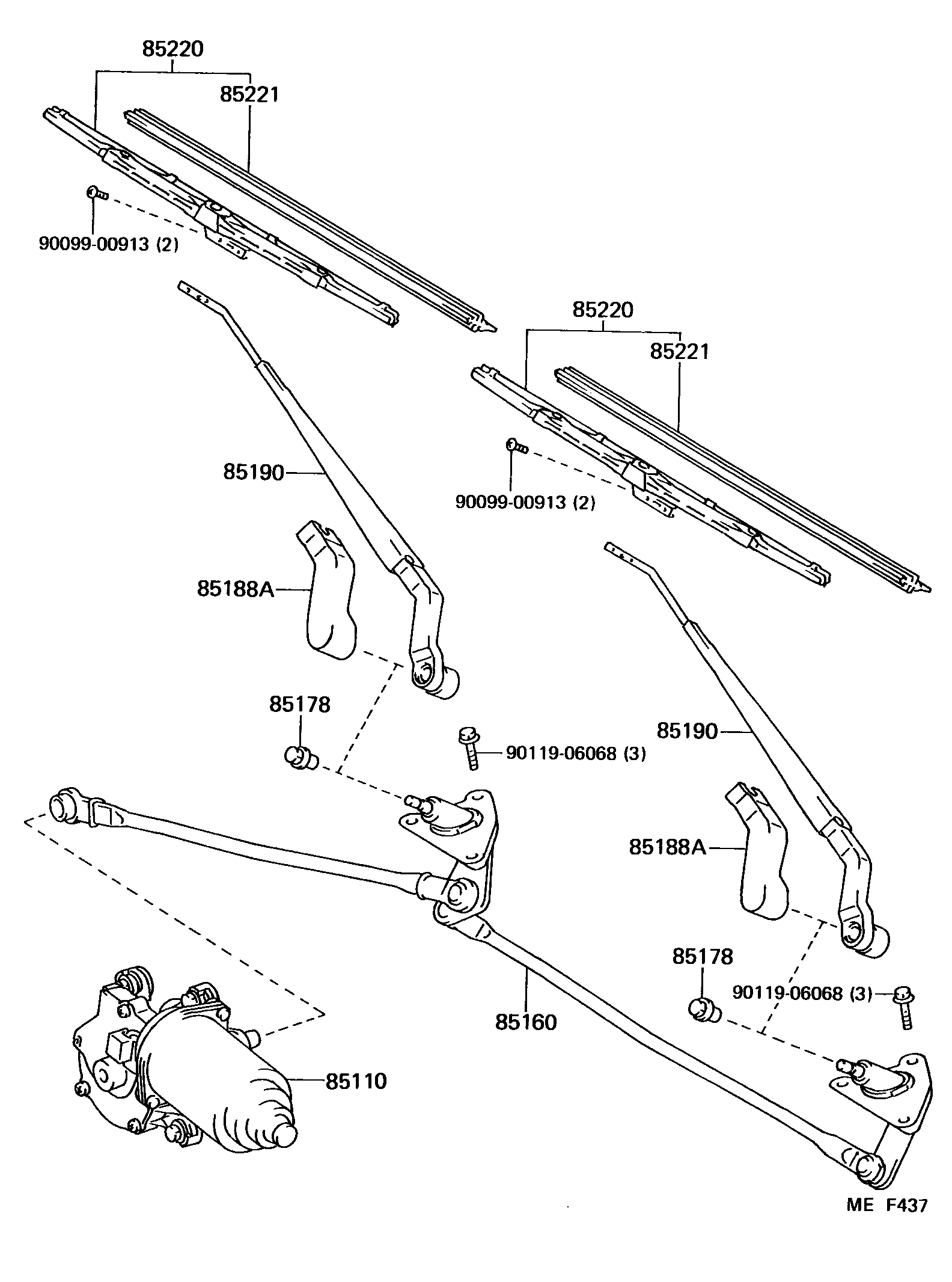

Toyota LAND CRUISER — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-90K04i198411-198510

main85110-90K07i198510-198707

85160LINK ASSY, WINDSHIELD WIPER

main85160-90K04i198411-198707

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08016×2i198411-198707

85188ACAP, WINDSHIELD WIPER PIVOT, NO.2

main85261-90K02×2i198411-198707

85190ARM ASSY, WINDSHIELD WIPER

main85190-90K03i198411-198707

main85210-90K03i198411-198707

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12500i198411-198707

main85220-22450i198411-198707

85221BLADE, WINDSHIELD WIPER

main85221-12210i198411-198707

main85221-22090i198411-198707

9009900913

main90099-00913

9011906068

main90119-06068

9 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota LAND CRUISER

This section contains 9 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota LAND CRUISER. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), CAP, WINDSHIELD WIPER PIVOT, NO.2, ARM ASSY, WINDSHIELD WIPER.
