Toyota LAND CRUISER — VACUUM PUMP

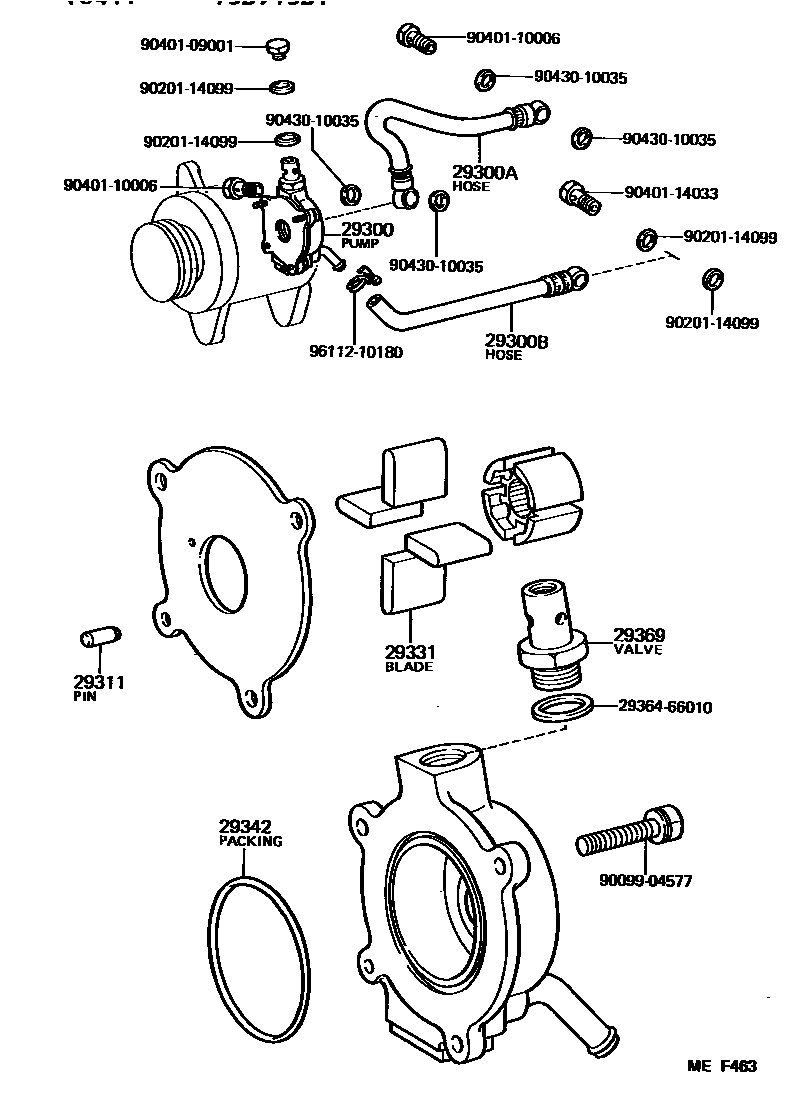

Parts diagram

29300PUMP ASSY, VACUUM

main29300-56070i198411-198707

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02072i198411-198707

29300BHOSE, VACUUM PUMP OIL OUTLET

main90923-02073i198411-198707

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i198411-198707

29331BLADE, VACUUM PUMP, A

main29331-56070×4i198411-198707

29342PACKING, VACUUM PUMP

main96740-02063i198411-198707

29369VALVE SUB-ASSY, CHECK

main29369-56070i198411-198707

2936466010WASHER, VACUUM PUMP

main29364-66010

9009904577

main90099-04577

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040114033

main90401-14033

9043010035

main90430-10035

9611210180

main96112-10180

15 parts on this diagram · 1 diagram in section

VACUUM PUMP for Toyota LAND CRUISER

This section contains 15 genuine Toyota parts for the VACUUM PUMP system of the Toyota LAND CRUISER. Key components include: PUMP ASSY, VACUUM, HOSE, VACUUM PUMP OIL INLET, HOSE, VACUUM PUMP OIL OUTLET, PIN, VACUUM PUMP DOWEL, NO.1, BLADE, VACUUM PUMP, A.
