Toyota LAND CRUISER — TRANSFER ASSEMBLY & GASKET KIT

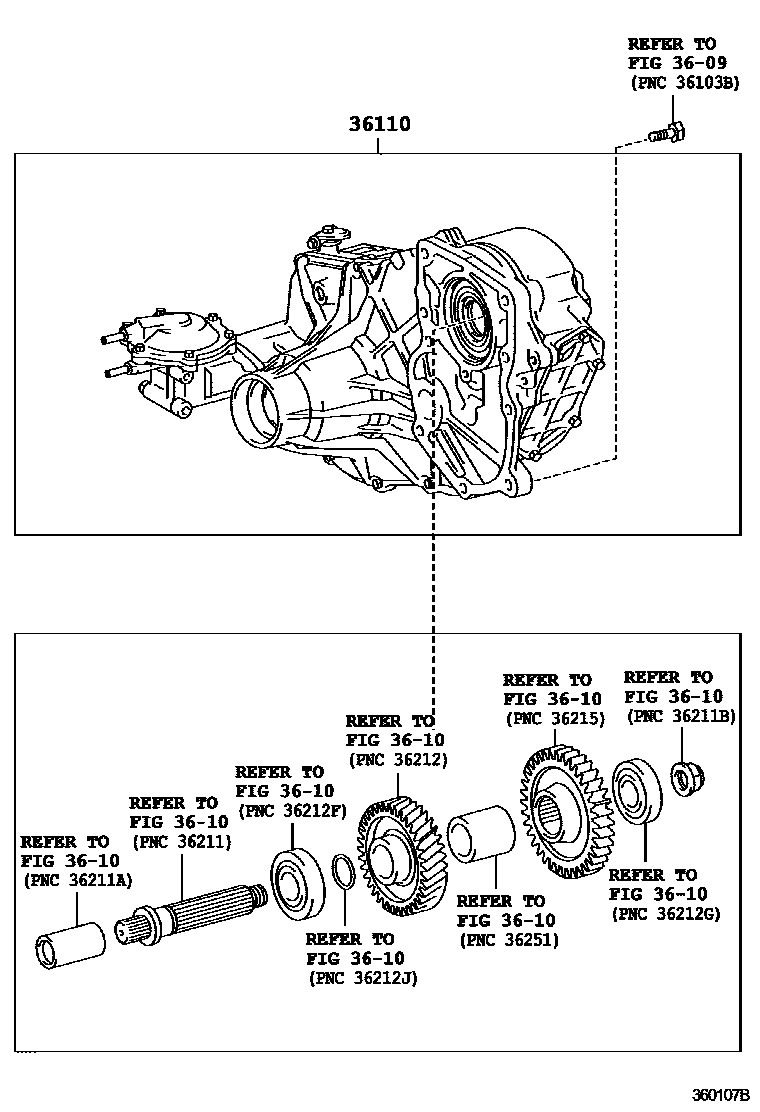

Parts diagram
3609TRANSFER CASE & EXTENSION HOUSING
→ Go to FIG 36-09
3610TRANSFER GEAR
→ Go to FIG 36-10
36110TRANSFER ASSY
main36110-6C020i199001-199201
*AXC=K305
main36110-6C030i199001-199201
main36110-6C040i199001-199201
*AXC=K305 & W(*ELC)
main36110-6C050i199001-199201
W(*ELC)
main36110-6C060i199001-199201
*AXC=K305
main36110-6C070i199001-199305
main36110-6C080i199201-199208
W(HR78-15 TIRE & *ELC)
main36110-6C100i199001-199201
*AXC=K305 & W(*ELC)
main36110-6C110i199305-200007
W(*ELC)
main36110-6C120i199201-199208
*AXC=K082 & W(HR78-15 TIRE & *ELC)
main36110-6C140i199004-199201
W(265/75R15 TIRE)
main36110-6C150i199001-199305
*AXC=G142,G144,G145; *AXC=G142,G144,G145 & W(205R16C6 TIRE)
main36110-6C180i199001-199305
*AXC=K252,K254,K255 & W(7.50R-16-8 TIRE)
main36110-6C190i199001-199201
main36110-6C200i199001-199201
W(205R16C6 TIRE)
main36110-6C210i199001-199305
*AXC=K252,K254,K255 & W(*ELC); W(*ELC)
main36110-6C220i199305-199604
W(*ELC); W(265/75R15 TIRE & *ELC)
main36110-6C230i199001-199305
*AXC=G142,G144,G145 & W(205R16C6 TIRE & *ELC); W(*ELC); W(205R16C6 TIRE & *ELC)
main36110-6C270i199001-199201
main36110-6C420i199001-199201
W(265/75R15 TIRE)
main36110-6C430i199212-199305
*AXC=K252,K254,K255 & W(*ELC & MECHANICAL WINCH); *FGR=41:9,W(*ELC)
main36110-6E180i199908-200612
main36110-6E181i200612-200701
main36110-6E200i199908-200108
W(*ELC)
main36110-6E201i200612-200701
W(*ELC)
main36120-60140i199305-199801
main36120-60141i199801-200104
main36120-60142i200104-200403
main36120-60150i199212-199305
W(275/70R16,265/75R15 OR 7.50-16 TIRE)
main36120-60151i199801-199908
W(7.50R16-8 TIRE) OR W(7.50R16-6 TIRE)
main36120-60152i200104-200106
main36120-60170i199305-199908
main36120-60340i199908-200104
main36120-60341i200104-200701
main36120-60350i199908-200104
main36120-60351i200104-200701
main36120-60360i199908-200104
main36120-60361i200104-200808
main36120-60371i200104-200808
main36130-60560i199201-199203
W(7.00-15-6 TIRE & *ELC)
main36130-60561i199801-199908
W(*ELC)
main36130-60570i199305-199501
W(*ELC); W(7.50R16-6 TIRE & *ELC)
main36130-60571i199801-199908
W(7.50R16-6 TIRE & *ELC)
main36130-60730i199212-199305
W(*ELC)
main36130-60740i199212-199305
W(*ELC)
main36130-6A370i199908-200104
W(*ELC)
main36130-6A371i200104-200701
W(*ELC)
main36130-6A420i199908-200104
W(*ELC)
main36130-6A421i200104-200701
W(*ELC)
main36130-6A440i199908-200104
W(*ELC)
main36130-6A441i200104-200605
W(*ELC)

3 parts on this diagram · 5 diagrams in section

TRANSFER ASSEMBLY & GASKET KIT for Toyota LAND CRUISER

This section contains 3 genuine Toyota parts for the TRANSFER ASSEMBLY & GASKET KIT system of the Toyota LAND CRUISER. Key components include: TRANSFER CASE & EXTENSION HOUSING, TRANSFER GEAR, TRANSFER ASSY.
