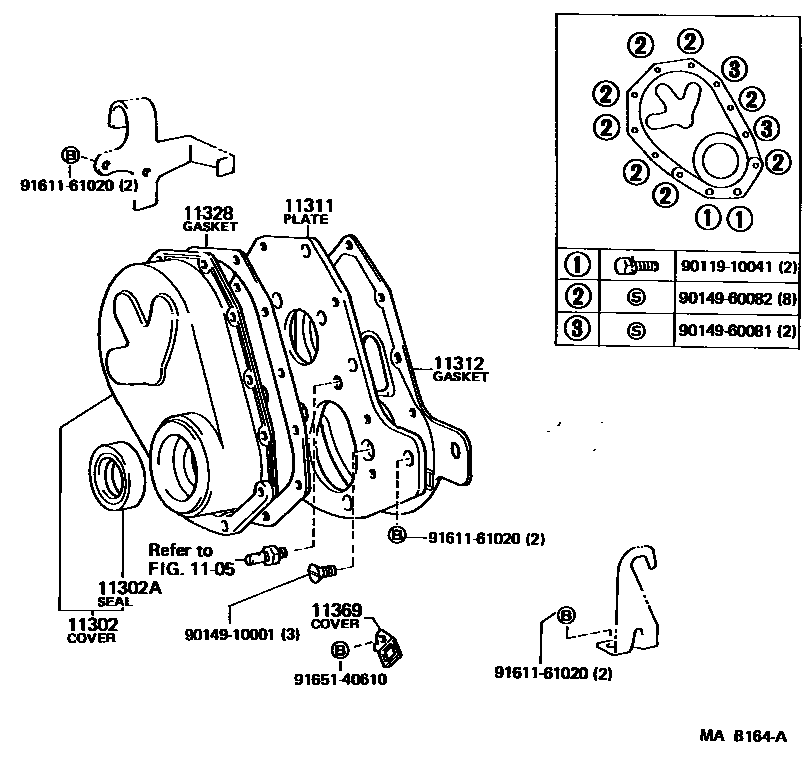

Toyota LAND CRUISER — TIMING GEAR COVER & REAR END PLATE
1105CYLINDER BLOCK
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
11311PLATE, FRONT END
11312GASKET, FRONT END PLATE
11328GASKET, TIMING GEAR OR CHAIN COVER
11369COVER, FLYWHEEL HOUSING FRONT
9011910041
main90119-10041
9014910001
main90149-10001
9014960081
main90149-60081
9014960082
main90149-60082
9161161020
main91611-61020
9165140610
main91651-40610
13 parts on this diagram · 1 diagram in section
TIMING GEAR COVER & REAR END PLATE for Toyota LAND CRUISER
This section contains 13 genuine Toyota parts for the TIMING GEAR COVER & REAR END PLATE system of the Toyota LAND CRUISER. Key components include: CYLINDER BLOCK, COVER SUB-ASSY, TIMING CHAIN OR BELT, SEAL, OIL(FOR TIMING CHAIN OR BELT COVER), PLATE, FRONT END, GASKET, FRONT END PLATE.
