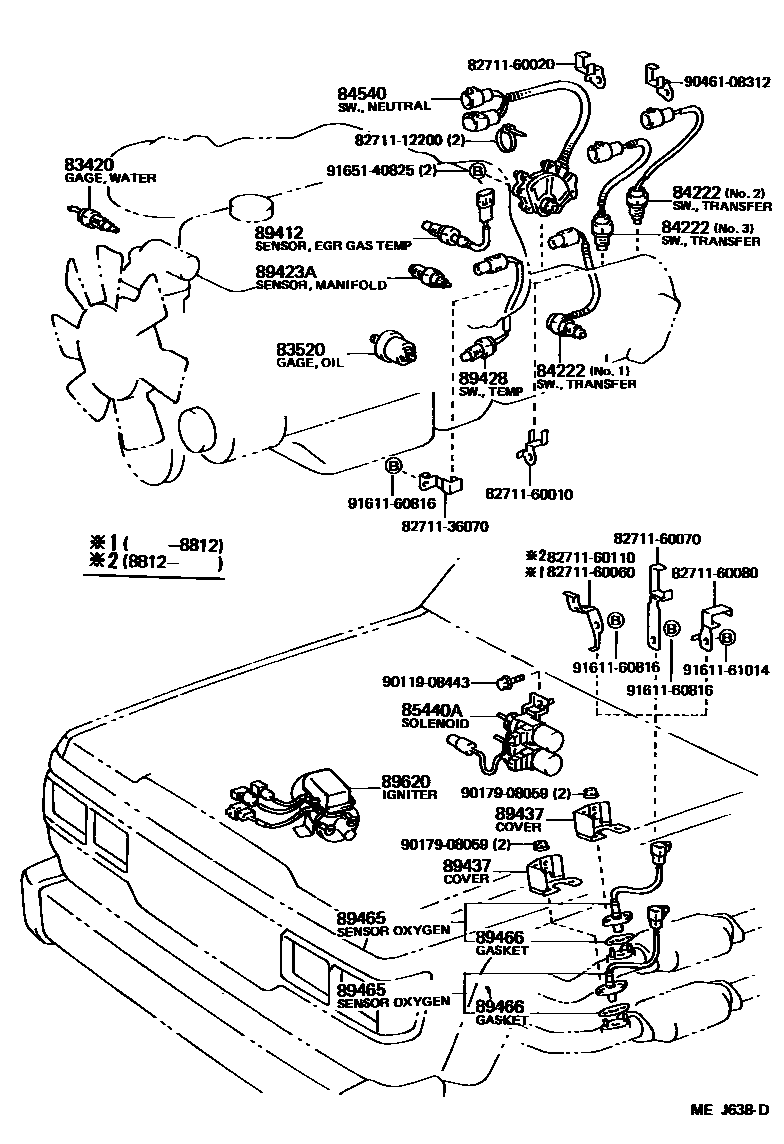

Toyota LAND CRUISER — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iFJ62198708-199001

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60010iFJ62198708-199001

sub83520-60011

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-60021iFJ62198708-199001

NO.1

main84222-60030iFJ62198708-199001

NO.2

main84222-60040iFJ62198708-199001

NO.3

sub84222-60041

main84222-60071×2iFJ62198708-199001

NO.4

84540SWITCH ASSY, NEUTRAL START

main84540-60020iFJ62198708-199001

85440ASOLENOID ASSY, FOUR WHEEL DRIVE CONTROL

main85440-60120iFJ62198708-199001

89412SENSOR, E.G.R GAS TEMPERATURE

main89412-12010iFJ62..USA198708-199001

CARIFORNIA SPEC

89423ASENSOR, MANIFOLD TEMPERATURE

main89423-60020iFJ62198708-199001

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-36010iFJ62198708-199001

89437COVER, SENSOR

main89437-60010×2iFJ62198708-199001

89465SENSOR, OXYGEN

main89465-69015×2iFJ62198708-199001

89466GASKET, OXYGEN SENSOR

main89466-20020×2iFJ62198810-199001

main89466-30010×2iFJ62198708-198810

89620IGNITER ASSY

main89620-14410iFJ62198708-199001

sub89620-22420

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271136070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36070

8271160010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60010

8271160020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60020

8271160060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60060

8271160070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60070

8271160080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60080

8271160110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60110

9011908443

main90119-08443

9017908059

main90179-08059

9046108312

main90461-08312

9161160816

main91611-60816

9161161014

main91611-61014

9165140825

main91651-40825

26 parts on this diagram · 5 diagrams in section
