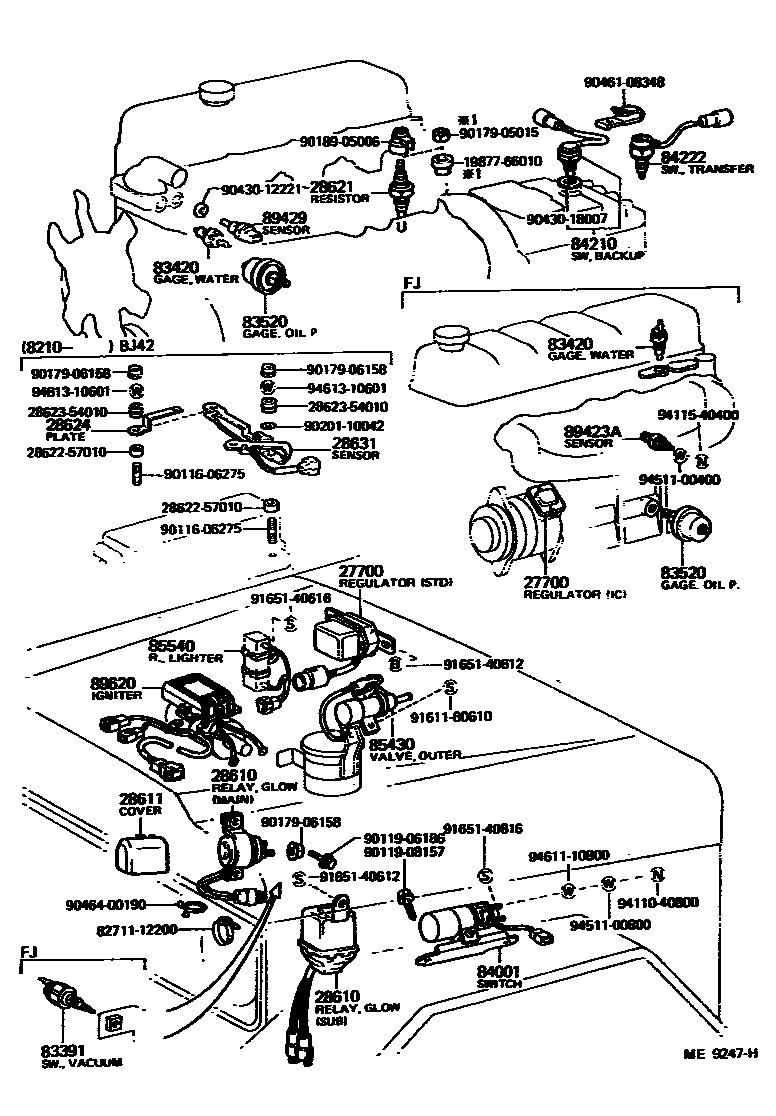

Toyota LAND CRUISER — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1

27700REGULATOR ASSY, GENERATOR

main27700-13060i2F..FJ40..USA198008-198309

STD TYPE

main27700-38100i2F..FJ40198008-198309

IC TYPE

sub27700-28030

main27700-57030i3B..BJ42198008-198410

STD TYPE

28610RELAY ASSY, INTAKE HEATER OR GLOW PLUG

main28610-46040i3B..BJ42198008-198104

main28610-46041i3B..BJ42198104-198110

main28610-54180i3B..BJ42198110-198410

SUB

main28610-57030i3B..BJ42198110-198410

MAIN

28611COVER, GLOW PLUG RELAY

main28611-54011i3B..BJ42198110-198410

28621RESISTOR, GLOW PLUG

main28621-57010i3B..BJ42198110-198201

sub19877-66010

sub90179-05015

main28621-57011i3B..BJ42198201-198410

28624PLATE, CURRENT SENSOR

main28624-57010i3B..BJ42198110-198410

28631SENSOR, GLOW PLUG CURRENT

main28631-57010i3B..BJ42198110-198410

83391SWITCH, VACUUM

main83391-12050iFJ40..USA198008-198309

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iBJ42,FJ40198008-198410

YAZAKI

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14021iFJ40198008-198309

W/OIL COOLER

sub83520-14022

main83520-55011iFJ40198008-198301

main83520-55020iBJ42198008-198301

main83520-60010iFJ40198301-198309

sub83520-60011

main83520-60020iBJ42198301-198410

84001SWITCH ASSY, MAGNET

main38630-60010iFJ40198008-198309

main38630-60030iBJ42198008-198410

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iBJ42,FJ40198008-198410

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-60020iBJ42,FJ40198210-198301

main84222-60021iBJ42,FJ40198301-198410

85430VALVE, OUTER VENT CONTROL

main85430-60010iFJ40..USA198008-198309

85540RESISTANCE ASSY, CIGARETTE LIGHTER

main85540-36030iBJ42198008-198110

main85540-60010iBJ42198303-198410

89423ASENSOR, MANIFOLD TEMPERATURE

main89423-60020iFJ40..USA198008-198309

89429SENSOR, OIL TEMPERATURE

main89422-30020iBJ42198110-198410

sub89422-12010

89620IGNITER ASSY

main89620-60051iFJ40..CND198008-198110

sub89620-60H91

main89620-60070iFJ40..USA198008-198309

1987766010

main19877-66010

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011606275

main90116-06275

9011906186

main90119-06186

9011908157

main90119-08157

9017905015

main90179-05015

9017906158

main90179-06158

9018905006

main90189-05006

9020110042

main90201-10042

9043008007

main90430-08007

9043012221

main90430-12221

9046108348

main90461-08348

9046400190

main90464-00190

9161160610

main91611-60610

9165140612

main91651-40612

9165140616

main91651-40616

9165140816

main91651-40816

9411040800

main94110-40800

9411540400

main94115-40400

9451100400

main94511-00400

9451100800

main94511-00800

9461110800

main94611-10800

9461310601

main94613-10601

42 parts on this diagram · 3 diagrams in section
