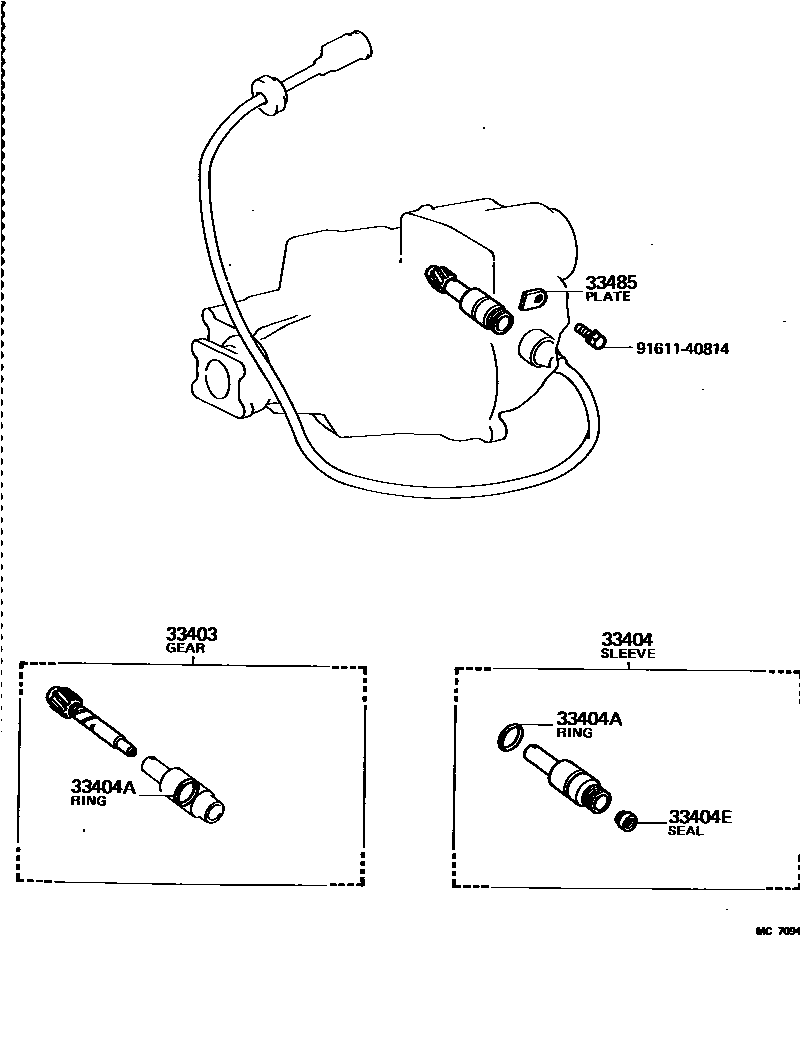

Toyota LAND CRUISER — SPEEDOMETER DRIVEN GEAR (MTM)
33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
N=16,MARK 16:6,N=16
33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
9161140814
main91611-40814
6 parts on this diagram · 1 diagram in section
SPEEDOMETER DRIVEN GEAR (MTM) for Toyota LAND CRUISER
This section contains 6 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (MTM) system of the Toyota LAND CRUISER. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM), SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM), RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE), SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE), PLATE, SPEEDOMETER SLEEVE LOCK (MTM).
