Toyota LAND CRUISER — SPEAKER

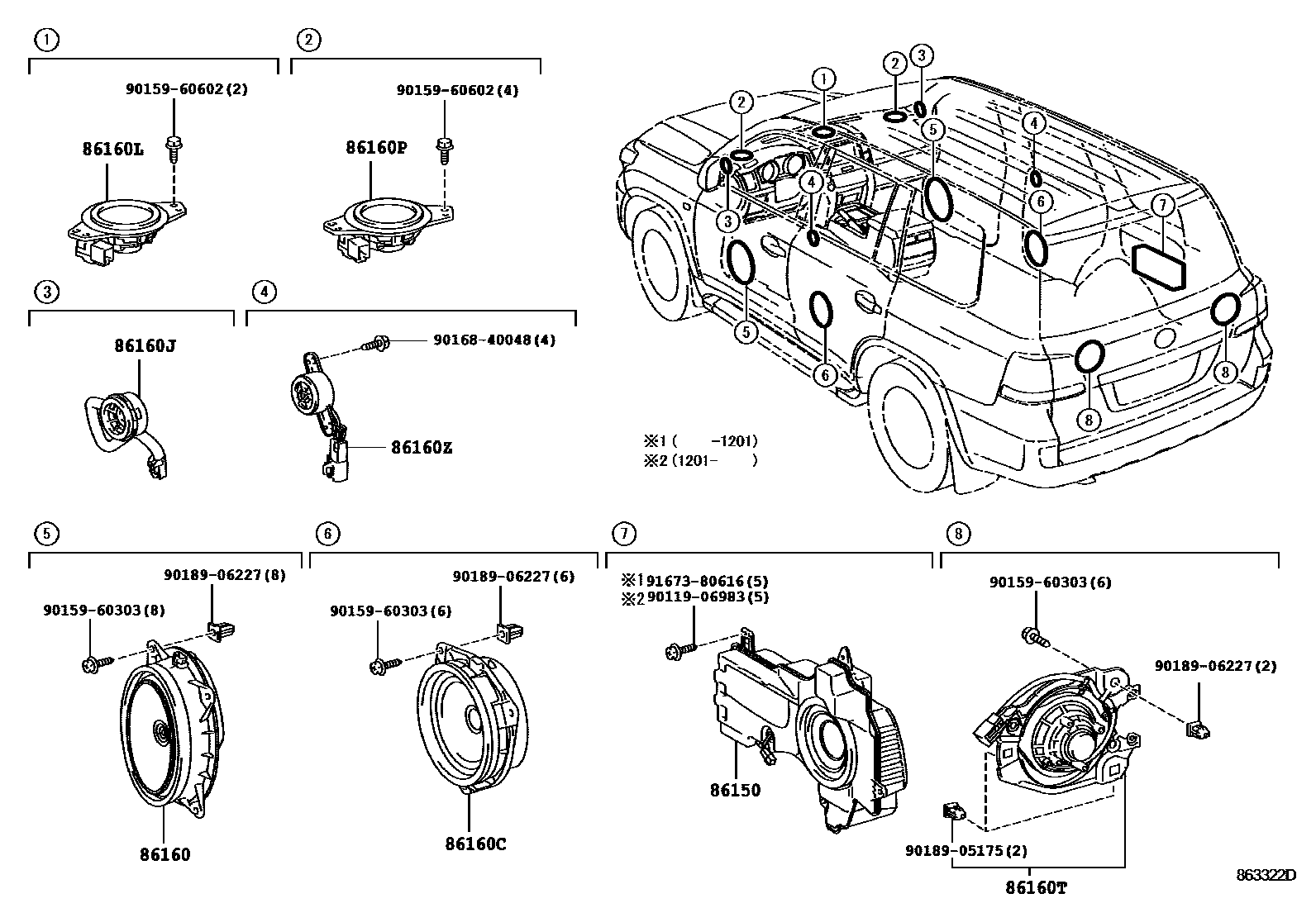

Parts diagram

86150SPEAKER ASSY, W/BOX, NO.1

main86150-0W110i200709-201201

main86150-0W111i201503-201508

main86150-60180i201706-202104

86160SPEAKER ASSY, FRONT NO.1

main86160-0WJ50×2i200709-201201

main86160-60670×2i201706-202104

86160CSPEAKER SET, REAR

main86160-0WK90×2i200709-201201

main86160-60680×2i201706-202104

86160JSPEAKER ASSY, FRONT NO.3

main86150-60260×2i201902-202104

main86160-0WJ70×2i201508-201901

86160LSPEAKER ASSY, FRONT NO.4

main86160-0WK50i200709-201201

main86160-60660i201706-202104

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WJ60×2i201508-201706

main86160-60600×2i201706-202104

86160TSPEAKER ASSY, REAR HEADER

main86160-0WK70×2i200709-201201

main86160-60690×2i201706-202104

86160ZSPEAKER ASSY, REAR NO.3

main86150-60270×2i201902-202104

main86160-0WK10×2i200709-201201

9011906983

main90119-06983

9015960303

main90159-60303

9015960602

main90159-60602

9016840048

main90168-40048

9018905175

main90189-05175

9018906227

main90189-06227

9167380616

main91673-80616

15 parts on this diagram · 1 diagram in section

SPEAKER for Toyota LAND CRUISER

This section contains 15 genuine Toyota parts for the SPEAKER system of the Toyota LAND CRUISER. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, FRONT NO.1, SPEAKER SET, REAR, SPEAKER ASSY, FRONT NO.3, SPEAKER ASSY, FRONT NO.4.
