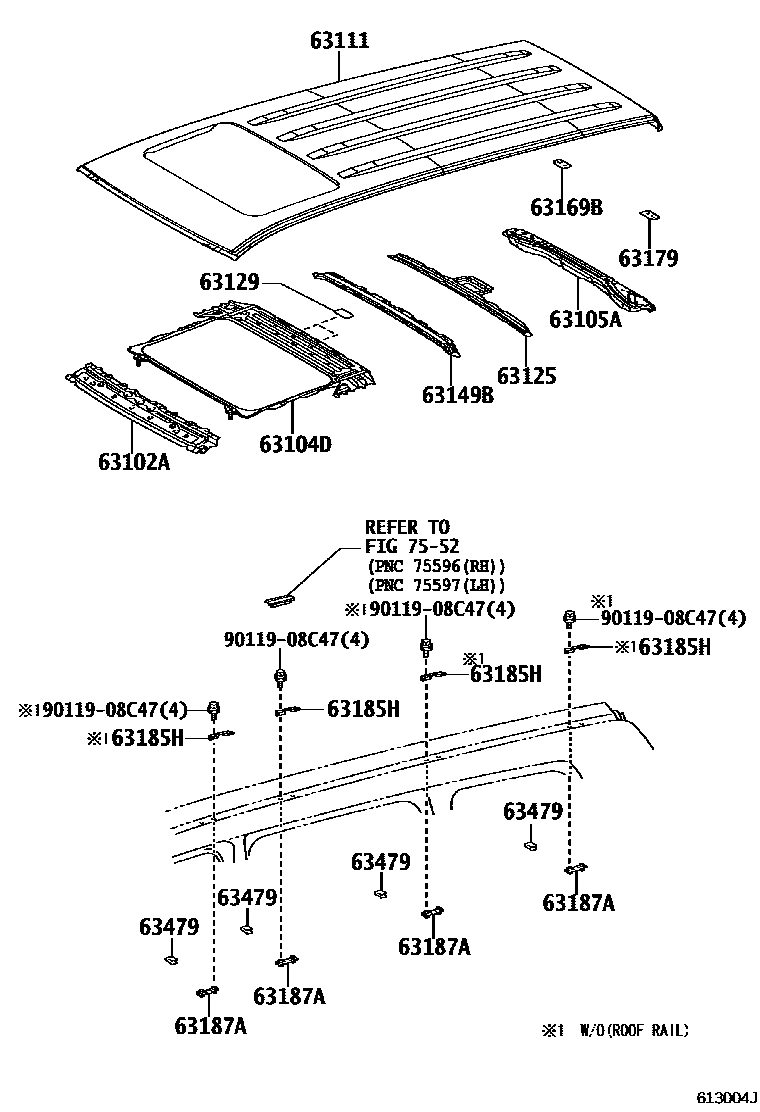

Toyota LAND CRUISER — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60110iURJ200200709-202104

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-60060iURJ200200709-202104

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60280iURJ200200709-202104

63111PANEL, ROOF

main63111-60580iURJ200200709-200907

main63111-60590iURJ200200907-201508

main63111-60800iURJ200201508-202104

63125REINFORCEMENT, ROOF PANEL, NO.2

main63107-60040iURJ200200709-202104

63129PROTECTOR, WINDSHIELD HEADER

main63129-60030iURJ200201904-202104

63149BREINFORCEMENT, ROOF PANEL, NO.1 REAR

main63149-60010iURJ200200709-202104

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-60020iURJ200200709-202104

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-60010iURJ200200709-202104

63185HBRACKET, ROOF RACK

main63185-42020iURJ200200709-202104

ROOF RACK-ROOF RAIL ONLY(FOR CROSS BAR)

63187ABRACKET, ROOF RACK, REAR

main63187-60040iURJ200200709-202104

63479RETAINER, ROOF INNER RACK

main63479-60020iURJ200200709-202104

7552MOULDING

→ Go to FIG 75-52

9011908C47

main90119-08C47

14 parts on this diagram · 3 diagrams in section
