Toyota LAND CRUISER — ROOF PANEL & BACK PANEL

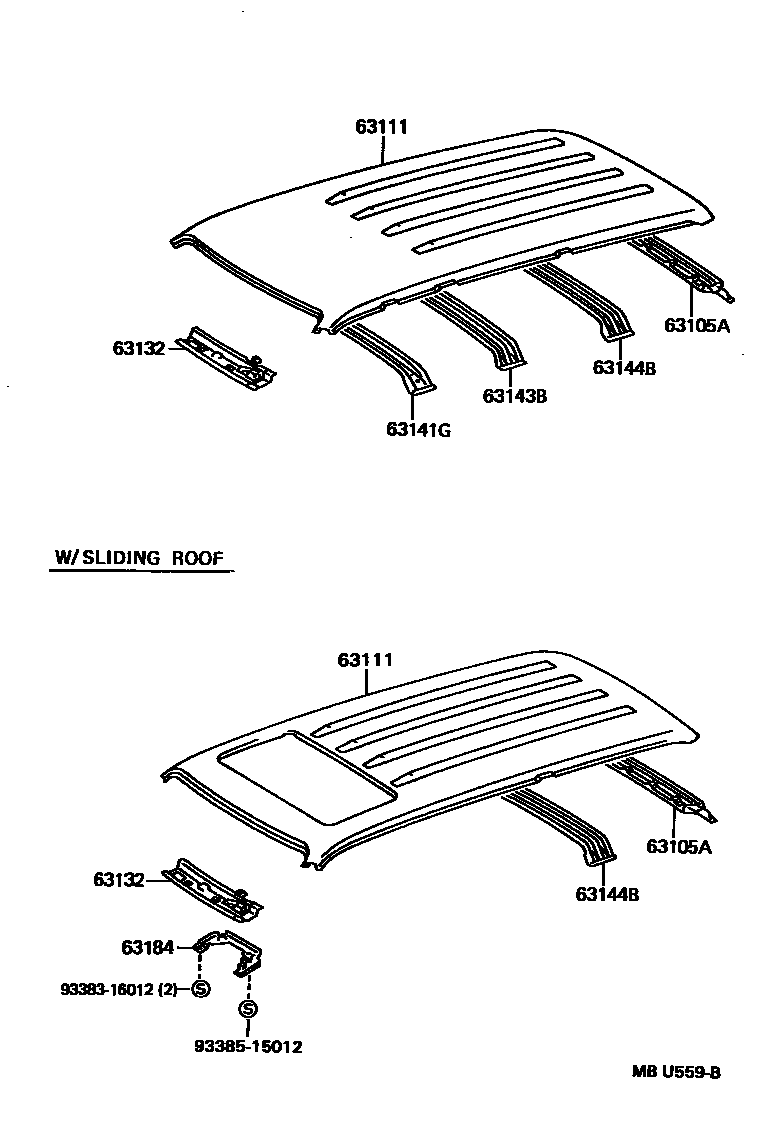

Parts diagram
63105AFRAME SUB-ASSY, BACK DOOR OPENING
main63105-60020i199001-199208
main63105-60030i199001-199208
W(REAR TRANSVERSE SEAT)
main63105-60100i199208-199501
main63105-60130i199501-199801
63111PANEL, ROOF
main63014-60020i199001-199801
W(*MR)
main63111-60190i199001-199801
63132PANEL, WINDSHIELD HEADER, INNER
main63103-60010i199001-199106
main63103-60011i199106-199501
main63103-60012i199501-199801
main63103-60020i199001-199106
W(*MR)
main63103-60021i199106-199501
W(*MR)
main63103-60022i199501-199801
W(*MR)
63141GREINFORCEMENT, ROOF PANEL, NO.1
main63141-60010i199001-199801
63143BREINFORCEMENT, ROOF PANEL, NO.3
main63143-60010i199001-199801
63144BREINFORCEMENT, ROOF PANEL, NO.4
main63144-60010i199001-199501
63184BRACKET, ROOF CONSOLE, REAR
main63184-60020i199001-199801
9338316012
main93383-16012
9338515012
main93385-15012

9 parts on this diagram · 2 diagrams in section

ROOF PANEL & BACK PANEL for Toyota LAND CRUISER

This section contains 60 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota LAND CRUISER. Key components include: FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER, REINFORCEMENT, ROOF PANEL, NO.1, REINFORCEMENT, ROOF PANEL, NO.3.
