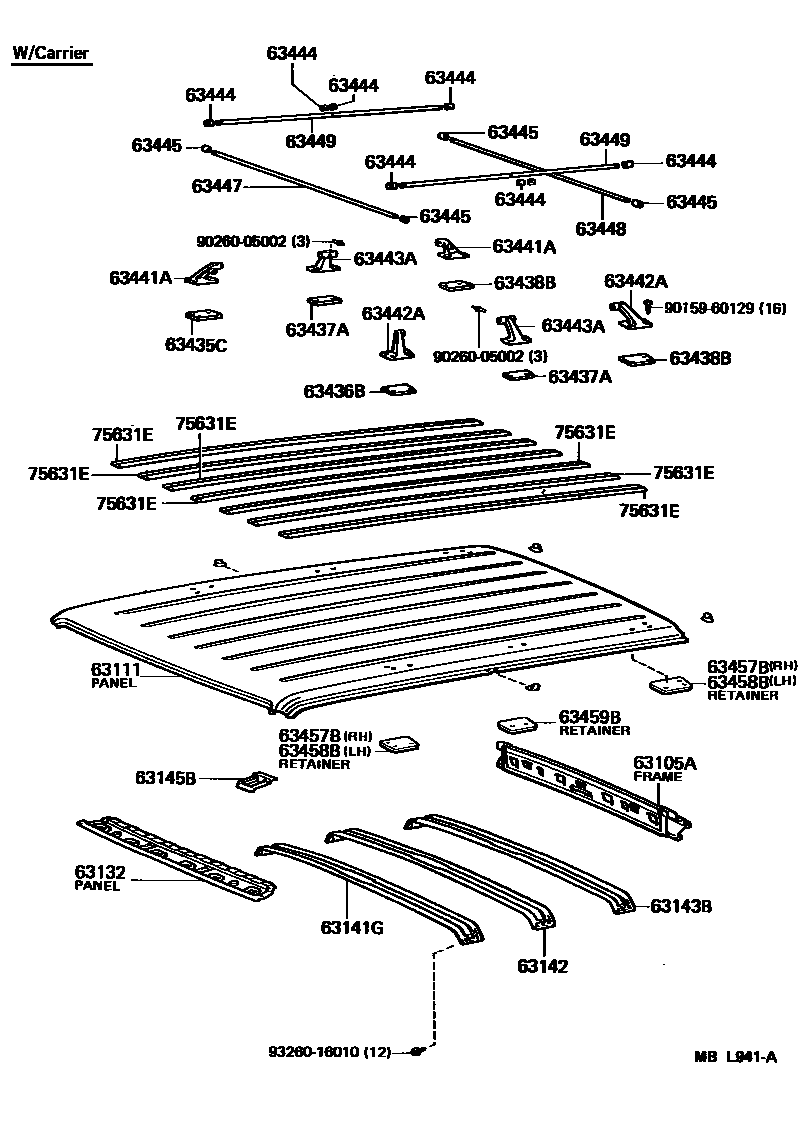

Toyota LAND CRUISER — ROOF PANEL & BACK PANEL
63105AFRAME SUB-ASSY, BACK DOOR OPENING
63111PANEL, ROOF
W(ROOF CARRIER)
63132PANEL, WINDSHIELD HEADER, INNER
63141GREINFORCEMENT, ROOF PANEL, NO.1
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63145BREINFORCEMENT, WINDSHIELD HEADER PANEL
63435CSEAL, ROOF CARRIER, NO.1 RH
63436BSEAL, ROOF CARRIER, NO.1 LH
63437ASEAL, ROOF CARRIER, NO.2
63438BSEAL, ROOF CARRIER, NO.3 RH
RH
LH
63441ASUPPORT, ROOF CARRIER, NO.1 RH
FR
RR
63442ASUPPORT, ROOF CARRIER, NO.1 LH
RR
FR
63443ASUPPORT, ROOF CARRIER, NO.2
63444PROTECTOR, ROOF CARRIER, NO.1
63445PROTECTOR, ROOF CARRIER, NO.2
63447BAR, ROOF CARRIER, FRONT
63448BAR, ROOF CARRIER, REAR
63449BAR, ROOF CARRIER SIDE
63457BRETAINER, ROOF CARRIER, NO.1 RH
63458BRETAINER, ROOF CARRIER, NO.1 LH
63459BRETAINER, ROOF CARRIER, NO.2
75631EMOULDING, ROOF CARRIER
9015960129
main90159-60129
9026005002
main90260-05002
9326016010
main93260-16010
26 parts on this diagram · 1 diagram in section
ROOF PANEL & BACK PANEL for Toyota LAND CRUISER
This section contains 26 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota LAND CRUISER. Key components include: FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER, REINFORCEMENT, ROOF PANEL, NO.1, REINFORCEMENT, ROOF PANEL, NO.2.
