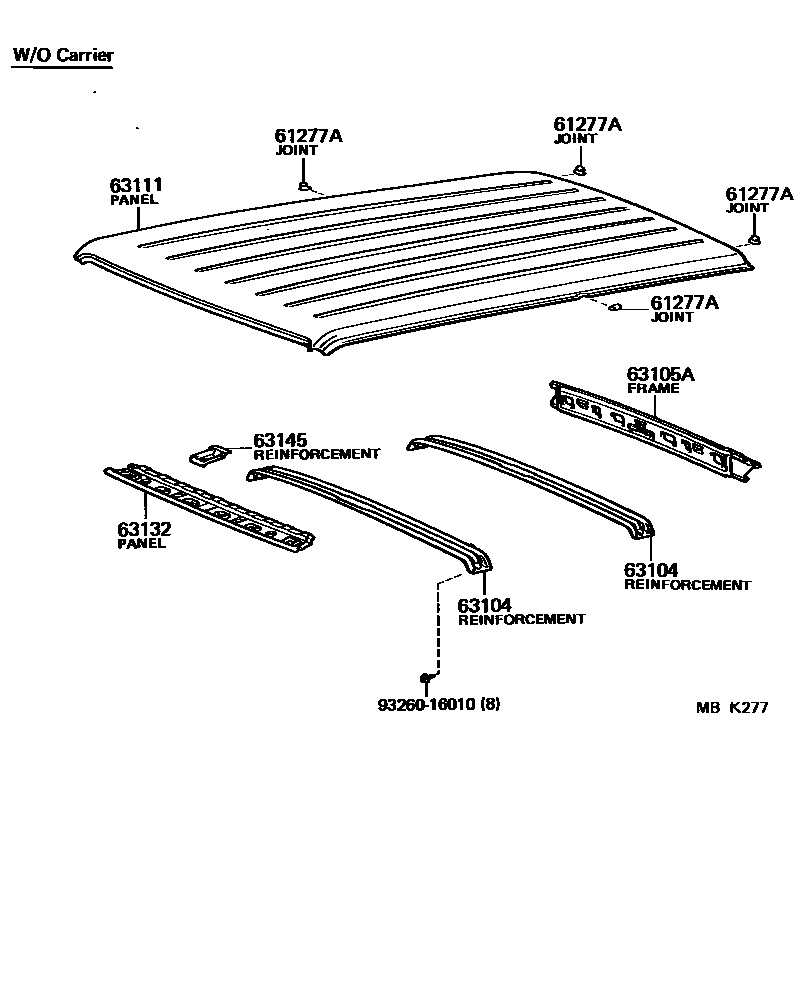

Toyota LAND CRUISER — ROOF PANEL & BACK PANEL

61277AJOINT, ROOF DRIP CHANNEL

main61277-90A00×4i198008-198110

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-90A00×3i198008-198110

W/ROOF CARRIER

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-90A00i198008-198708

63111PANEL, ROOF

main63111-90A00i198110-198708

W/O ROOF CARRIER

main63111-90A01i198008-198708

W/ROOF CARRIER

63132PANEL, WINDSHIELD HEADER, INNER

main63132-90A00i198008-198708

63145REINFORCEMENT, WINDSHIELD HEADER INNER PANEL

main63145-90A00i198008-198708

9326016010

main93260-16010

7 parts on this diagram · 2 diagrams in section

ROOF PANEL & BACK PANEL for Toyota LAND CRUISER

This section contains 27 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota LAND CRUISER. Key components include: JOINT, ROOF DRIP CHANNEL, REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER.
