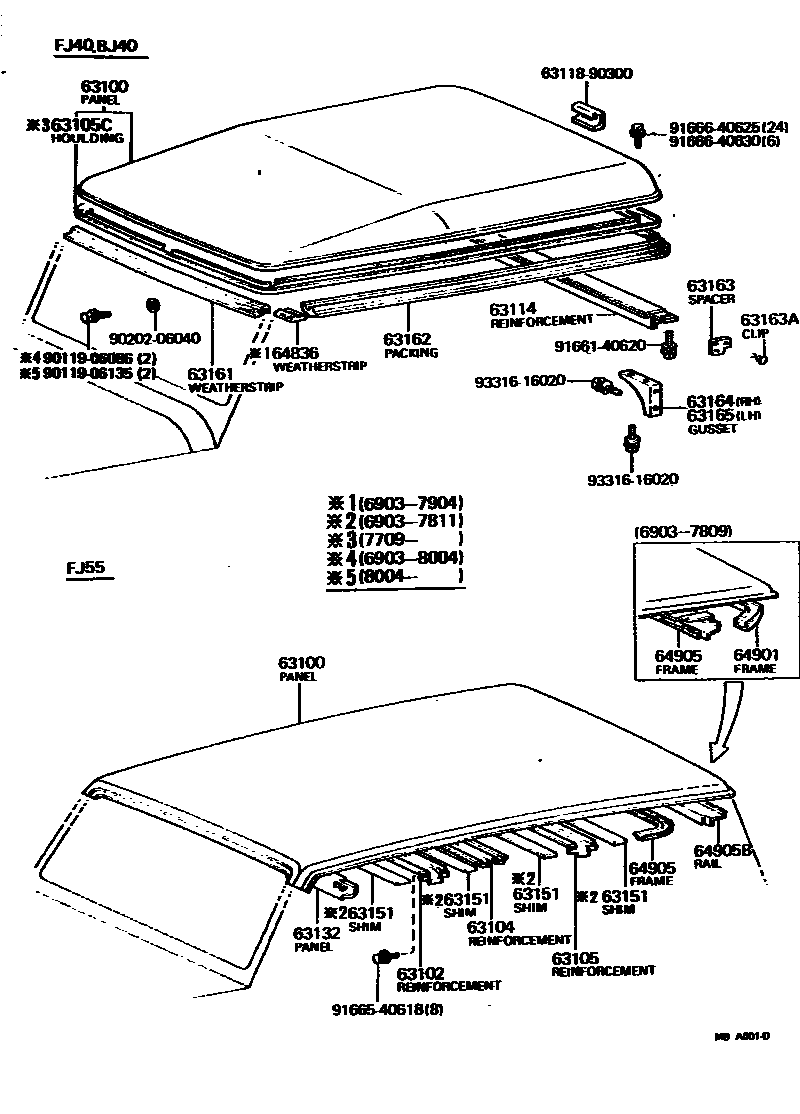

Toyota LAND CRUISER — ROOF PANEL & BACK PANEL
63100PANEL ASSY, ROOF
63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63105CMOULDING SUB-ASSY, ROOF DRIP
63114REINFORCEMENT, ROOF PANEL, REAR
63132PANEL, WINDSHIELD HEADER, INNER
63151SHIM, ROOF REINFORCEMENT
70X1200
70X580
63161WEATHERSTRIP, ROOF
63162PACKING, ROOF DRIP MOULDING
63163SPACER, ROOF DRIP MOULDING STRENGTH
RH.
LH.
63163ACLIP, SPRING(FOR ROOF DRIP MOULDING STRENGTH SPACER SET)
63164GUSSET, ROOF DRIP MOULDING, RH
63165GUSSET, ROOF DRIP MOULDING, LH
64836WEATHERSTRIP, ROOF, FRONT
64901FRAME SUB-ASSY, BACK
64905FRAME SUB-ASSY, BACK UPPER
64905BRAIL SUB-ASSY, REAR UPPER PILLAR
6311890300SUPPORT, ROOF PANEL, RH
main63118-90300
9011906086
main90119-06086
9011906135
main90119-06135
9020206040
main90202-06040
9166140620
main91661-40620
9166540618
main91665-40618
9166640625
main91666-40625
9166640630
main91666-40630
9331616020
main93316-16020
27 parts on this diagram · 2 diagrams in section
ROOF PANEL & BACK PANEL for Toyota LAND CRUISER
This section contains 47 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota LAND CRUISER. Key components include: PANEL ASSY, ROOF, REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT, REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER, REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR, MOULDING SUB-ASSY, ROOF DRIP.
