Toyota LAND CRUISER — ROOF PANEL & BACK PANEL

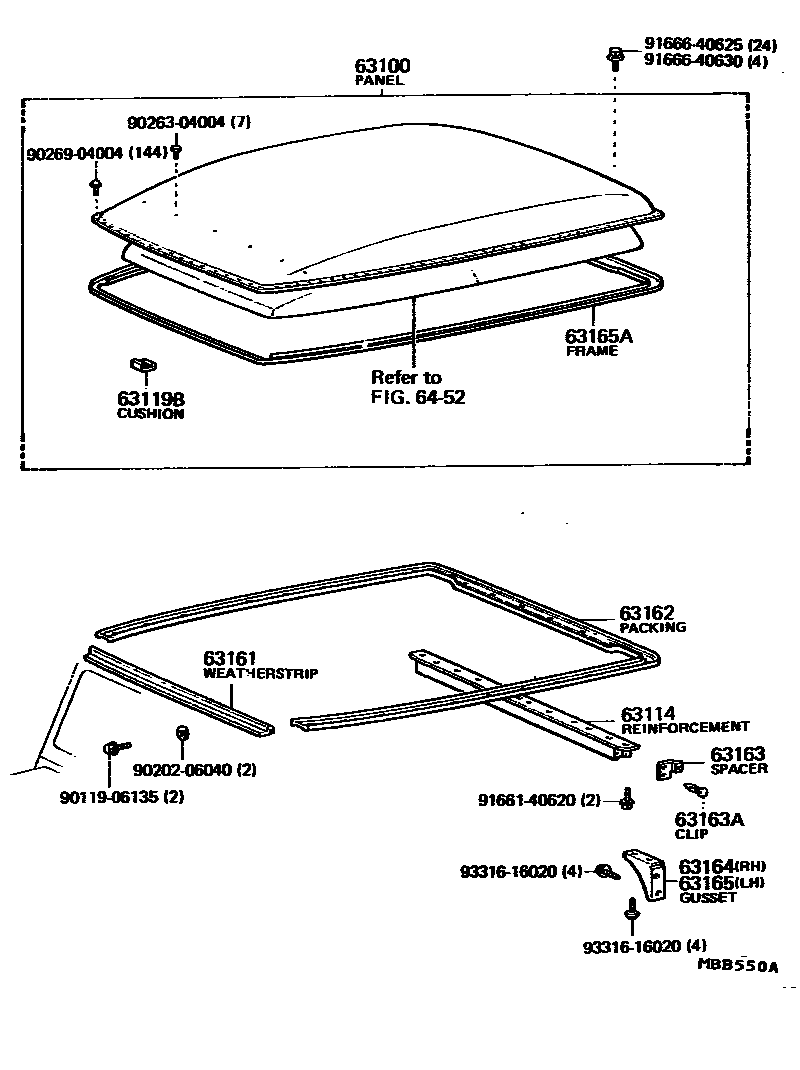

Parts diagram

63100PANEL ASSY, ROOF

main63100-90801i198008-198410

63114REINFORCEMENT, ROOF PANEL, REAR

main63106-90303i198008-198410

63119BCUSHION, ROOF DRIP MOULDING, FRONT

main63119-90300i198008-198410

63161WEATHERSTRIP, ROOF

main63161-60011i198008-198410

63162PACKING, ROOF DRIP MOULDING

main63168-90306i198008-198410

63163SPACER, ROOF DRIP MOULDING STRENGTH

main63167-90302i198008-198410

RH

main63168-90302i198008-198410

LH

63163ACLIP, SPRING(FOR ROOF DRIP MOULDING STRENGTH SPACER SET)

main90467-04100×6i198008-198410

63164GUSSET, ROOF DRIP MOULDING, RH

main63165-60010i198008-198410

63165GUSSET, ROOF DRIP MOULDING, LH

main63166-60010i198008-198410

63165AFRAME, ROOF DRIP

main63165-90801i198008-198410

6452ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-52

9011906135

main90119-06135

9020206040

main90202-06040

9026304004

main90263-04004

9026904004

main90269-04004

9166140620

main91661-40620

9166640625

main91666-40625

9166640630

main91666-40630

9331616020

main93316-16020

19 parts on this diagram · 1 diagram in section

ROOF PANEL & BACK PANEL for Toyota LAND CRUISER

This section contains 19 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota LAND CRUISER. Key components include: PANEL ASSY, ROOF, REINFORCEMENT, ROOF PANEL, REAR, CUSHION, ROOF DRIP MOULDING, FRONT, WEATHERSTRIP, ROOF, PACKING, ROOF DRIP MOULDING.
