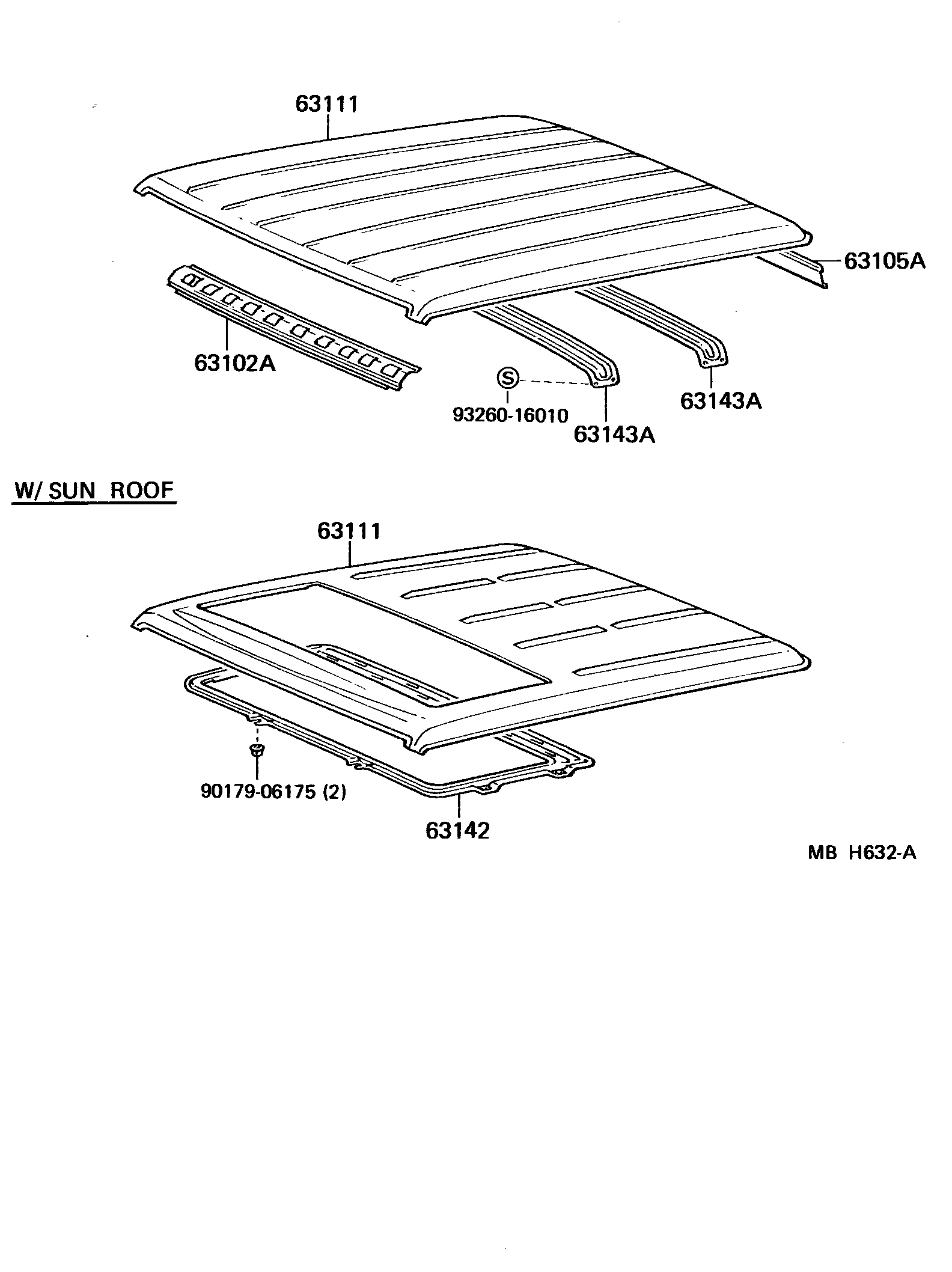

Toyota LAND CRUISER — ROOF PANEL & BACK PANEL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-90K00i198411-198510

main63102-90K02i198510-198707

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-90K00i198411-198608

main63105-90K08i198608-198707

63111PANEL, ROOF

main63111-90K00i198411-198707

main63111-90K03i198411-198707

W/SUN ROOF

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-30010i198411-198707

63143AREINFORCEMENT, ROOF PANEL

main63141-90K00i198411-198707

9017906175

main90179-06175

9326016010

main93260-16010

7 parts on this diagram · 2 diagrams in section

ROOF PANEL & BACK PANEL for Toyota LAND CRUISER

This section contains 35 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota LAND CRUISER. Key components include: PANEL SUB-ASSY, WINDSHIELD HEADER, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, REINFORCEMENT, ROOF PANEL, NO.2, REINFORCEMENT, ROOF PANEL.
