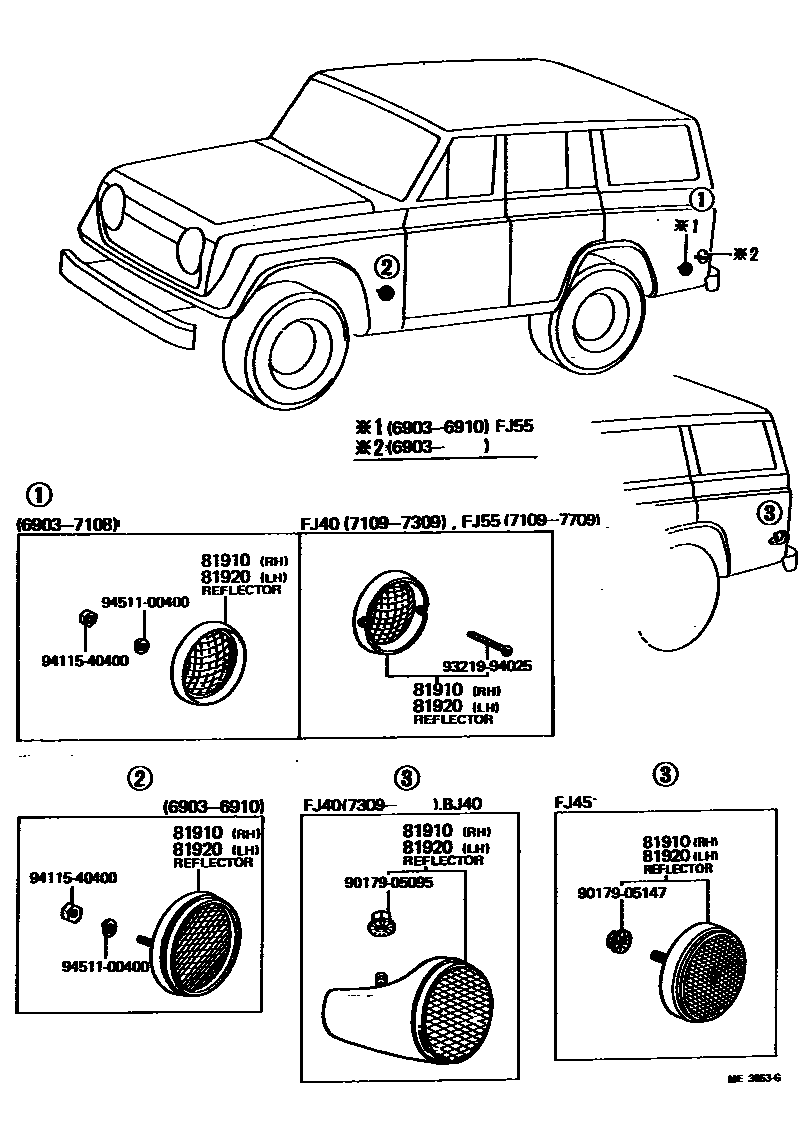

Toyota LAND CRUISER — REFLEX REFLECTOR

81910REFLECTOR ASSY, REFLEX, RH

main81590-60011i196903-196910

FRONT SIDE

main81590-60031i196903-196910

FRONT SIDE

main81910-39055i197606-197901

FOR REAR

main81910-39056i197901-198007

FOR REAR

main81910-60031i196903-197111

FOR REAR

main81910-60032i197111-197709

FOR REAR

main81910-60041i196903-196910

REAR SIDE

main81910-60061i196903-197309

FOR REAR

main81910-69025i197309-197901

FOR REAR

main81910-69026i197901-198007

FOR REAR

81920REFLECTOR ASSY, REFLEX, LH

main81590-60021i196903-196910

FRONT SIDE

main81590-60031i196903-196910

FRONT SIDE

main81910-39055i197606-197901

FOR REAR

main81910-39056i197901-198007

FOR REAR

main81910-60031i196903-197111

FOR REAR

main81910-60032i197111-197709

FOR REAR

main81910-60051i196903-196910

REAR SIDE

main81910-60061i196903-197309

FOR REAR

main81910-69025i197309-197901

FOR REAR

main81910-69026i197901-198007

FOR REAR

9017905095

main90179-05095

9017905147

main90179-05147

9321994025

main93219-94025

9411540400

main94115-40400

9451100400

main94511-00400

7 parts on this diagram · 1 diagram in section

REFLEX REFLECTOR for Toyota LAND CRUISER

This section contains 7 genuine Toyota parts for the REFLEX REFLECTOR system of the Toyota LAND CRUISER. Key components include: REFLECTOR ASSY, REFLEX, RH, REFLECTOR ASSY, REFLEX, LH.
