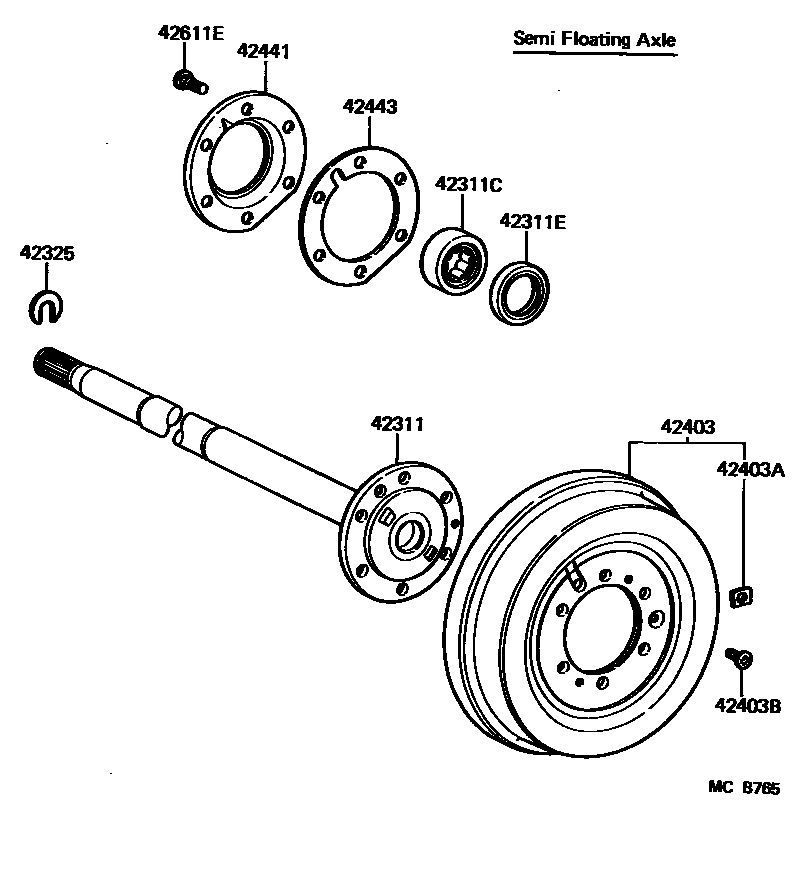

Toyota LAND CRUISER — REAR AXLE SHAFT & HUB

42311SHAFT, REAR AXLE

main42311-60060i198411-198707

main42312-60070i198411-198707

42311CBEARING(FOR REAR AXLE SHAFT)

main90365-47013×2i198411-198707

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90311-47001×2i198411-198707

42325LOCK, REAR AXLE SHAFT

main42325-55010×2i198411-198707

42403DRUM SUB-ASSY, REAR BRAKE

main42431-60020×2i198411-198707

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117i198411-198707

10G,10G

main90937-01118i198411-198707

20G,20G

main90937-01119i198411-198707

30G,30G

main90937-01120i198411-198612

40G,40G

main90937-01121i198411-198707

50G,50G

main90937-01122i198411-198707

60G,60G

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10003×2i198411-198707

42441DEFLECTOR, BRAKE DRUM OIL

main42441-30010×2i198411-198707

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-55020×2i198411-198707

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02052×12i198411-198707

10 parts on this diagram · 1 diagram in section

REAR AXLE SHAFT & HUB for Toyota LAND CRUISER

This section contains 10 genuine Toyota parts for the REAR AXLE SHAFT & HUB system of the Toyota LAND CRUISER. Key components include: SHAFT, REAR AXLE, BEARING(FOR REAR AXLE SHAFT), SEAL, OIL(FOR REAR AXLE SHAFT OUTER), LOCK, REAR AXLE SHAFT, DRUM SUB-ASSY, REAR BRAKE.
