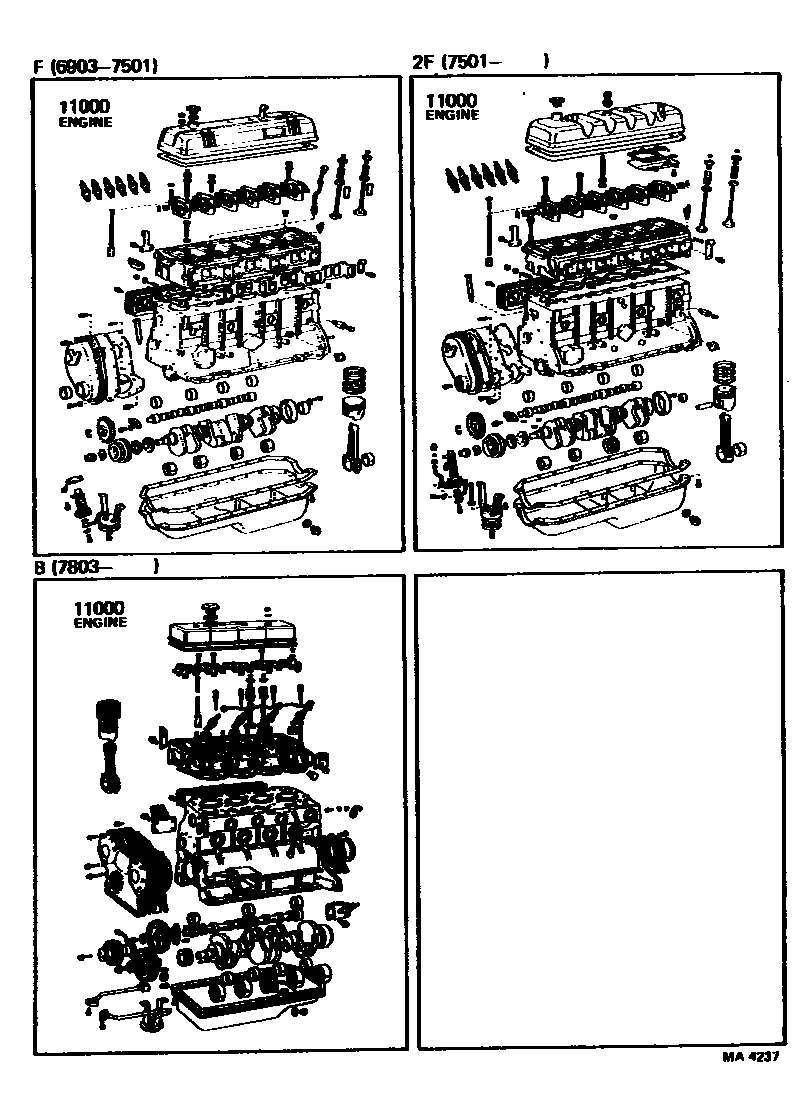

Toyota LAND CRUISER — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-56021iB..BJ40197803-197811

main19000-56022iB..BJ40197811-197901

main19000-56070iB..BJ40197901-198004

sub19000-56015

sub12311-56010

sub12315-87304

main19000-56071iB..BJ40198004-198007

sub19000-56015

main19000-60051iF..FJ55196906-197203

sub19000-60052

sub11201-60915

main19000-60080iF..FJ55196903-196906

main19000-60081iF..FJ55197204-197209

main19000-60090iF..FJ40196903-196906

main19000-60091iF..FJ40196906-197209

sub19000-60012

main19000-60110iF..FJ40,55197209-197309

sub15600-41010

sub15609-60011

sub15691-60010

sub17700-60305

sub23100-60062

sub90119-08132

sub90445-18473

sub90461-10853

sub90467-18028

sub90467-24038

sub90910-05036

sub90923-05003

sub91611-40825

main19000-60112iF..FJ40,55197309-197501

main19000-61020i2F..FJ40,55197501-197601

main19000-61021i2F..FJ40,55197601-197602

main19000-61022i2F..FJ40,55..USA197608-198007

sub19000-61023

sub90101-10132

sub90101-10133

sub91612-61040

sub92112-61028

main19000-61031i2F..FJ4#,55..CND197602-197608

main19000-61032i2F..FJ4#,55..CND197608-198007

sub19000-61033

sub90101-10132

sub90101-10133

sub91612-61040

sub92112-61028

1 parts on this diagram · 1 diagram in section
