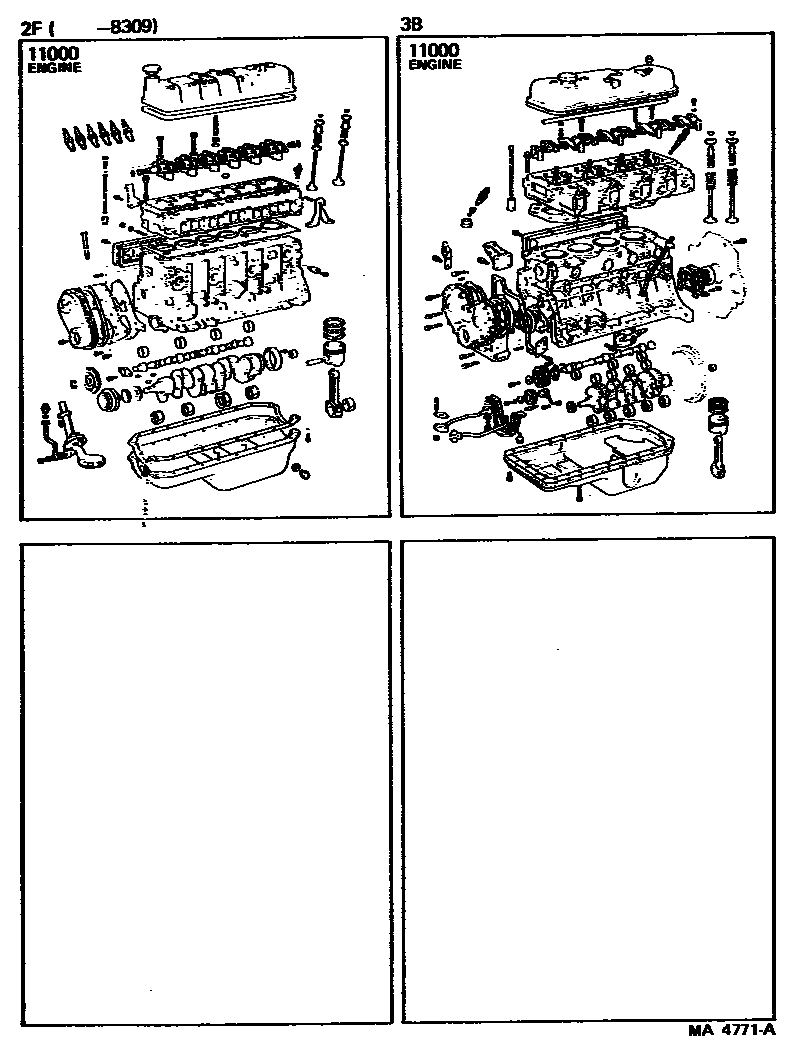

Toyota LAND CRUISER — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-58010i3B..BJ42198008-198201

sub22177-56042

sub22811-56011

sub90179-08161

sub91611-41014

main19000-58011i3B..BJ42198201-198209

main19000-58012i3B..BJ42198209-198408

sub19000-58080

main19000-58340i3B..BJ42198408-198410

sub19000-58370

main19000-61200i2F..FJ40..CND198008-198110

sub19000-61201

sub90101-10132

sub90101-10133

sub91612-61040

sub92112-61028

main19000-61210i2F..FJ40..USA198008-198309

sub19000-61211

sub90101-10132

sub90101-10133

sub91612-61040

sub92112-61028

1 parts on this diagram · 1 diagram in section
