Toyota LAND CRUISER — PARTIAL ENGINE ASSEMBLY

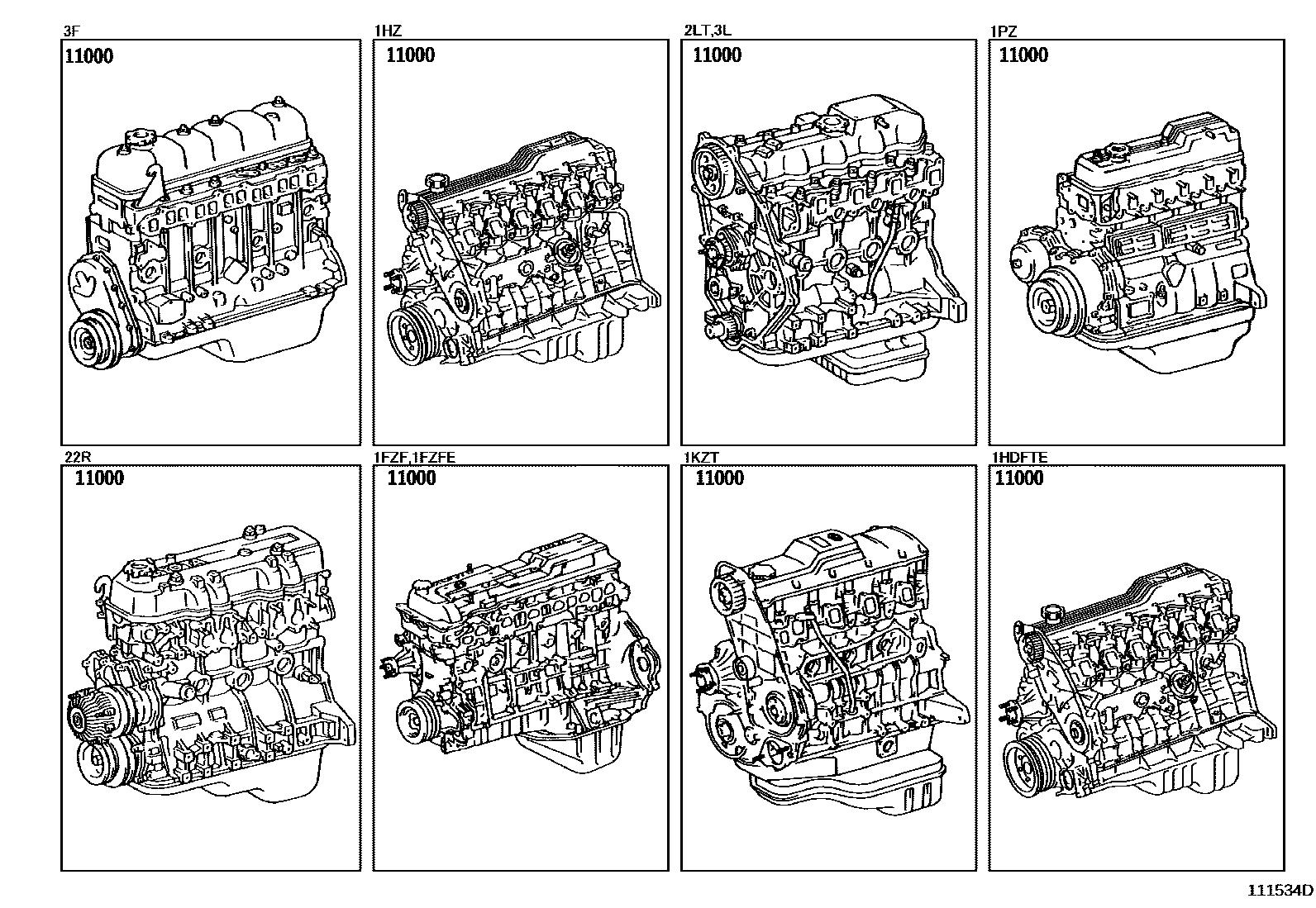

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-17070i199001-199208
W(POWER STEERING & FRONT HEATER)
main19000-17071i199208-199305
W(POWER STEERING & FRONT HEATER)
sub91622-G1014
main19000-17072i199411-199705
W(POWER STEERING & FRONT HEATER)
sub90345-52003
main19000-17073i199705-199801
W(POWER STEERING & FRONT HEATER)
main19000-17074i199801-199805
W(POWER STEERING & FRONT HEATER)
main19000-17080i199001-199208
W(FRONT HEATER)
main19000-17081i199305-199411
W(FRONT HEATER)
sub91622-G1014
main19000-17082i199411-199705
W(FRONT HEATER)
sub90345-52003
main19000-17083i199705-199801
KENYA SPEC
main19000-17084i199801-199805
W(FRONT HEATER)
main19000-17090i199001-199208
W(POWER STEERING)
main19000-17091i199305-199411
W(POWER STEERING)
sub91622-G1014
main19000-17092i199411-199705
W(POWER STEERING)
sub90345-52003
main19000-17093i199705-199801
W(POWER STEERING)
main19000-17094i199801-199805
W(POWER STEERING)
main19000-17100i199001-199208
main19000-17101i199305-199411
sub91622-G1014
main19000-17102i199411-199705
sub90345-52003
main19000-17103i199705-199801
main19000-17104i199801-199805
main19000-17230i199208-199305
sub91622-G1014
main19000-17231i199411-199705
sub90345-52003
main19000-17232i199705-199801
main19000-17233i199801-199805
main19000-17300i199305-199411
W(REAR HEATER)
sub91622-G1014
main19000-17301i199411-199705
W(FRONT HEATER & REAR HEATER)
sub90345-52003
main19000-17302i199705-199801
W(FRONT HEATER & REAR HEATER)
main19000-17303i199801-199805
W(FRONT HEATER & REAR HEATER)
main19000-17310i199001-199305
W(POWER STEERING & REAR HEATER)
sub91622-G1014
main19000-17311i199411-199705
W(POWER STEERING & FRONT & REAR HEATER)
sub90345-52003
main19000-17312i199705-199801
W(POWER STEERING & FRONT & REAR HEATER)
main19000-17313i199801-199805
W(POWER STEERING & FRONT & REAR HEATER)
main19000-17710i199805-199908
main19000-17720i199805-199911
W(POWER STEERING)
sub19000-17A91
main19000-17740i199805-200007
MALAYSIA SPEC
main19000-17750i199805-199908
W(FRONT HEATER) & W/O(POWER STEERING)
main19000-17760i199805-199908
W(FRONT HEATER & POWER STEERING)
sub19000-17B01
main19000-17770i199805-199908
W(FRONT & REAR HEATER) & W/O(POWER STEERING)
main19000-17780i199805-199908
W(FRONT & REAR HEATER & POWER STEERING)
main19000-17890i199908-200108
main19000-17910i200108-200701
sub19000-17A81
main19000-17B10i200404-200701
W(FR + RR HEATER)
main19000-17B20i200404-200701
W(HIGH ALTITUDE COMPENSATOR)
sub19000-17B21
main19000-17B40i200207-200701
main19000-17B50i200404-200701
PNG SPEC
main19000-17B60i200404-200701
SPEEDMETER LOW GRADE KM/H
main19000-18110i199001-199208
main19000-18111i199208-199305
main19000-18120i199001-199208
W(POWER STEERING)
main19000-18121i199208-199305
W(POWER STEERING)
main19000-18130i199001-199108
main19000-18131i199208-199305
W(POWER STEERING & FRONT HEATER)
main19000-18140i199001-199208
W(POWER STEERING & REAR HEATER)
main19000-18141i199208-199305
W(POWER STEERING & REAR HEATER)
main19000-18190i199001-199208
W(FRONT HEATER)
main19000-18191i199305-199401
W(FRONT HEATER)
main19000-18200i199001-199208
W(REAR HEATER)
main19000-18201i199208-199305
W(REAR HEATER)
main19000-35341i199305-199401
main19000-35372i199001-199108
main19000-5B170i199001-199208
main19000-5B180i199305-199604
main19000-5B240i199208-199305
main19000-61390i199001-199208
main19000-61400i199001-199208
W/O(EX.EMISSION CONTROL)
main19000-61410i199001-199208
EX.EMISSION CONTROL(LOW OCTANE)
main19000-66020i199305-199501
EX.EMISSION CONTROL(LOW OCTANE)
sub12315-66022
sub82123-60111
sub90910-09075
main19000-66021i199711-199801
CHINESE OR LOW OCTANE SPEC
sub11409-66030
sub15301-66020
sub16210-66020
main19000-66022i199801-199908
CHINESE OR LOW OCTANE SPEC
main19000-66030i199201-199305
sub12315-66022
sub82123-60111
sub90910-09075
main19000-66031i199711-199801
sub11409-66030
sub15301-66020
sub16210-66020
main19000-66032i199801-199908
main19000-66070i199305-199711
sub12315-66022
sub82123-60111
sub90910-09075
main19000-66071i199711-199801
sub11409-66030
sub15301-66020
sub16210-66020
main19000-66072i199801-199908
main19000-66090i199709-199711
sub12315-66022
sub82123-60111
sub90910-09075
main19000-66091i199711-199801
sub11409-66030
sub15301-66020
sub16210-66020
main19000-66092i199801-200405
main19000-66110i199908-200701
sub19000-66120
main19000-66130i199908-200605
main19000-67030i199305-199505
sub90345-52001
sub90404-52004
main19000-67031i199505-199604
sub19000-67032
sub91619-61250
sub94130-61200

1 parts on this diagram · 1 diagram in section
