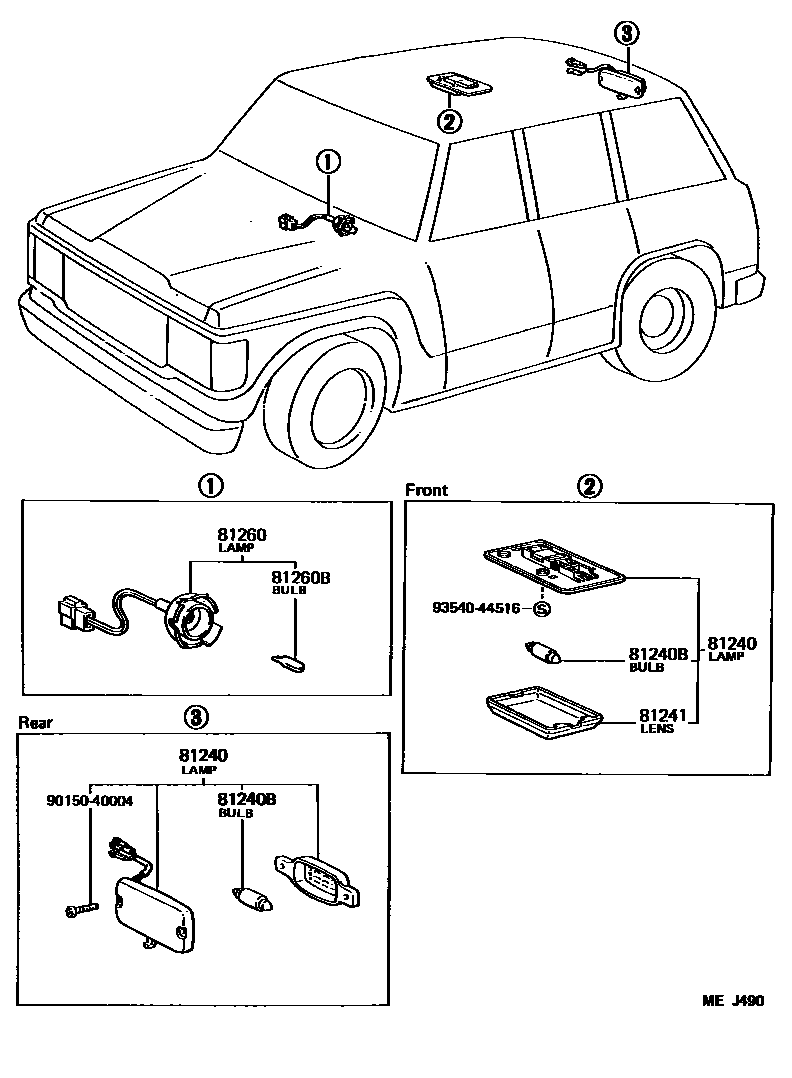

Toyota LAND CRUISER — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-22070-08i198708-199001

IVORY,TRIM1#,4#,FRONT

main81240-95A16i198708-199001

REAR

81240BBULB, ROOM LAMP, NO.1

main90981-11004i198708-199001

12V 10W,REAR

main99132-12100i198708-199001

12V 10W,FRONT

81241LENS, ROOM LAMP, NO.1

main81241-20060i198708-199001

81260LAMP ASSY, GLOVE BOX

main81260-22030i198708-198808

81260BBULB(FOR GLOVE BOX)

main90981-11018i198708-198808

12V 1.2W W/O SOCKET

9015040004

main90150-40004

9354044516

main93540-44516

7 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota LAND CRUISER

This section contains 7 genuine Toyota parts for the INTERIOR LAMP system of the Toyota LAND CRUISER. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, GLOVE BOX, BULB(FOR GLOVE BOX).
