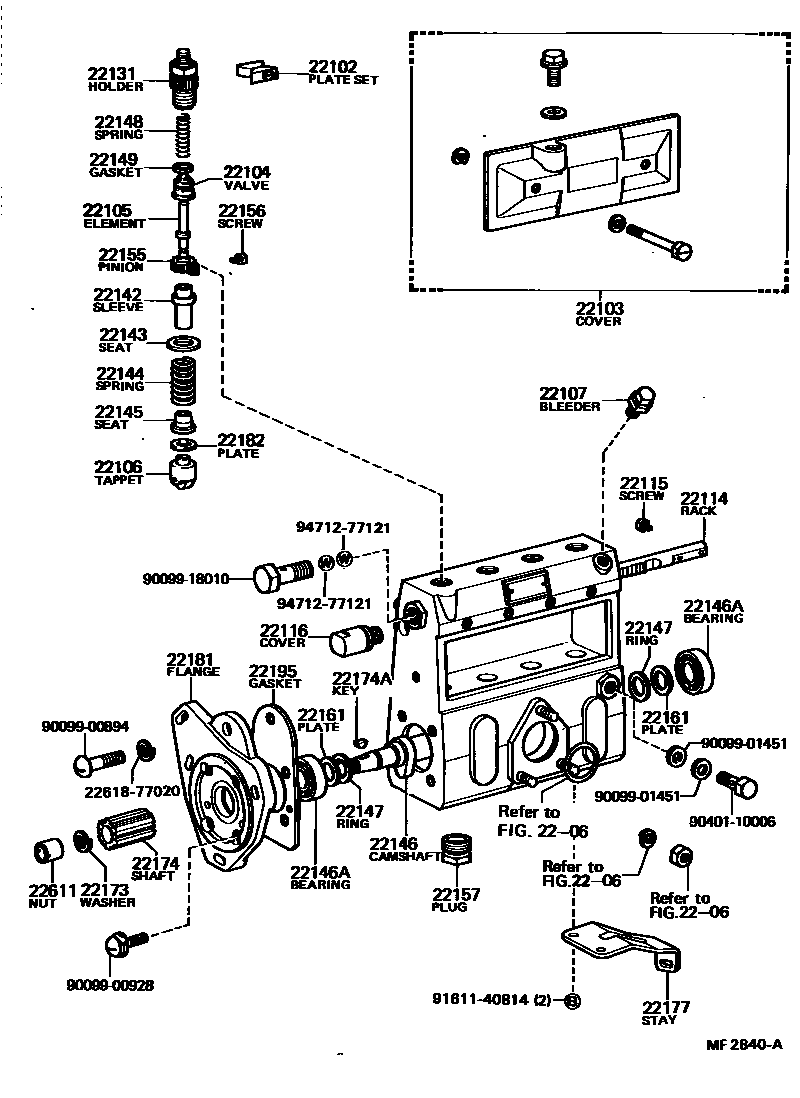

Toyota LAND CRUISER — INJECTION PUMP BODY
2206FUEL FEED PUMP
22102PLATE SET, VALVE HOLDER LOCK
22103COVER SUB-ASSY, INJECTION PUMP
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22105ELEMENT SUB-ASSY, INJECTION PUMP
22106TAPPET SUB-ASSY, INJECTION PUMP
22107BLEEDER SUB-ASSY, AIR
22114RACK, CONTROL
22115SCREW, RACK GUIDE
22116COVER, CONTROL RACK
22131HOLDER, DELIVERY VALVE
22142SLEEVE, PLUNGER CONTROL
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146CAMSHAFT, INJECTION PUMP
22146ABEARING(FOR INJECTION CAMSHAFT)
22147RING, CAMSHAFT ADJUST
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22155PINION, PLUNGER CONTROL
22156SCREW, PLUNGER CONTROL PINION CLAMP
22157PLUG, INJECTION PUMP FELT PLATE
22161PLATE, CAMSHAFT SHIM
T=0.10,T=0.10
T=0.12,T=0.12
T=0.14,T=0.14
T=0.16,T=0.16
T=0.18,T=0.18
T=0.50,T=0.50
22173WASHER, SPRING
22174SHAFT, SPLINE
22174AKEY(FOR SPLINE SHAFT)
22177STAY, INJECTION PUMP BODY
22181FLANGE, INJECTION PUMP
22182PLATE, TAPPET ADJUSTING SHIM
T=0.10,T=0.1
T=0.20,T=0.2
T=0.30,T=0.3
T=0.40,T=0.4
T=0.50,T=0.5
T=0.15,T=0.15
T=0.60,T=0.6
T=0.70,T=0.7
T=0.80,T=0.8
T=0.90,T=0.9
T=1.00,T=1.0
T=1.10,T=1.1
T=1.20,T=1.2
T=1.30,T=1.3
T=1.40,T=1.4
22195GASKET, BEARING COVER
22611NUT, TIMER ROUND
2261877020GASKET, TIMER SCREW
main22618-77020
9009900894
main90099-00894
9009900928
main90099-00928
9009901451
main90099-01451
9009918010
main90099-18010
9040110006
main90401-10006
9161140814
main91611-40814
9471277121
main94712-77121
40 parts on this diagram · 1 diagram in section
INJECTION PUMP BODY for Toyota LAND CRUISER
This section contains 40 genuine Toyota parts for the INJECTION PUMP BODY system of the Toyota LAND CRUISER. Key components include: FUEL FEED PUMP, PLATE SET, VALVE HOLDER LOCK, COVER SUB-ASSY, INJECTION PUMP, VALVE SUB-ASSY, INJECTION PUMP DELIVERY, ELEMENT SUB-ASSY, INJECTION PUMP.
