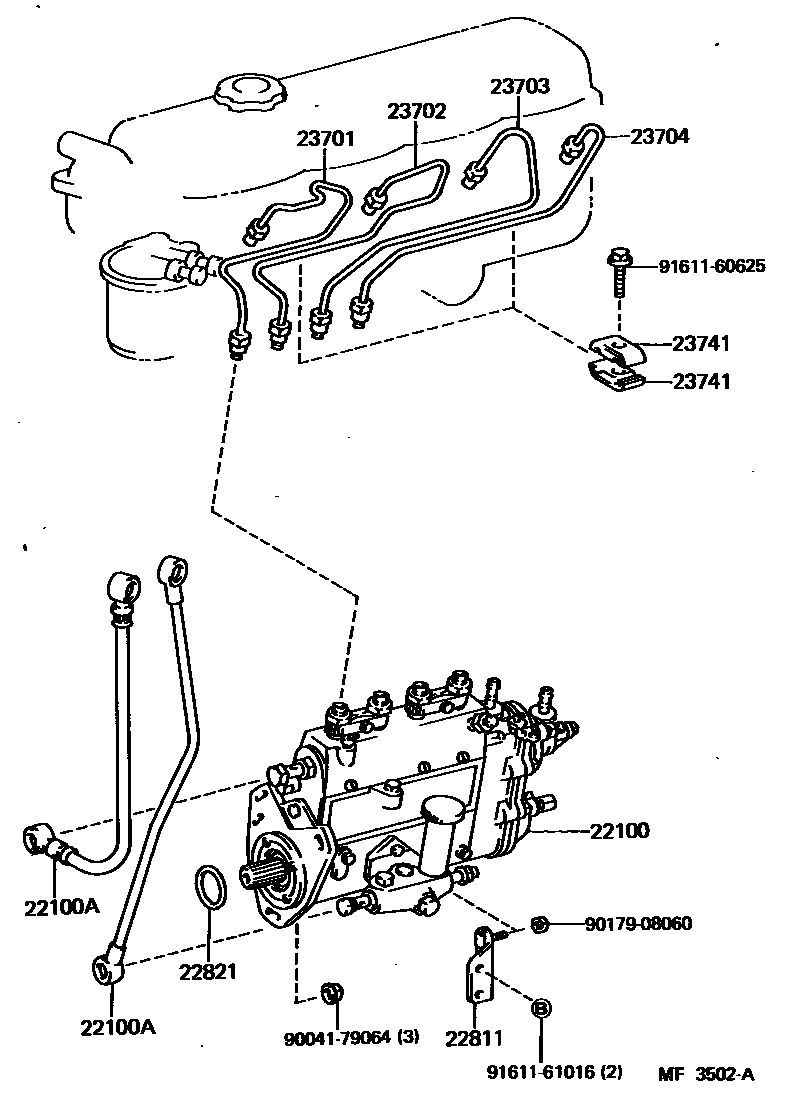

Toyota LAND CRUISER — INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-58022i198608-198707

main22100-58032i198411-198608

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23801-56060i198411-198707

PIPE L=300

main23802-56040i198411-198707

HOSE L=210

22811STAY, INJECTION PUMP, NO.1

main22811-56011i198411-198707

22821GASKET, INJECTION PUMP

main90301-77001i198411-198707

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-56030i198411-198707

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-56030i198411-198707

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-56020i198411-198707

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-56020i198411-198707

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010×4i198411-198707

9004179064

main90041-79064

9017908060

main90179-08060

9161160625

main91611-60625

9161161016

main91611-61016

13 parts on this diagram · 1 diagram in section

INJECTION PUMP ASSEMBLY for Toyota LAND CRUISER

This section contains 13 genuine Toyota parts for the INJECTION PUMP ASSEMBLY system of the Toyota LAND CRUISER. Key components include: PUMP ASSY, INJECTION OR SUPPLY, HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER), STAY, INJECTION PUMP, NO.1, GASKET, INJECTION PUMP, PIPE SUB-ASSY, INJECTION, NO.1.
