E
EPC Data

Toyota LAND CRUISER — INDICATOR

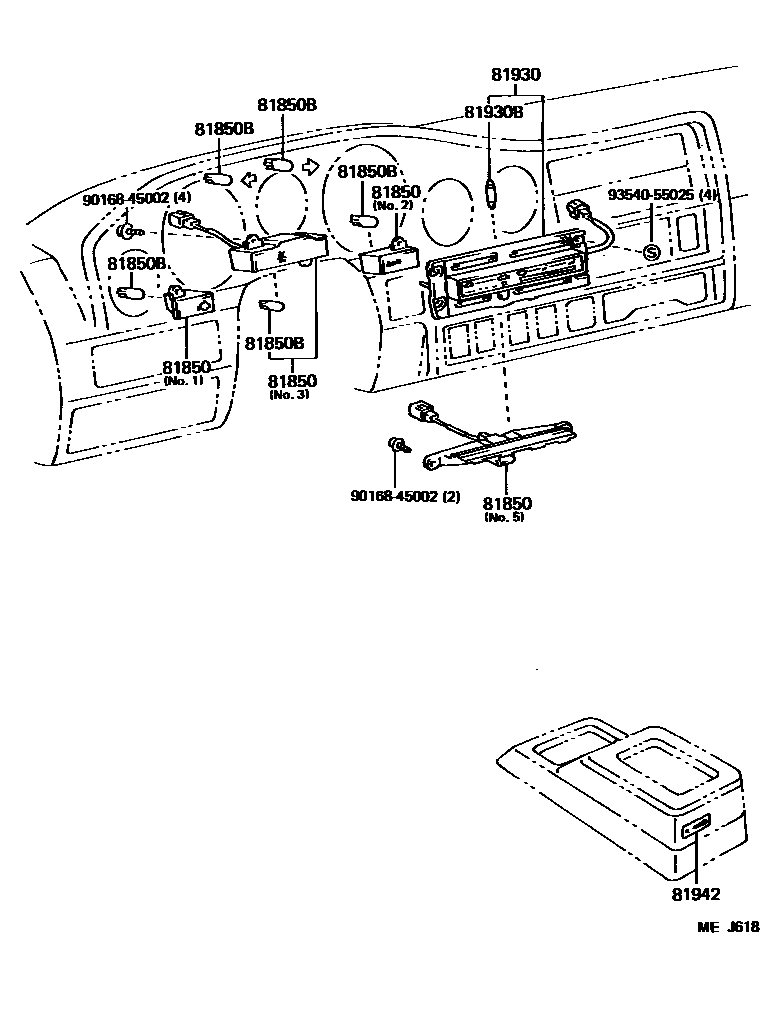

Parts diagram
81850LAMP ASSY, INDICATOR
main81850-90A14i198708-199001
NO.3
main81850-90A15i198708-199001
W(DIFFERENTIAL LOCK),NO.3
main81850-90A25i198708-199001
NO.2
main81850-90A31i198708-199001
NO.5
main81850-90A35i198708-199001
NO.1
81850BBULB, INDICATOR LAMP
main99132-12034i198708-199001
12V 3.4W
81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
main81930-90A10i198708-199001
main81930-90A15i198708-199001
W(AIR CONDITIONER)
81930BBULB, HEATER CONTROL INDICATOR LAMP
main90981-11010i198708-199001
12V 2W
81942SHEET, HEATER CONTROL NAME
main86995-90A02i198708-199001
9016845002
main90168-45002
9354055025
main93540-55025

7 parts on this diagram · 1 diagram in section

INDICATOR for Toyota LAND CRUISER

This section contains 7 genuine Toyota parts for the INDICATOR system of the Toyota LAND CRUISER. Key components include: LAMP ASSY, INDICATOR, BULB, INDICATOR LAMP, LAMP ASSY, HEATER CONTROL INDICATOR, NO.1, BULB, HEATER CONTROL INDICATOR LAMP, SHEET, HEATER CONTROL NAME.
